Hi -
I'm tryint to display a tooltip on an MVC chart to display additional data about a series. Basically, I have a model that contains some stats about transactions in our system. The model has the following properties: "Total", "Max", "Min", "Count". I want to user the "Total" property as the series value, but want to also display the "Min, Max and Count" in the tooltip. How can I access the model my chart is bound to from the tooltip. Is this possible or Am I looking at this the wrong way?

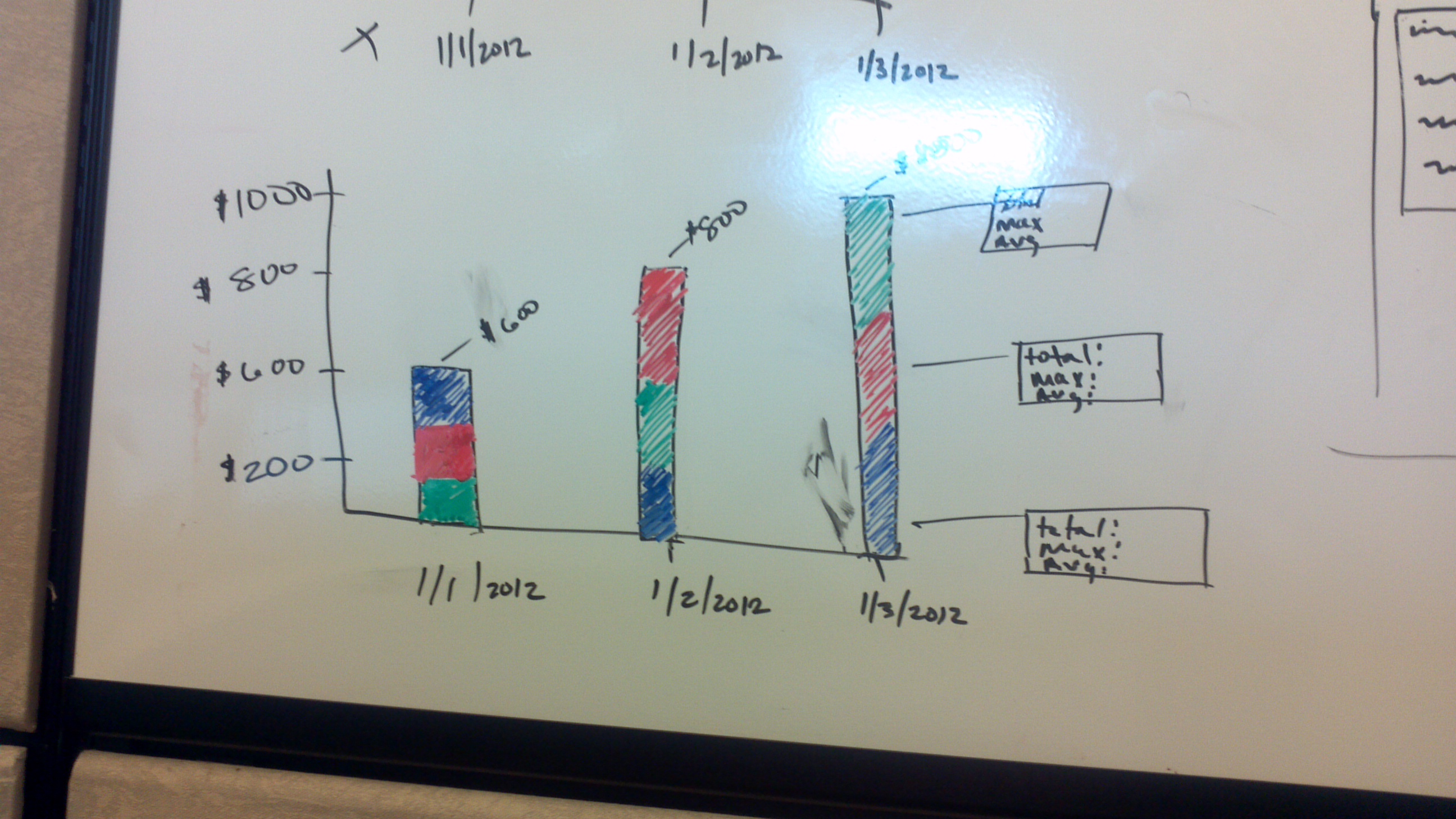

I've attached an image (picture) of what I'm trying to achieve as well as a zip with the model and the view.
Thanks,
Danny
I'm tryint to display a tooltip on an MVC chart to display additional data about a series. Basically, I have a model that contains some stats about transactions in our system. The model has the following properties: "Total", "Max", "Min", "Count". I want to user the "Total" property as the series value, but want to also display the "Min, Max and Count" in the tooltip. How can I access the model my chart is bound to from the tooltip. Is this possible or Am I looking at this the wrong way?
I've attached an image (picture) of what I'm trying to achieve as well as a zip with the model and the view.
Thanks,
Danny
1 Answer, 1 is accepted
0
Hello Danny,
I hope this helps.
Kind regards,
Iliana Nikolova
the Telerik team
In order to achieve the described functionality for the Chart widget you need to use AJAX binding. Then you could customize the text in the tooltip via dataItem variable in the template. For example:
tooltip.Template("This is a test and the value is <#= dataItem.Min #> <br/> <#= dataItem.Max #> <br/> <#= dataItem.Count #>")I hope this helps.
Kind regards,
Iliana Nikolova
the Telerik team
