Timebar Rendering Issue in RadWindow and TileView

[Vijay]

Hi,

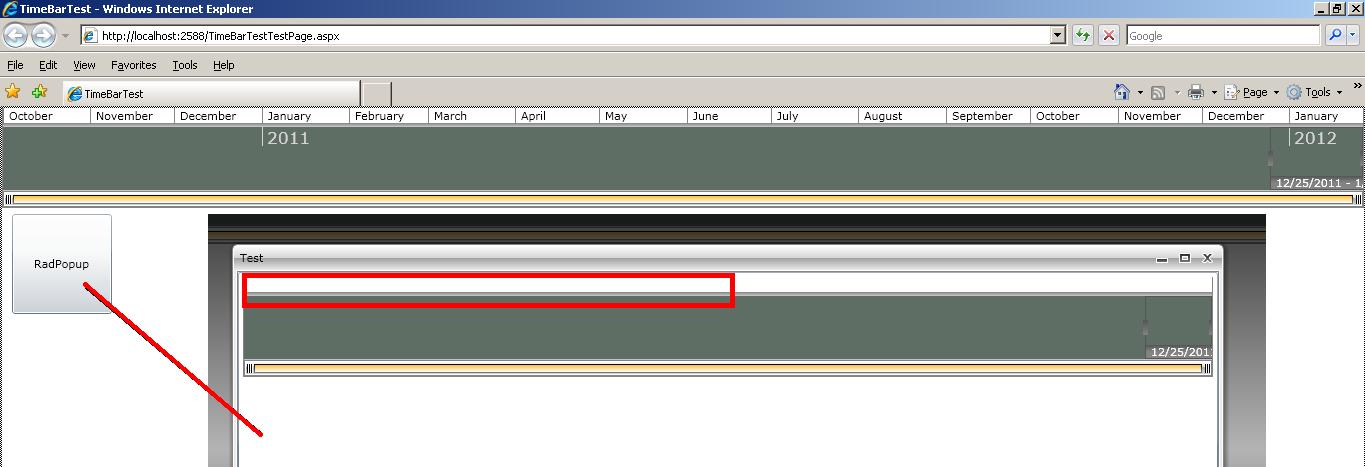

when i Place the time bar in the Rad popup window/Tile view then headers for the Timebar are not rendering.please see the screen shot and the code i used.

in the main.xaml i am opening the timebar  as a popup using the radwindow it is not rendering Headers


in Main.xaml
<UserControl x:Class="TimeBarTest.MainPage"
             xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    d:DesignHeight="300" d:DesignWidth="400">


    <Grid x:Name="LayoutRoot" Background="White">
        <telerik:RadTimeBar x:Name="timebarForweekchart"  IsSnapToIntervalEnabled="True" Background="#FF5E6E65"  Height="100" VerticalAlignment="Top"

                            PeriodStart="10/1/2010"
            PeriodEnd="1/27/2012"
            SelectionStart="12/25/2011"
            SelectionEnd="1/27/2012"
            MinSelectionRange="2.00:00:00"
            MaxSelectionRange="90.00:00:00">
            <telerik:RadTimeBar.Intervals>
                <telerik:YearInterval  />
                <telerik:MonthInterval />
                <telerik:WeekInterval />
                <telerik:DayInterval />
            </telerik:RadTimeBar.Intervals>
        </telerik:RadTimeBar>
        <Button x:Name="Popup"  Click="Popup_Click"  Content="RadPopup" Width="100" Height="100"/>
    </Grid>
</UserControl>

in main.xaml.cs
    private void Popup_Click(object sender, RoutedEventArgs e)
        {
            RadWindow window = new RadWindow();
            ScrollViewer scrol = new ScrollViewer();
            scrol.HorizontalScrollBarVisibility = ScrollBarVisibility.Auto;
            scrol.VerticalScrollBarVisibility = ScrollBarVisibility.Auto;
            scrol.HorizontalAlignment = System.Windows.HorizontalAlignment.Stretch;
            scrol.Content = new Timebar();
            window.Content = scrol;
            window.Header = "Test ";
            window.Height = 500;
            window.Width = 1000;
            window.WindowStartupLocation = Telerik.Windows.Controls.WindowStartupLocation.CenterOwner;
            window.ShowDialog();
        }

in Time bar.xaml

<UserControl xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"  x:Class="TimeBarTest.Timebar"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    d:DesignHeight="300" d:DesignWidth="400">
    <telerik:RadTimeBar x:Name="timebarForweekchart"  IsSnapToIntervalEnabled="True" Background="#FF5E6E65"  Height="100" VerticalAlignment="Top"

                            PeriodStart="10/1/2010"
            PeriodEnd="1/27/2012"
            SelectionStart="12/25/2011"
            SelectionEnd="1/27/2012"
            MinSelectionRange="2.00:00:00"
            MaxSelectionRange="90.00:00:00">
        <telerik:RadTimeBar.Intervals>
            <telerik:YearInterval  />
            <telerik:MonthInterval />
            <telerik:WeekInterval />
            <telerik:DayInterval />
        </telerik:RadTimeBar.Intervals>
    </telerik:RadTimeBar>
</UserControl>




Thanks,
RK

[Petar Kirov]

Hi,

The problem you are observing is that when the TimeBar doesn't have its Width/Height set to a specific value it determines it from its parent control. But in this case the parent control of the TimeBar is a ScrollViewer. When the Horizontal/VerticalScrollBarVisibility is enabled (set to Auto, Visible or Hidden) the ScrollViewer tries to calculate the Width/Height of its children, so it can set its ScrollBar(s) to the correct size. This causes an infinite layout cycle.

I suspect that you are using a version prior to 2012 Q2 SP1, because with this version a LayoutCycleException is thrown. I tested it also with 2012 Q1 and reproduced the issue.

My suggestion are:

• Either set explicitly the Width and Height of your TimeBar when they are in ScrollViewer or
• Put the the TimeBar directly in a RadWindow (in case the built-in ScrollBar of the TimeBar is sufficient)
• Always use the latest version of our controls - apart from new features they also contain bug fixes.

Kind regards,
Petar Kirov
the Telerik team
