Time interval lines in Week view and Day view

[Srikanta]

Hello,

I've  a probelm in my scheduleview control. By default the time ruler is showing as 30 mins in day and week view, I changed it to 15mins interval using below code.

SnapAppointments





="True"



and set

MinorTickLength





="15min"



 in day view as well as week view. It is working fine for me. But the client is expecting not to show the 15mins gap time ruler lines but internally it should work as 15 mins interval. Is there any way to disable the timeruler line ?

Note :- Just wanted to disable horizontal markers for :15 and :45 .

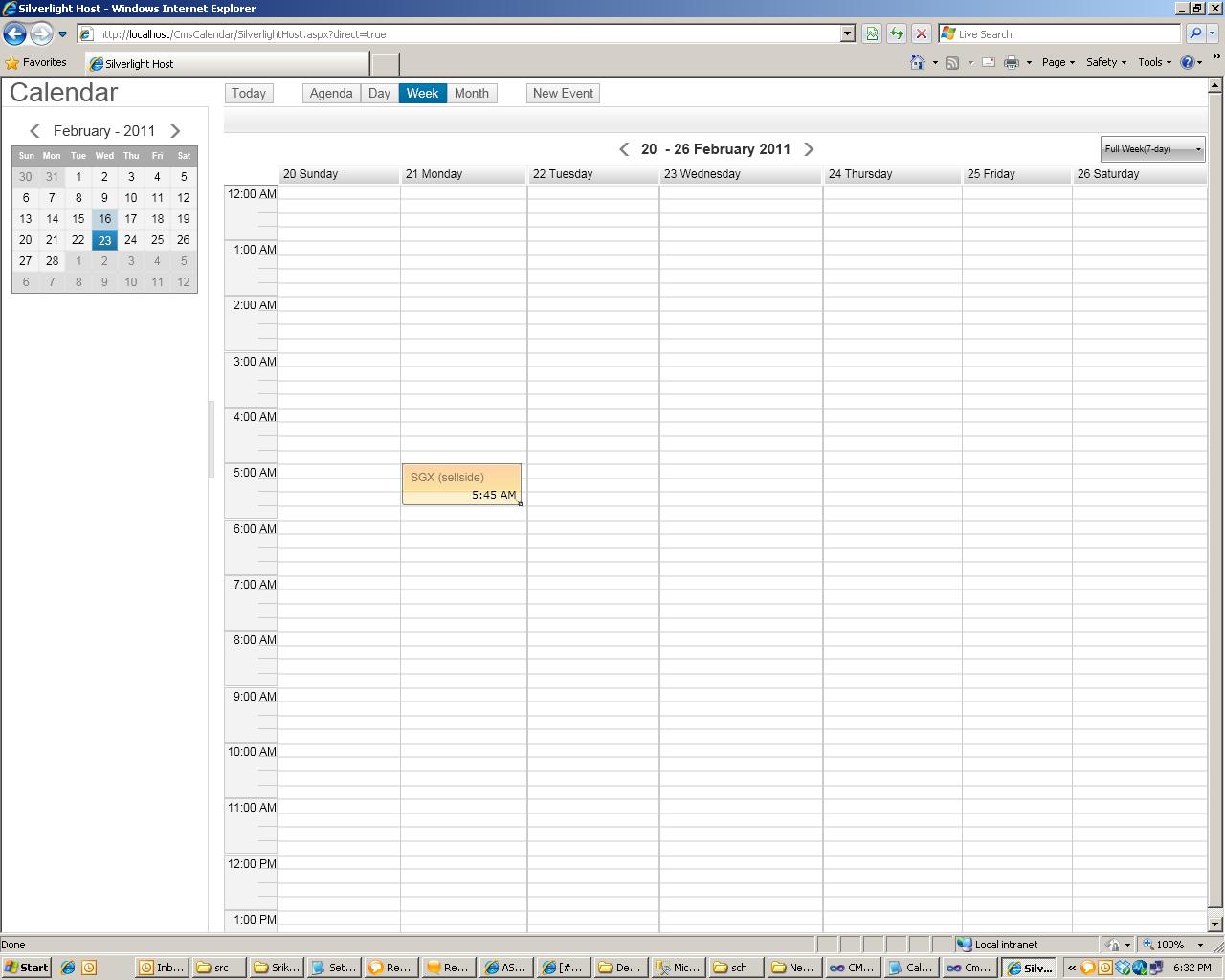

Attached a screen shot for your referance.


Thanks in advance.


Srikanta

[Konstantina]

Hi Srikanta,

There are various properties you can use to customize the TimeRuler to fit best your requirements. You can use the TimeRulerItemStyleSelector property of the ScheduleView to customize the lines of the TimeRuler. You can find an example in this online demo. Also, you can use the TimerulerMajorTickStringFormat and TimerulerMinorTickStringFormat to set the format in which the time will be displayed. Also, you can use the MinTimeRulerExtent and MaxTimeRulerExtent to set the height of the TimeRuler. More information about these properties can be found here.
You can find more information about styling the TimeRuler in this help article.

Hope this information helps. Please let us know if you have further questions.

Kind regards,
Konstantina
the Telerik team
