Strange Behavior when minimum is set

8 Answers 123 Views

ChartView

This is a migrated thread and some comments may be shown as answers.

This question is locked. New answers and comments are not allowed.

Geoffrey asked on 25 Jan 2012, 09:14 PM


I've noticed some strange behavior with the chart view control. If you set a minimum for the x-axis (in my case DateTimeContinuousAxis) but your data sets go out further the control seems to draw an arbitrary line off the edge of the graph even if the data doesn't support it.

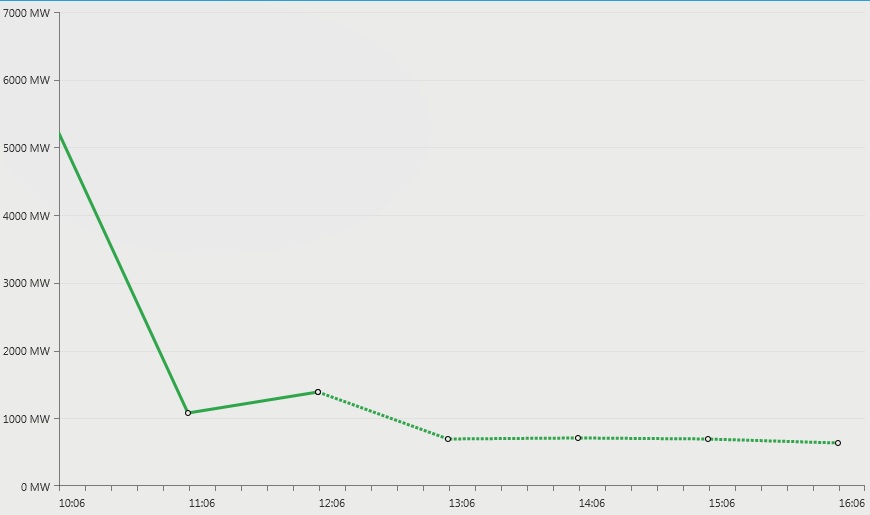

I've included a screen shot of this. In this example the point that is just off the left of the screen actually has a value of just under 1000, yet the control draws a line up to 5000. Any idea why this is? I want to draw a line towards where the point is, but just need it to be accurate!
Thanks,
Geoff

8 Answers, 1 is accepted

answered on 02 Mar 2012, 07:57 AM

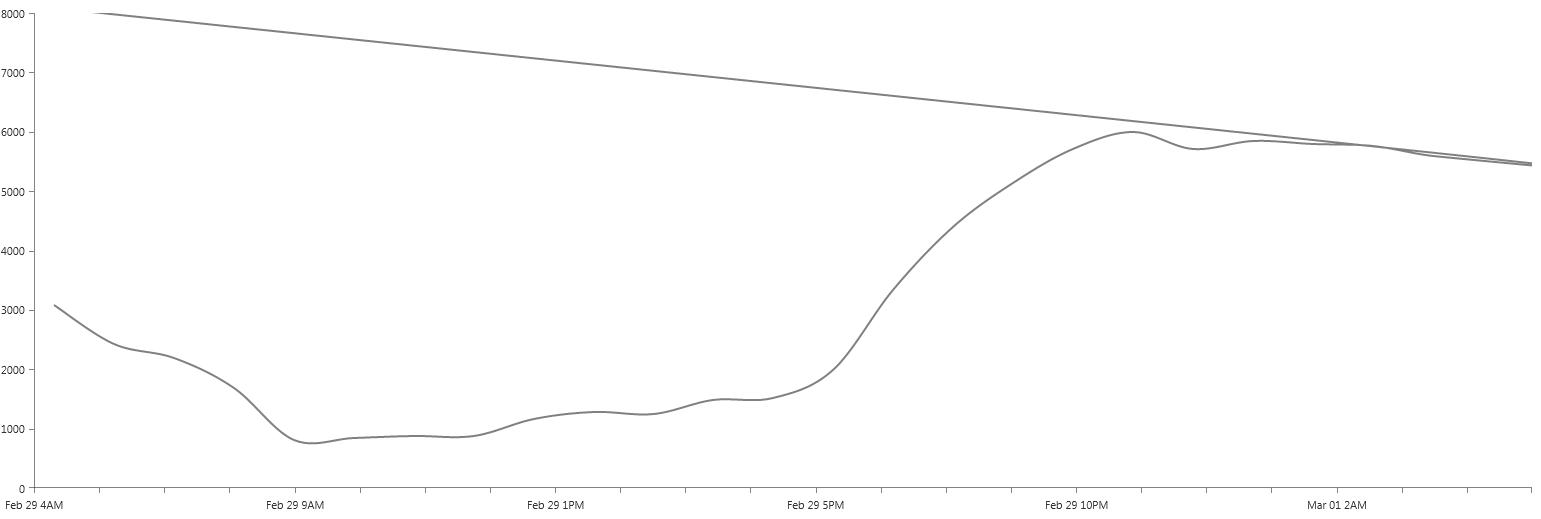

This may be related or it may be another issue altogether, but I often see this strange error where it's drawing lines from the top left to the end point of the line series forming some weird shapes. Any idea what causes this or how to fix this? If it helps, the series are bound to a large collection of data that exceeds the limits of the x-axis. The x-axis has binding for both the minimum and maximum restricting the bounds.
