Spline Area and (Stacked)Bar charts not drawn correctly

[Steven Hillaert]

Hi,

I have the following issues with the drawing of these chart types:

• Spline Area:

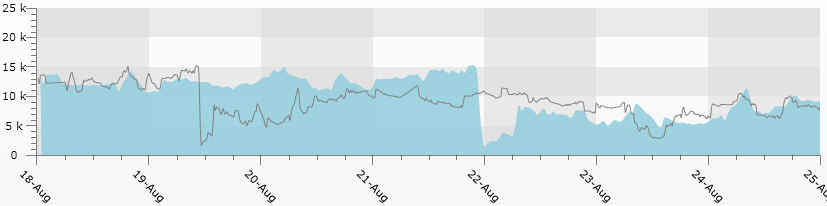

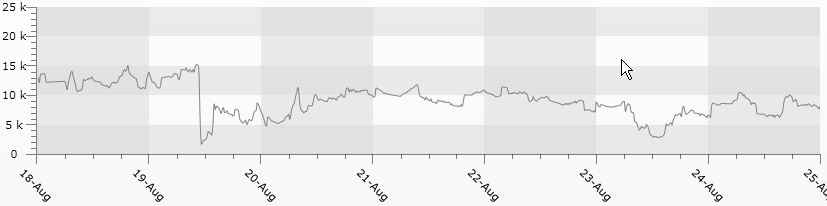

  With certain data the spline area is not being filled, only the gray line is shown (screenshot 1). When I stretch the window over the full width of 2 screens then it's shown correctly so I think it has something to do with the amount of points to be plotted and the available width. When I resize it back to 1 screen then the "filling" is still show but doesn't correspond with the line (screenshot 2)
• (Stacked)Bar:

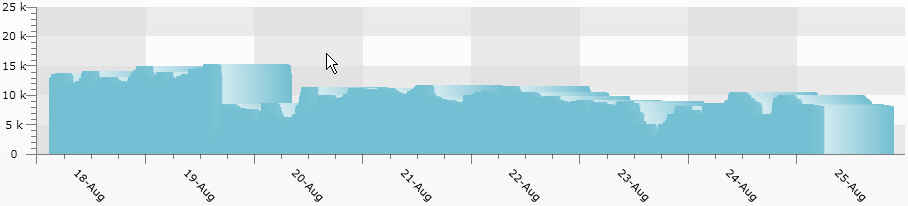

  With certain data I get a "3d" bar chart, stretching over multiple monitors doesn't help in this case (screenshot 3). Also, the postion of the labels on the X-axis has shifted to the right.





Regards,
Steven Hillaert

[Yavor]

Hi Steven,

Based on the supplied information, it is hard to determine what is causing this unwanted behavior. In order to progress in our investigation, we will need to debug the code. To do so, please send us a small working project, demonstrating your logic, and showing the unwanted behavior. We will review it locally, and advise you further.

Regards,
Yavor
the Telerik team
