[Solved] Sort order on multiple column programmaticly

[Jonathan]

Hi,

I am using Telerik controls Q1 2011 for silverlight. In one of my page I used RadGridView and requirement is to sort the data by three columns; Category, percentage and name (all ascending). So, the rows would be first sort by category and then percentage and then names. I found examples in demos and forum but they either talk about sort order or multiple column sorting in UI. What I need is to implement the stated sorting on page load, so I want that to be programmaticly written. Also, there is option of loading page again by button click, to I want to make sure the code can handle the data binding and formatting accordingly.
Please help.

-Jono

[Dimitrina]

Hi Jonathan,

In order to sort multi columns programmatic, you will need to add multiple column sort descriptors to the collection, like:

ColumnSortDescriptor csd_1 = new ColumnSortDescriptor()
           {
               Column = this.clubsGrid.Columns["Name"],
               SortDirection = ListSortDirection.Descending
           };
           this.clubsGrid.SortDescriptors.Add(csd_1);

           ColumnSortDescriptor csd_2 = new ColumnSortDescriptor()
           {
               Column = this.clubsGrid.Columns["Established"],
               SortDirection = ListSortDirection.Ascending
           };
           this.clubsGrid.SortDescriptors.Add(csd_2);

This way the grid will be first sorted by the Name column, then by the Established column. You may check RadGridView SortDescriptors collection for more info.

Best wishes,
Didie
the Telerik team

[Jonathan]

Thanks for your reply.
Now I am able to see what I wanted but there is one problem in exporting the grid in Excel.
When I export the rows, I get the footer row with some grid details populated. Attached is the sample. I just need the count at the end but not the control details. I tried setting 'ShowGroupFooters' and 'ShowColumnFooters' to false but of no help.
Please suggest.

[Dimitrina]

Hello Jonathan,

As I can understand from your post you have grouped on some of the columns. Then you export and you get the details of the grouped rows. I have tried to reproduce this result, but when I set 'ShowGroupFooters=false' the details are not exported, just the footer.

 May you please clarify what your scenario is? May you as well place some code how are you doing the export itself?

Regards,
Didie
the Telerik team

[Jonathan]

Hi, thanks for helping.

below is my xaml code

<





telerik:RadGridView Name="grid1" ColumnWidth="Auto" AutoGenerateColumns="False" AutoExpandGroups="True"







CanUserDeleteRows="False" CanUserInsertRows="False" IsReadOnly="True">









<telerik:RadGridView.Columns>









<telerik:GridViewDataColumn UniqueName="Approaching" Header="Approaching.." DataMemberBinding="{Binding ApproachingTo}">









<telerik:GridViewDataColumn.AggregateFunctions>









<telerik:CountFunction Caption="Total :" ResultFormatString="{}{0}"/>









</telerik:GridViewDataColumn.AggregateFunctions>









</telerik:GridViewDataColumn>

Here is C# code



private





void ArrangeGridRows()



{





if (grid1.GroupDescriptors.Count == 0)



{





var descriptor = new ColumnGroupDescriptor {Column = grid1.Columns["Approaching"]};



grid1.GroupDescriptors.Add(descriptor);

}

grid1.ShowGroupFooters =



false;







if (grid1.SortDescriptors.Count > 0) return;







var csdPercentHeld = new ColumnSortDescriptor











{

Column = grid1.Columns[



"Column1"],



SortDirection =



ListSortDirection.Ascending



};

grid1.SortDescriptors.Add(csdPercentHeld);





var csdSecurityName = new ColumnSortDescriptor











{

Column = grid1.Columns[



"Column2"],



SortDirection =



ListSortDirection.Ascending



};

grid1.SortDescriptors.Add(csdSecurityName);

}

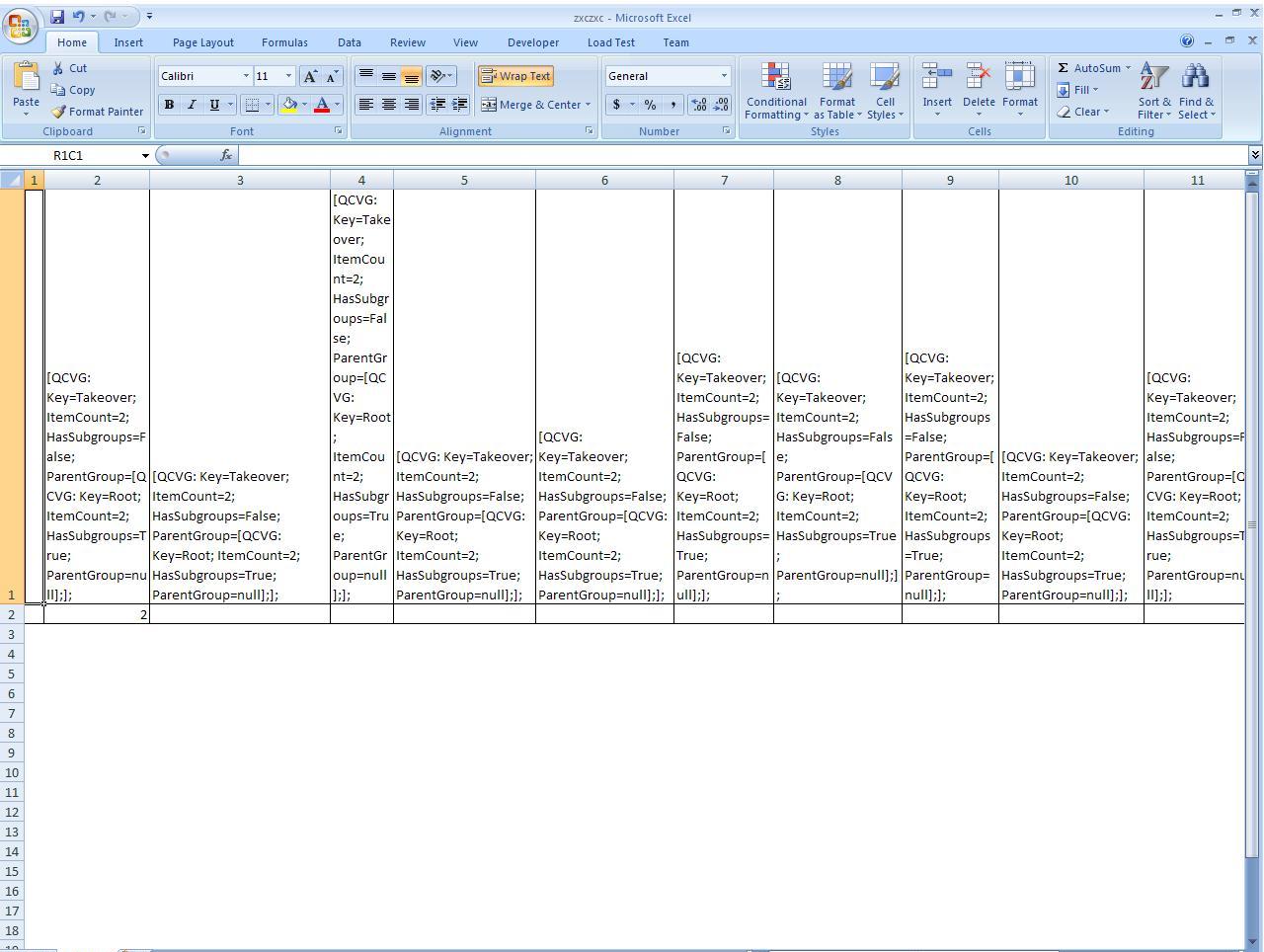

When I export this in Excel I get bottom row as attached in screenshot. FYI, I have not extended any export logic.

Thanks

[Vlad]

Hello,

 Have you checked our demo for exporting? You need to handle ElementExporting and provide values for group footers.

Regards,
Vlad
the Telerik team

[Jonathan]

Thanks for replying.

I put the below code to remove extra information.

private





void GridQueryResultsSummaryElementExporting(object sender, GridViewElementExportingEventArgs e)



{



if (e.Element == ExportElement.GroupFooterCell){e.Value = string.Empty;}}

Now my question is why I have to explicitly remove the un-neccessary content from export? Can't I just set some property of something, and direct gridview not to export group information beforehand?
Even after above workaround, I am getting a blank row between last data row and aggregate row.

Please suggest.
Regards



[Vlad]

Hello,

 If you do not want group footer in the output you can simply set ShowGroupFooters to false for the export options.

Please refer to the demo I've posted!

Kind regards,
Vlad
the Telerik team

[Jonathan]

Thanks Vlad but if you see my previous posts I have set the ShowGroupFooters to false at very beginning. Also, your fellow, Didie, had suggested the same thing but when it did not work I posted the code snippets. Please go through the whole communication to understand the situation better.

Regards

[Vlad]

Hello,

It seems that you've missed to check the demo I've posted?

You need to set ShowGroupFooters for the export options - not for the grid.

Best wishes,
Vlad
the Telerik team
