Schedule view - Selection behavior

[Subramanian]

Hello,

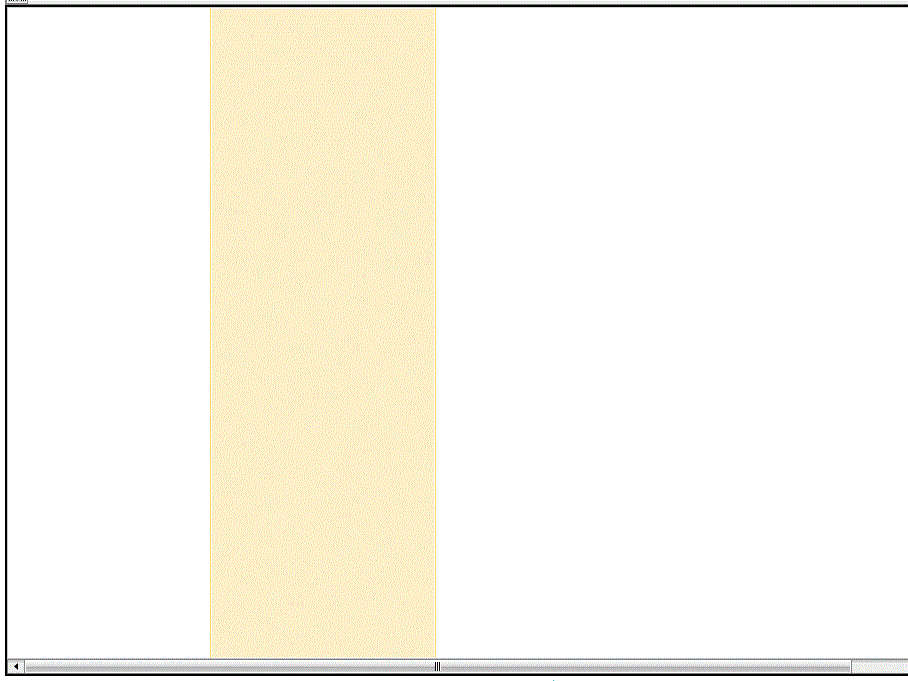

I am trying to customize the template for schedule view but having issues figuring out in disabling the selection behaviour. Please find attached the screenshots. I would like to disable the user selection and also dont show the vertical border that is appearing in the pics.

Appreciate help.

Regards
Subbu

[Dani]

Hello Subramanian,

To prevent the time slot selection, you can make your slots read-only. This is demonstrated in this online example. Also, be sure to check the help article on the same topic.

If you wish to additionally hide the visualization of the mouse over effect on the slot, you can use the MouseOverHighlightStyle:

<UserControl.Resources>
        <Style x:Key="MouseOverHighlightStyle" TargetType="telerik:HighlightItem">
            <Setter Property="Background" Value="Transparent" />
        </Style>
    </UserControl.Resources>

    <Grid Background="White">

        <telerik:RadScheduleView x:Name="sv" MouseOverHighlightStyle="{StaticResource MouseOverHighlightStyle}">
            <telerik:RadScheduleView.ViewDefinitions>
                <telerik:DayViewDefinition />
                <telerik:WeekViewDefinition />
                <telerik:MonthViewDefinition/>
                <telerik:TimelineViewDefinition/>
            </telerik:RadScheduleView.ViewDefinitions>
        </telerik:RadScheduleView>

    </Grid>

I hope this helps.


Greetings,
Dani
the Telerik team

[Subramanian]

Hello Dani,

I am disabling all dialogs in my view so basically user cannot edit item which makes it read only.

I am not able to disable the visualization with the code style you mentioned below.  Let me know if i miss something

Regards
Subramanian.V.V.

[Dani]

Hi Subramanian,

Disabling the display of dialogs is also an option. If you wish to additionally hide the mouse over and selected states of the slots, you should use the MouseOverHighlightStyle and SelectedHighlighjtStyle attached properties of RadScheduleView.

Why are you unable to apply these styles? Can you share a code snippet or a sample?

Regards,
Dani
the Telerik team

[Subramanian]

Hello Dani,

I figured out the issue. It looks like i have to set both the selectionhightlight style and mouse over highlight style.

Also i would like to get clarifications on errors i see in VS IDE to ensure it is not related to telerik controls. I create a separte styles .xmal file and add it as resource (build action) to project. This file contains the custom styles for radscheduleview control. IDE always show these two errors

Type 'local:RadScheduleViewCommands' was not found. D:\Incubation\Blendtesting\SL50Project\RadScheduleViewStyles.xaml 127 21 SL50Project

An error occurred while finding the resource dictionary "RadScheduleViewStyles.xaml". D:\Incubation\Blendtesting\SL50Project\RadScheduleViewTest.xaml 14 17 SL50Project

But application works fine runtime applying the styles correctly.

Regards
Subramanian.V.V.

[Dani]

Hi Subramanian,

Make sure the local namespace points to the following:

xmlns:local="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.ScheduleView"

What syntaxt do you use to merge the resource dictionary into your project?

Regards,
Dani
the Telerik team
