Scatter Chart: tooltip and label template

5 Answers 101 Views
Chart
This is a migrated thread and some comments may be shown as answers.
This question is locked. New answers and comments are not allowed.
Daniel
Top achievements
Rank 1
Daniel asked on 22 Dec 2011, 10:52 AM
Hi,

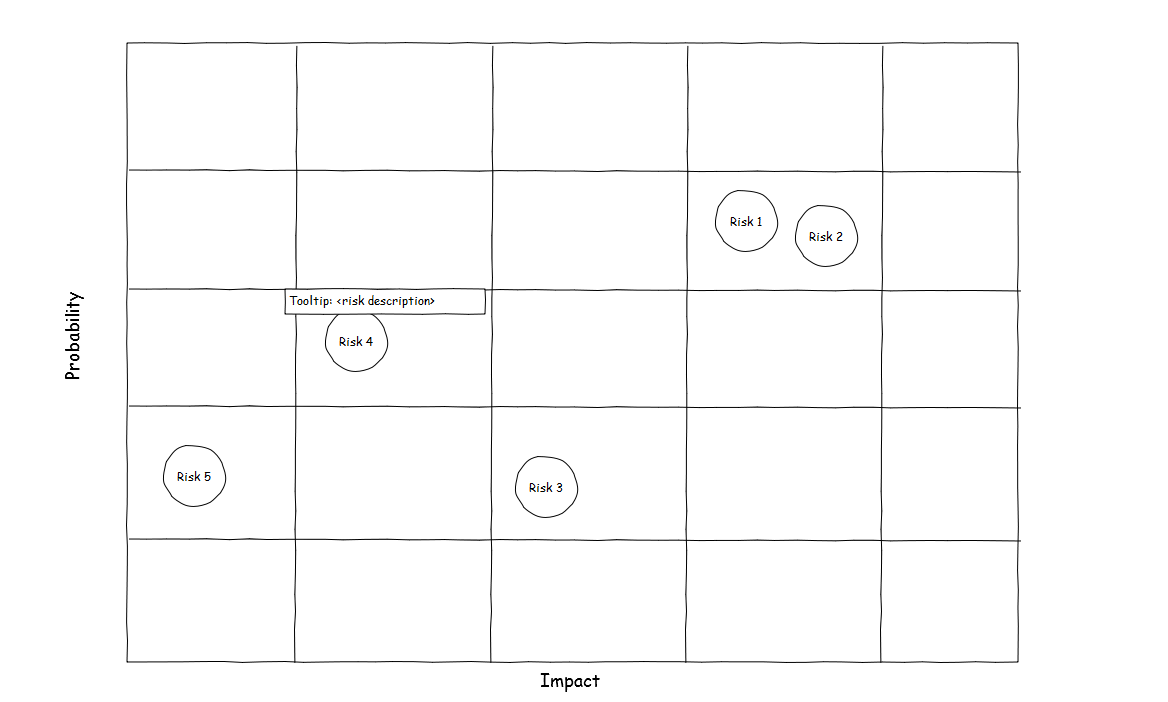

I'd like to display a series of risks in a matrix (scatter chart), see sketched ui in the attached file riskmatrix.png.

The model would be something like this, where "x" would represent the "impact" and "y" the "probability":
public class ScatterData
   {
       public int x { get; set; }
       public int y { get; set; }
       public string Description { get; set; }
   }

In order to test this behavior, I'm using a very basic view:
<h2>Scatter</h2>

@model List<TelerikMvcApplication1.Models.ScatterData>

@(Html.Telerik().Chart(Model)
    .Name("chart")
    .Series(series => {
        series.Scatter(typeof(TelerikMvcApplication1.Models.ScatterData) , "x", "y")
            .Labels(l => l.Template("<#= dataItem.Description #> - <#=value.x#>,  <#=value.y#> (<#=series.Description#>)"))
            .Labels(true);

    })
    .Tooltip(tt => {
        tt
        .Template("<#= dataItem.Description #> - <#=value.x#>,  <#=value.y#> (<#=series.Description#>)")
        .Visible(true);
    })
)

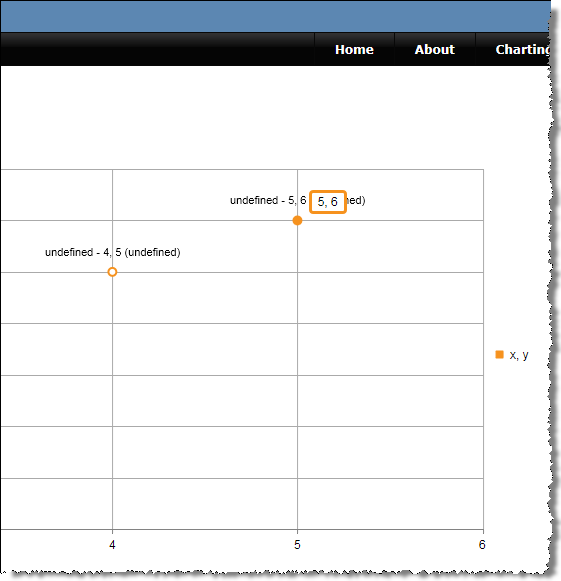

As you can see in the file riskmatrix_output.png, the labels template is used (in some way, except for the "description" ) but the tooltip template is ignored totally.

How do I have to implement the view in order to produce the desired matrix?

Thank you for our help and regards,
Daniel


5 Answers, 1 is accepted

Sort by
0
Hristo Germanov
Telerik team
answered on 22 Dec 2011, 01:08 PM
Hi Daniel,

Thank you for contacting us.

This is a bug and I am glad to inform you that it is already fixed. The bug fix will be included with the next official release of Telerik ASP.NET MVC components.

I have attached the modified telerik.chart.min.js and telerik.common.min.js file.

Kind regards,
Hristo Germanov
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the Telerik Extensions for ASP.MET MVC, subscribe to their blog feed now
0
Daniel
Top achievements
Rank 1
answered on 22 Dec 2011, 03:30 PM
Hi Hristo
Thank you for your response, the problem with the tooltip is fixed, which is great.
Unfortunately, the "undefined-problem" still exists.

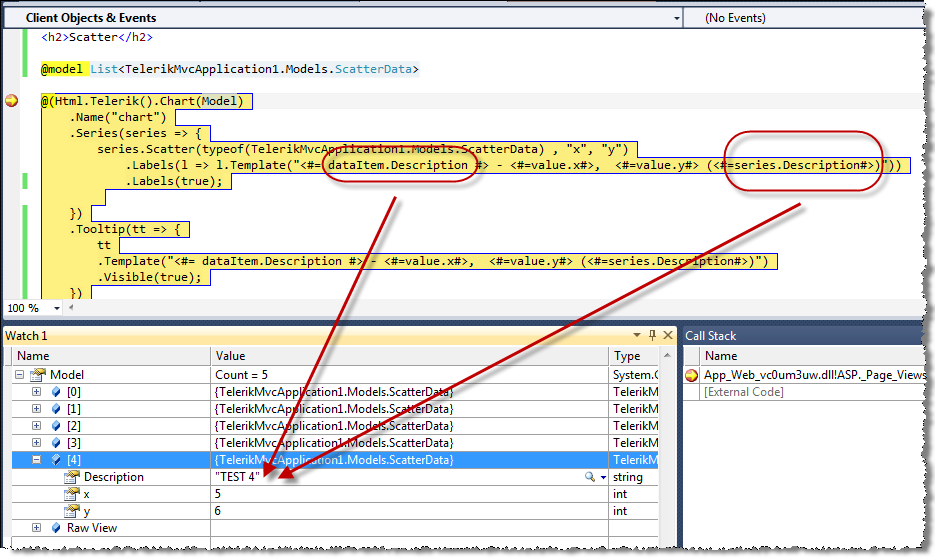

Please have a look at the file "debugger.png". As you can see, there are some values in the "Description"-property of each ScatterData item.

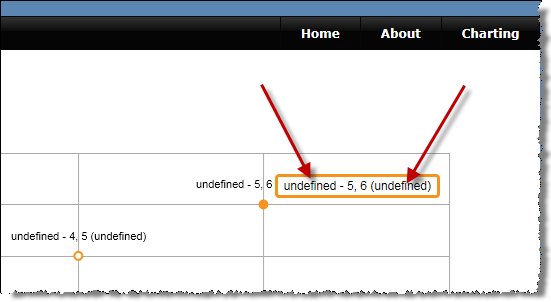

Using the template described earlier, I am not able to display the values from the Description property, neither by using "dateItem.Description" nor "value.Description", see "result.png"

Any suggestions are appreciated.

Regards,
Daniel
0
Hristo Germanov
Telerik team
answered on 22 Dec 2011, 04:47 PM
Hello Daniel,

You can use dataItem only if your chart is bind with ajax binding. Please excuse us for the inconvenience.

All the best,
Hristo Germanov
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the Telerik Extensions for ASP.MET MVC, subscribe to their blog feed now
0
Jerry
Top achievements
Rank 1
answered on 30 May 2012, 01:26 PM
Hi there,


I was wondering whether this issue has been fixed for 2012 Q1 release.


public class AlertAssetChartModel
{
    public int AssetId { get; set; }
    public string AssetName { get; set; }
    public int? DriverId { get; set; }
    public string DriverName { get; set; }
    public DateTime Date { get; set; }
    public int TotalAlerts { get; set; }
}
my chart
@(Html.Telerik().Chart(Model)
    .Name("AlertAssetChart")
    .Title(title => title
        .Text("Number of alerts vs. Assets")
        .Visible(true)
    )
    .Legend(legend => legend
        .Position(ChartLegendPosition.Bottom)
        .Visible(true)
    )
    .SeriesDefaults(series =>
    {
        series.Bar().Stack(false);
    })
    .Series(series =>
    {
            series.Bar(s => s.TotalAlerts).Name("Total Alerts");
    })
    .CategoryAxis(axis => axis
                                    .Categories(s => s.AssetId).Title("Asset").Labels(l => l.Template("<#= dataItem.AssetName #>"))
    )
    .ValueAxis(axis => axis
        .Numeric().Labels(labels => labels.Format("{0:#,##0}")).Title("Number of Alerts")
    )
)


when I run it, it always give me "dataitem not defined" exception.

any suggestion?

regards
Jerry Ren
0
Hristo Germanov
Telerik team
answered on 01 Jun 2012, 02:05 PM
Hello Jerry,

We do not supported dataItem for the category axis. You can set only value(represents the category text).

Kind regards,
Hristo Germanov
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the Telerik Extensions for ASP.MET MVC, subscribe to their blog feed now.
