Rotation of axis able is illogical

2 posts, 0 answers
  1. Alex
    Alex avatar
    30 posts
    Member since:
    Aug 2010

    Posted 24 Jan 2011 Link to this post

    Hi everybody! Sorry for the typo, the title should say "axis label", not "axis able".

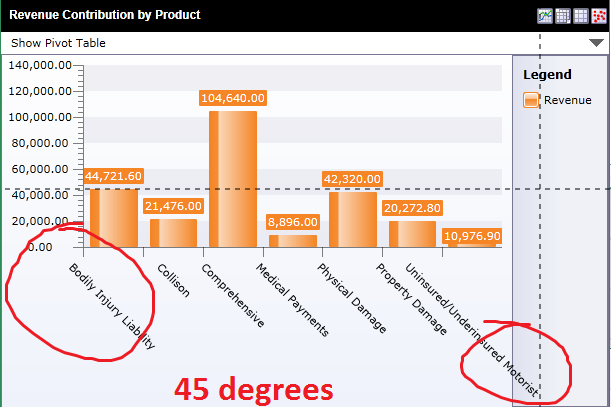

    When we set the property LabelRotationAngle for X-axis, the labels are rotated relative to its center. As a result, the top of the label, which is closest to the Bar the label represents, moves to the left and points to the previous bar (or in between the bars). See the attached image.

    Is it possible to make a label rotating relative to the left end of it? It would make so much sense!

    Thanks!
    Alex.
  2. Missing user
    Missing user avatar

    Posted 25 Jan 2011 Link to this post

    Hi Alex,

    I was able to reproduce the issue in a local test and unfortunately the rotation cannot be relative to the left end of the label. I would suggest trying to provide more space for the chart or format the values for the X-Axis.

    For example you can cut the long strings or put new lines in them. If you populate digits you can use DefaultLabelFormat. More information about label format and examples can be found here:
       http://www.telerik.com/help/silverlight/radchart-features-format-expressions.html
       http://www.telerik.com/help/silverlight/radchart-features-chart-area.html

    I hope this helps.

    Kind regards,
    Polina
    the Telerik team
