RadHScrollBar can not scroll to maximum value.

[Johnny]

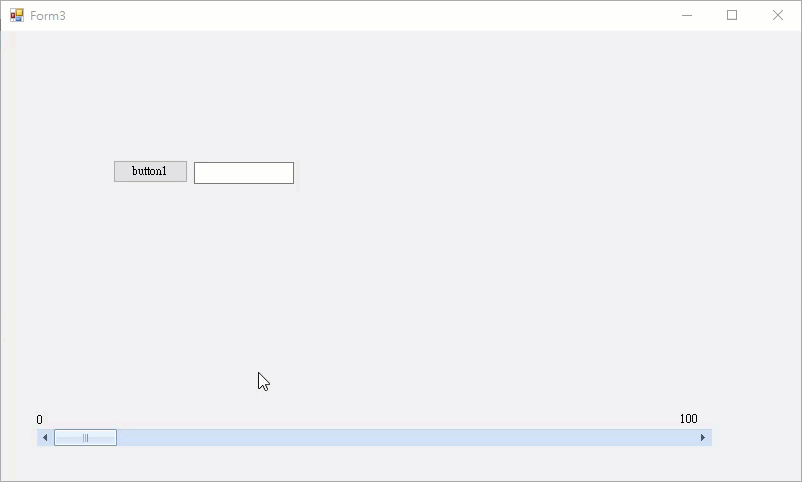

As title. Followed as my code and screen shot as attachment.

public partial class Form3 : Form
{
    public Form3()
    {
        this.InitializeComponent();

        this.label1.Text = this.radHScrollBar1.Minimum.ToString();
        this.label2.Text = this.radHScrollBar1.Maximum.ToString();
    }

    private void button1_Click(object sender, System.EventArgs e)
    {
        this.textBox1.Text = this.radHScrollBar1.Value.ToString();
    }
}

[Nadya | Tech Support Engineer]

Hello, Johnny,

The Value property gets a numeric value that represents the current position of the scroll thumb on the scroll bar. The LargeChange property sets the amount by which the scroll thumb position changes when a user clicks the scroll thumb. This property allows you to change how much to scroll using the RadHScrollBar. Please refer to the following code snippet updated:

public RadForm1()
{
    InitializeComponent();
    this.radHScrollBar1.LargeChange = 1;
    this.radLabel1.Text = this.radHScrollBar1.Minimum.ToString();
    this.radLabel2.Text = this.radHScrollBar1.Maximum.ToString();
}

private void radButton1_Click(object sender, EventArgs e)
{
    this.radTextBox1.Text = this.radHScrollBar1.ScrollBarElement.Value.ToString();
}

I hope this helps. Should you have other questions do not hesitate to ask.

Regards,
Nadya
Progress Telerik
