RadGridView, Hierarchical Relationship doesn't work

3 Answers 101 Views
General Discussions
This is a migrated thread and some comments may be shown as answers.
Erwin
Top achievements
Rank 1
Erwin asked on 03 Jul 2015, 03:00 PM

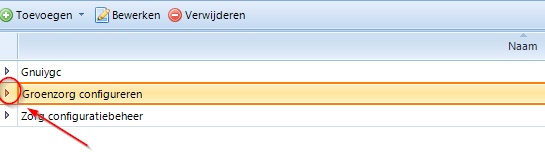

I have created a hierarchical relationship in a RadGridView. But the relationship doesn't work. I can't show the detail information. What do I do wrong?



This is the source:

private void OpenConfigurations()
{
  bsConfigurations.DataSource = Db.Configurations.Where(c => c.Active == true && c.CompanyId == CurrentCompany.CompanyId).Select(c => c).OrderBy(c => c.Name);
  bsConfigurationContracts.DataSource = Db.ConfigurationContracts.Where(c => c.Contract.InsurranceId == CurrentCompany.CompanyId).Select(c =>
c).OrderBy(c => c.Contract.Name);

  GridViewRelation gvrConfigurations = new GridViewRelation();

  gvrConfigurations.ChildColumnNames.Add("ConfigurationId");

  gvrConfigurations.ChildTemplate = this.gridViewTemplate1;

  gvrConfigurations.ParentColumnNames.Add("ConfigurationId");

  gvrConfigurations.ParentTemplate = this.gvConfiguration.MasterTemplate;

  gvConfiguration.Relations.Add(gvrConfigurations);
}

In the designer:
this.gridViewTemplate1.AllowAddNewRow = false;
gridViewTextBoxColumn1.EnableExpressionEditor = false;
gridViewTextBoxColumn1.FieldName = "Contract.Name";
gridViewTextBoxColumn1.HeaderText = "Name";
gridViewTextBoxColumn1.Name = "colName";
gridViewTextBoxColumn1.Width = 250;
gridViewTextBoxColumn2.EnableExpressionEditor = false;
gridViewTextBoxColumn2.FieldName = "ConfigurationId";
gridViewTextBoxColumn2.HeaderText = "ConfigurationId";
gridViewTextBoxColumn2.IsVisible = false;
gridViewTextBoxColumn2.Name = "colConfigurationId";

this.gridViewTemplate1.Columns.AddRange(new Telerik.WinControls.UI.GridViewDataColumn[] { gridViewTextBoxColumn1, gridViewTextBoxColumn2 });
this.gridViewTemplate1.DataSource = this.bsConfigurationContracts;
//
// gvConfiguration
//
this.gvConfiguration.BackColor = System.Drawing.Color.FromArgb(((int)(((byte)(233)))), ((int)(((byte)(240)))), ((int)(((byte)(249)))));
this.gvConfiguration.Cursor = System.Windows.Forms.Cursors.Default;
this.gvConfiguration.Dock = System.Windows.Forms.DockStyle.Fill;
this.gvConfiguration.Font = new System.Drawing.Font("Segoe UI", 8.25F);
this.gvConfiguration.ForeColor = System.Drawing.Color.Black;
this.gvConfiguration.ImeMode = System.Windows.Forms.ImeMode.NoControl;
this.gvConfiguration.Location = new System.Drawing.Point(0, 30);
//
//
//
this.gvConfiguration.MasterTemplate.AllowAddNewRow = false;
this.gvConfiguration.MasterTemplate.AutoGenerateColumns = false;
gridViewTextBoxColumn3.EnableExpressionEditor = false;
gridViewTextBoxColumn3.FieldName = "Name";
gridViewTextBoxColumn3.HeaderText = "Name";
gridViewTextBoxColumn3.Name = "colName";
gridViewTextBoxColumn3.SortOrder = Telerik.WinControls.UI.RadSortOrder.Ascending;
gridViewTextBoxColumn3.Width = 250;
gridViewTextBoxColumn4.EnableExpressionEditor = false;
gridViewTextBoxColumn4.FieldName = "ConfigurationId";
gridViewTextBoxColumn4.HeaderText = "ConfigurationId";
gridViewTextBoxColumn4.IsVisible = false;
gridViewTextBoxColumn4.Name = "colConfigurationId";
this.gvConfiguration.MasterTemplate.Columns.AddRange(new Telerik.WinControls.UI.GridViewDataColumn[] { gridViewTextBoxColumn3, gridViewTextBoxColumn4 });
this.gvConfiguration.MasterTemplate.DataSource = this.bsConfigurations;
sortDescriptor1.PropertyName = "colName";
this.gvConfiguration.MasterTemplate.SortDescriptors.AddRange(new Telerik.WinControls.Data.SortDescriptor[] { sortDescriptor1 });
this.gvConfiguration.MasterTemplate.Templates.AddRange(new Telerik.WinControls.UI.GridViewTemplate[] { this.gridViewTemplate1 });
this.gvConfiguration.Name = "gvConfiguration";
this.gvConfiguration.RightToLeft = System.Windows.Forms.RightToLeft.No;
this.gvConfiguration.ShowGroupPanel = false;
this.gvConfiguration.Size = new System.Drawing.Size(1098, 72);
this.gvConfiguration.TabIndex = 4;
this.gvConfiguration.Text = "radGridView1";
this.gvConfiguration.CellDoubleClick += new Telerik.WinControls.UI.GridViewCellEventHandler(this.gvConfiguration_CellDoubleClick);

3 Answers, 1 is accepted

Sort by
0
Erwin
Top achievements
Rank 1
answered on 06 Jul 2015, 04:46 AM
Sorry I use VS2013 Prof., WinForms as UI and LINQ to SQL as datasource.
0
Accepted
Stefan
Telerik team
answered on 07 Jul 2015, 09:56 AM
Hello Erwin,

Thank you for writing.

When creating a relation, you should specify the names of the grid view columns, not the field names:
GridViewRelation gvrConfigurations = new GridViewRelation();
gvrConfigurations.ChildColumnNames.Add("colConfigurationId");
gvrConfigurations.ChildTemplate = this.gridViewTemplate1;
gvrConfigurations.ParentColumnNames.Add("colConfigurationId");
gvrConfigurations.ParentTemplate = this.gvConfiguration.MasterTemplate;
gvConfiguration.Relations.Add(gvrConfigurations);

I hope that you find this information useful. Should you have any other questions, do not hesitate to contact us.

Regards,
Stefan
Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
Erwin
Top achievements
Rank 1
answered on 07 Jul 2015, 12:48 PM
Thanks for your answer. Sorry. But I found the answer jet. This was what I did doing wrong...
