Hi,
I'm try to use plotBand in categoryAxis or valueAxis bud it's doesn't work. this's my code
i'm copied code from here: PlotBands
I'm try to use plotBand in categoryAxis or valueAxis bud it's doesn't work. this's my code
i'm copied code from here: PlotBands

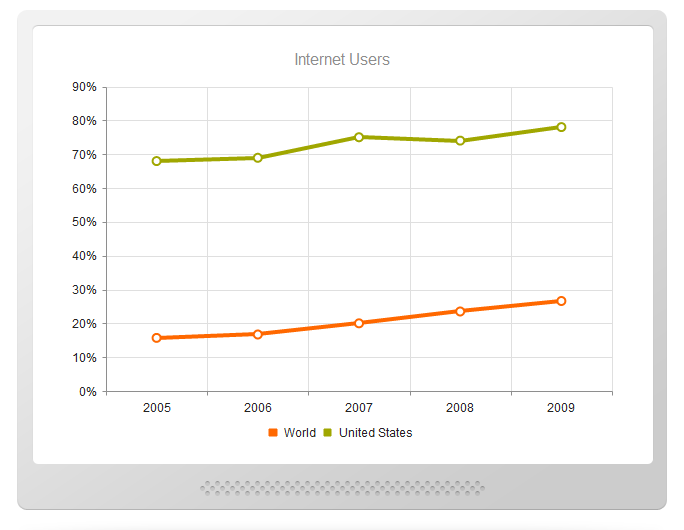

<!doctype html><html> <head> <title>Basic usage</title> <link href="../../shared/styles/examples.css" rel="stylesheet"/> <link href="../../shared/styles/examples-offline.css" rel="stylesheet"/> <link href="../../../source/styles/kendo.common.css" rel="stylesheet"/> <link href="../../../source/styles/kendo.default.css" rel="stylesheet"/> <script src="../../../source/js/jquery.min.js"></script> <script src="../../../source/js/kendo.core.js"></script> <script src="../../../source/js/kendo.data.js"></script> <script src="../../../source/js/kendo.chart.js"></script> </head> <body> <a href="../index.html">Back</a> <div class="description">Basic usage</div> <div id="example" class="k-content"> <div class="chart-wrapper"> <div id="chart");"></div> </div> <script> function createChart() { $("#chart").kendoChart({ theme: $(document).data("kendoSkin") || "default", title: { text: "Internet Users" }, legend: { position: "bottom" }, chartArea: { background: "" }, seriesDefaults: { type: "line" }, series: [{ name: "World", data: [15.7, 16.7, 20, 23.5, 26.6] }, { name: "United States", data: [67.96, 68.93, 75, 74, 78] }], valueAxis: { labels: { format: "{0}%" } }, categoryAxis: { categories: [2005, 2006, 2007, 2008, 2009], plotBands: [{ from: 2006, to: 2007, color: "#000", opacity: 0.2 }] }, tooltip: { visible: true, format: "{0}%" } }); } $(document).ready(function() { setTimeout(function() { createChart(); // Initialize the chart with a delay to make sure // the initial animation is visible }, 400); $(document).bind("kendo:skinChange", function(e) { createChart(); }); }); </script> </div> </body></html>1 Answer, 1 is accepted
0
Hi Tanawatra ,
You could display bands with different color for both category and value axis. As a value for categoryAxis you need to use the category index (zero based). For example:
Iliana Nikolova
the Telerik team
You could display bands with different color for both category and value axis. As a value for categoryAxis you need to use the category index (zero based). For example:
function createChart() { $("#chart").kendoChart({ ... valueAxis: { labels: { format: "{0}%" }, plotBands: [{ from: 40, to: 70, color: "#009900" }] }, categoryAxis: { categories: [2005, 2006, 2007, 2008, 2009], plotBands: [{ from: 0, to: 3, color: "#FFFF66" }]
}
});
}); Greetings,
Iliana Nikolova
the Telerik team
