Mariusz Wiejski asked on 18 Aug 2011, 01:24 AM

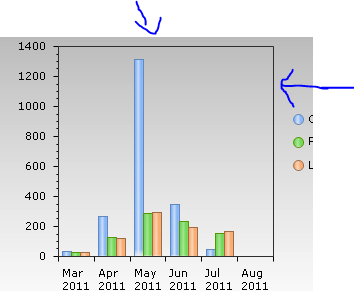

I have a plain radchart. Only thing is I want to have a black border around the plotarea something you see in Ajax radchart like the attached file.

Can I achieve this via code behind?

1 Answer, 1 is accepted

Sort by
0
Evgenia
Telerik team
answered on 23 Aug 2011, 11:49 AM
Hi Mariusz,

Currently there is no direct way to set Border for the ChartArea. However you may use the following approach: wire to the LayoutUpdated event of the ChartArea and add the following code lines that search for Border child of the ChartArea:
void ChartArea_LayoutUpdated(object sender, EventArgs e)
        {
            var clipPanel = minuteChartData.DefaultView.ChartArea.FindChildByType<RadTransitionControl>();
            var grid = clipPanel.FindChildByType<Grid>();
            var border = grid.FindChildByType<Border>();
            border.BorderBrush = new SolidColorBrush(Colors.Green);
            border.BorderThickness = new Thickness(3);
        }

Feel free to customize the BorderBrush Color or the BorderThickness as per your needs.

Best wishes,
Evgenia
the Telerik team
