native grid grouping not working

6 Answers 557 Views
Grid
This is a migrated thread and some comments may be shown as answers.
vinson
Top achievements
Rank 1
vinson asked on 22 Apr 2020, 03:54 AM

Hi,

I have the native grid set up in my vue application with Vuex and having issue getting the grouping feature to work.

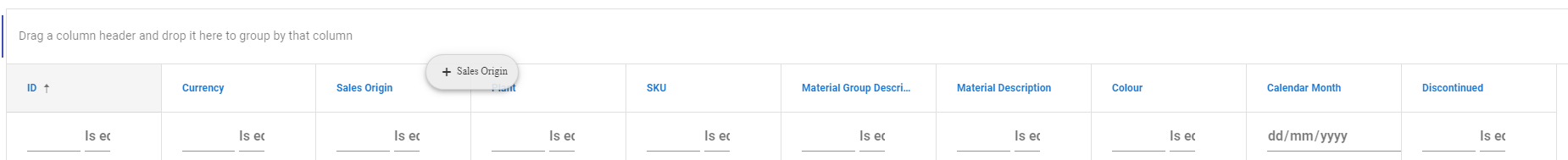

I am not getting a response whenever I drag a column to the column header. The dragged column just not stay in the column header, it disappears afterward.

It seems my grid isn't emitting the onDataStateChange method. Not sure what I have done wrong.

Other gird features are working fine.



<template>
  <v-card shaped>
    <v-card-title>
      <h3>
        Product
      </h3>
    </v-card-title>
    <v-card-text>
      <Grid
        :style="{height: '800px'}"
        :data-items="gridDataResult"
        :filterable="true"
        :filter="filter"
        :groupable="true"
        :group="group"
        :pageable="pageable"
        :reorderable="true"
        :resizable="true"
        :sortable="true"
        :sort="sort"
        :skip="skip"
        :take="take"
        :total="total"
        :expand-field="'expanded'"
        :columns="columns"
        :column-menu="columnMenu"
        @pagechange="pageChangeHandler"
        @filterchange="filterChange"
        @sortchange="sortChangeHandler"
        @dataStateChange="dataStateChange"
        @expandchange="expandChange"
        @columnreorder="columnReorder"
      >
        <!-- <grid-toolbar>
          <button
            title="Add new"
            class="k-button k-primary"
            @click="insert"
          >
            Add new
          </button>
          <button
            v-if="hasItemsInEdit"
            title="Cancel current changes"
            class="k-button"
            @click="cancelChanges"
          >
            Cancel current changes
          </button>
        </grid-toolbar> -->

        <grid-no-records>
          <div class="k-loading-mask customPosition">
            <span class="k-loading-text" />
            <div class="k-loading-image" />
            <div class="k-loading-color" />
          </div>
        </grid-no-records>
      </Grid>
    </v-card-text>
  </v-card>
</template>

<script>

import { process } from '@progress/kendo-data-query';
// import { mapGetters } from 'vuex';
// import { mapGetters, mapActions } from 'vuex';

export default {
  name: 'Product',
  components: {},
  data() {
    return {
      columnMenu: false,
      expandedItems: [],
      gridPageable: { pageSizes: true },
      skip: 0,
      take: 10,
      pageSize: 10,
      pageable: {
        buttonCount: 10,
        info: true,
        type: 'numeric',
        pageSizes: true,
        previousNext: true,
      },
      filter: {
        logic: '',
        filters: [
          // { field: 'UnitPrice', operator: 'neq', value: 18 },
          // { field: 'calendarMonth', operator: 'gte', value: new Date('1996-10-10') },
        ],
      },
      group: [],
      sort: [{ field: 'id', dir: 'asc' }],
      // sort: [
      //   { field: 'id', dir: 'asc' },
      // ],
      columns: [
        {
          field: 'id',
          title: 'ID',
          // width: '70px',
        },
        {
          field: 'currency',
          title: 'Currency',
          // width: '100px',
        },
        {
          field: 'salesOrigin',
          title: 'Sales Origin',
          // width: '100px',
          // filter: 'numeric',
          // groupable: true,
        },
        {
          field: 'plant',
          title: 'Plant',
          // width: '100px',
          // filter: 'numeric',
          // groupable: true,
        },
        {
          field: 'sku',
          title: 'SKU',
          // width: '100px',
          // groupable: true,
        },
        {
          field: 'materialGroupDescription',
          title: 'Material Group Description',
          // width: '100px',
        },
        {
          field: 'materialDescription',
          title: 'Material Description',
          // width: '100px',
        },
        {
          field: 'swatchDisplayColourDescription',
          title: 'Colour',
          // width: '100px',
        },
        {
          field: 'calendarMonth',
          filter: 'date',
          title: 'Calendar Month',
          // width: '100px',
          // groupable: true,
        },
        {
          field: 'discontinued',
          title: 'Discontinued',
          // filter: 'boolean',

          // groupable: true,
        },
        // {
        //   command: [
        //     {
        //       name: 'edit',
        //       text: ' ',
        //       width: 10,
        //     },
        //     {
        //       name: 'destroy',
        //       text: ' ',
        //       width: 10,
        //     },
        //   ],
        //   title: 'Actions',
        //   // width: '150px',
        // },
      ],
    };
  },
  computed: {
    gridDataResult: {
      get() {
        // const data = process(this.$store.getters.aggregatedBoDataList,
        //   {
        //     sort: this.sort,
        //     take: this.take,
        //     skip: this.skip,
        //     filter: this.filter,
        //     group: this.group,
        //   });
        // console.log(data);

        return process(this.$store.getters.aggregatedBoDataList,
          {
            take: this.take,
            skip: this.skip,
            sort: this.sort,
            filter: this.filter,
            group: this.group,
          });
      },
      set(data) {
        return process(data,
          {
            take: this.take,
            skip: this.skip,
            sort: this.sort,
            filter: this.filter,
            group: this.group,
          });
      },
    },
    total() {
      return this.$store.getters.aggregatedBoDataList
        ? this.$store.getters.aggregatedBoDataList.length : 0;
    },
  },
  created() {
    this.$store.dispatch({
      type: 'fetchAggregatedBoData',
      count: 200,
    });
  },
  methods: {
    createAppState(dataState) {
      console.log(`dataState ${dataState}`);
      this.group = dataState.group;
      this.take = dataState.take;
      this.skip = dataState.skip;
      this.girdDataResult(dataState.data);
      // this.getData();
    },
    groupChange(event) {
      console.log(event);
    },
    dataStateChange(event) {
      console.log(`data state ${event}`);
      this.createAppState(event.data);
    },
    expandChange(event) {
      console.log(`expand state ${event.target.$props.expandField}`);
      this.$set(event.dataItem, event.target.$props.expandField, event.value);
    },
    pageChangeHandler(event) {
      this.skip = event.page.skip;
      this.take = event.page.take;
    },
    sortChangeHandler(e) {
      this.sort = e.sort;
    },
    filterChange(ev) {
      this.filter = ev.filter;
    },
    columnReorder(options) {
      this.columns = options.columns;
    },
  },
};
</script>

<style>
.customPosition { margin-top:100px}
</style>

6 Answers, 1 is accepted

Sort by
0
Ianko
Telerik team
answered on 23 Apr 2020, 11:45 AM

Hello,

I created an example that mimics (to some extent) the code shown in your ticket and I am not experiencing any issues with grouping https://stackblitz.com/edit/vspufa?file=index.js. Can you check it out and see if I am missing anything?

Regards,
Ianko
Progress Telerik

Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
Our thoughts here at Progress are with those affected by the outbreak.
0
vinson
Top achievements
Rank 1
answered on 23 Apr 2020, 12:09 PM

Hi Ianko,

I found out why it is not working in my vue spa app (created using vue cli). It suppose to use '@datastatechange' all in small cap. However, in the web demon it is '@dataStateChange' the 'S' and 'C' is in large cap. That is the difference!

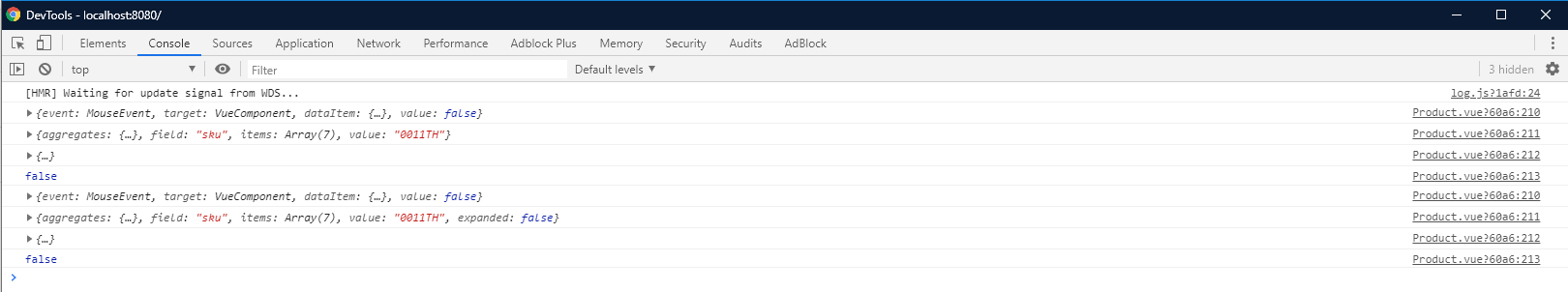

I am facing another issue with emitting '@expandchange'. The function gets emitted but it will not refresh the ui to collapse or expand the row.

<template>
  <v-card shaped>
    <v-card-title>
      <h3>
        Product
      </h3>
    </v-card-title>
    <v-card-text>
      <Grid
        ref="grid"
        :style="{height: '800px'}"
        :data-items="gridDataResult"
        :filterable="true"
        :filter="filter"
        :groupable="true"
        :group="group"
        :pageable="pageable"
        :reorderable="true"
        :resizable="true"
        :sortable="true"
        :sort="sort"
        :skip="skip"
        :take="take"
        :total="total"
        :expand-field="'expanded'"
        :columns="columns"
        :column-menu="columnMenu"
        @datastatechange="dataStateChange"
        @expandchange="expandChange"
      >
        <!--

          <grid-toolbar>
          <button
            title="Add new"
            class="k-button k-primary"
            @click="insert"
          >
            Add new
          </button>
          <button
            v-if="hasItemsInEdit"
            title="Cancel current changes"
            class="k-button"
            @click="cancelChanges"
          >
            Cancel current changes
          </button>
        </grid-toolbar> -->

        <grid-no-records>
          <div class="k-loading-mask customPosition">
            <span class="k-loading-text" />
            <div class="k-loading-image" />
            <div class="k-loading-color" />
          </div>
        </grid-no-records>
      </Grid>
    </v-card-text>
  </v-card>
</template>

<script>

import { process } from '@progress/kendo-data-query';
import Vue from 'vue';
// import { mapGetters } from 'vuex';
// import { mapGetters, mapActions } from 'vuex';

export default {
  name: 'Product',
  components: {},
  data() {
    return {
      columnMenu: false,
      expandedItems: [],
      skip: 0,
      take: 10,
      pageSize: 10,
      pageable: { pageSizes: true },
      filter: null,
      sort: null,
      group: null, // { field: 'sku' }
      columns: [
        {
          field: 'id',
          title: 'ID',
          // width: '70px',
        },
        {
          field: 'currency',
          title: 'Currency',
          // width: '100px',
        },
        {
          field: 'salesOrigin',
          title: 'Sales Origin',
          // width: '100px',
          // filter: 'numeric',
          // groupable: true,
        },
        {
          field: 'plant',
          title: 'Plant',
          // width: '100px',
          // filter: 'numeric',
          // groupable: true,
        },
        {
          field: 'sku',
          title: 'SKU',
          // width: '100px',
          // groupable: true,
        },
        {
          field: 'materialGroupDescription',
          title: 'Material Group Description',
          // width: '100px',
        },
        {
          field: 'materialDescription',
          title: 'Material Description',
          // width: '100px',
        },
        {
          field: 'swatchDisplayColourDescription',
          title: 'Colour',
          // width: '100px',
        },
        {
          field: 'calendarMonth',
          filter: 'date',
          title: 'Calendar Month',
          // width: '100px',
          // groupable: true,
        },
        {
          field: 'discontinued',
          title: 'Discontinued',
          // filter: 'boolean',

          // groupable: true,
        },
        // {
        //   command: [
        //     {
        //       name: 'edit',
        //       text: ' ',
        //       width: 10,
        //     },
        //     {
        //       name: 'destroy',
        //       text: ' ',
        //       width: 10,
        //     },
        //   ],
        //   title: 'Actions',
        //   // width: '150px',
        // },
      ],
    };
  },
  computed: {
    gridDataResult: {
      get() {
        return process(this.$store.getters.aggregatedBoDataList,
          {
            take: this.take,
            skip: this.skip,
            sort: this.sort,
            group: this.group,
            filter: this.filter,
          });
      },
      set(data) {
        return process(data,
          {
            take: this.take,
            skip: this.skip,
            sort: this.sort,
            group: this.group,
            filter: this.filter,
          });
      },
    },
    total() {
      return this.$store.getters.aggregatedBoDataList
        ? this.$store.getters.aggregatedBoDataList.length : 0;
    },
  },
  created() {
    this.$store.dispatch({
      type: 'fetchAggregatedBoData',
      count: 200,
    });
  },
  methods: {
    createAppState(dataState) {
      this.group = dataState.group;
      this.take = dataState.take;
      this.skip = dataState.skip;
      this.filter = dataState.filter;
      this.sort = dataState.sort;
      this.girdDataResult = dataState.data;
    },
    dataStateChange(event) {
      this.createAppState(event.data);
    },
    expandChange(event) {
      console.log(event);
      console.log(event.dataItem);
      console.log(event.target.$props);
      console.log(event.value);
      // Vue.set(event, 'value', true);
      // const d = Vue.set(event.dataItem, event.target.$props.expandField, true);
      Vue.set(event.dataItem, event.target.$props.expandField, event.value);
      // console.log(d);
    },
    pageChangeHandler(event) {
      this.skip = event.page.skip;
      this.take = event.page.take;
    },
    sortChangeHandler(e) {
      this.sort = e.sort;
    },
    filterChange(ev) {
      this.filter = ev.filter;
    },
  },
};
</script>

<style>
.customPosition { margin-top:100px}
</style>
0
vinson
Top achievements
Rank 1
answered on 23 Apr 2020, 12:15 PM

Hi Ianko,

The '@expandchange' isn't working in your example too.

0
Accepted
Ianko
Telerik team
answered on 23 Apr 2020, 02:18 PM

Hi,

I am afraid, the problem is with the computed property. Any changes to that property will not dispatch UI changes. You will need to use a simple property to bind the data. https://stackblitz.com/edit/vspufa?file=index.js

Maybe you can consider using watchers or some other mechanism to get and set data using Vuex.

Regards,
Ianko
Progress Telerik

Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
Our thoughts here at Progress are with those affected by the outbreak.
0
vinson
Top achievements
Rank 1
answered on 23 Apr 2020, 03:10 PM

Hi Ianko,

Thank you, no wonder why I am not getting update on the UI.

Can you provide me some insight how could I use watchers with the grid and Vuex?

I am new to Vue.

0
Ianko
Telerik team
answered on 24 Apr 2020, 05:56 AM

Hi,

Here you are an article showing various ways to watch state changes in Vuex: https://dev.to/viniciuskneves/watch-for-vuex-state-changes-2mgj.

Regards,
Ianko
Progress Telerik

Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
Our thoughts here at Progress are with those affected by the outbreak.
Tags
Grid
Asked by
vinson
Top achievements
Rank 1
Answers by
Ianko
Telerik team
vinson
Top achievements
Rank 1
Share this question
or
