Multiselect not adding back to grid in order after using sorter

[Alex]

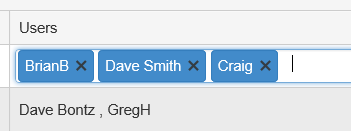

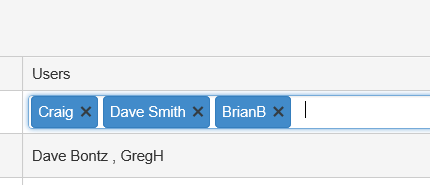

I am using a kendo grid and one of the columns uses a MultiSelectFor. I am also using a Sortable with the multiselect so users can change the ordering of the multiselect values but when I click out of the multiselect and it goes to write back to the grid it doesn't write back in the selected order but only the order in which I selected the values. I attached some images to show what I mean.

@using Models;
@using DAL;
@model IEnumerable<object>

@{
    string uniqueName = Util.GetUniqueName();
    string onSelect = "onSelect_" + uniqueName;
    string onChange = "onChange_" + uniqueName;
    string selectedValueVariable = "selectedValueVar_" + uniqueName;
    string selectedValueFunction_default = "selectedValueFunction_" + uniqueName;
    string builtParamFunction = "builtParamFunction_" + uniqueName;
    bool isCascadingFrom = false;

    bool isRequired = ViewData.ModelMetadata.IsRequired;

    string onChangeRestrictValues = "onChangeRestrictValues" + uniqueName;
    string onSortChange = "onSortChange" + uniqueName;

    bool ShowLabel = ViewData.GetBoolValue("ShowLabel");
    string selectedValueFunction = ViewData.GetValue("SelectedValueFunction", selectedValueFunction_default);
    string ParamFunction = ViewData.GetValue("ParamFunction");

    string id = ViewData.GetValue("FieldID", uniqueName);

    string Param1 = ViewData.GetValue("Param1");
    string Param2 = ViewData.GetValue("Param2");
    string Param3 = ViewData.GetValue("Param3");
    string CascadeFromField = ViewData.GetValue("CascadeFromField");
    string CascadeFromField_SelectedValueFunction = ViewData.GetValue("CascadeFromField_SelectedValueFunction");
    bool allowCustomEdit = ViewData.GetBoolValue("AllowCustomEdit");
    string defaultValue = ViewData.GetValue("DefaultValue");

    isCascadingFrom = string.IsNullOrWhiteSpace(CascadeFromField) == false;

    ListType ListType = ViewData.GetEnumValue<IEnumerable<object>, ListType>("ListType");

    string DataTextField = ListService.GetDataTextField(ListType);
    string DataValueField = ListService.GetDataValueField(ListType);

    if (string.IsNullOrWhiteSpace(CascadeFromField_SelectedValueFunction) == false && string.IsNullOrWhiteSpace(CascadeFromField))
    {
        throw new Exception("CascadeFromField_SelectedValueFunction was specified, but CascadeFromField was not specified");
    }

    if (string.IsNullOrWhiteSpace(ParamFunction) == false && string.IsNullOrWhiteSpace(CascadeFromField_SelectedValueFunction) == false)
    {
        throw new Exception("ParamFunction was specified as well as CascadeFromField_SelectedValueFunction, only one of these can be used");
    }

    if (string.IsNullOrWhiteSpace(CascadeFromField_SelectedValueFunction) == false) //we want to use the CascadeFromField_SelectedValueFunction to populate a parameter value and pass it to server
    {
        if (string.IsNullOrWhiteSpace(Param1)) //if first param is unspecified
        {
            Param1 = CascadeFromField_SelectedValueFunction + "()";
        }
        else if (string.IsNullOrWhiteSpace(Param2)) //if 2nd param is unspecified
        {
            Param1 = "\"" + Param1 + "\""; //we need to add quotation marks so the value is seen as a string in javascript and not a variable or method
            Param2 = CascadeFromField_SelectedValueFunction + "()";
        }
        else if (string.IsNullOrWhiteSpace(Param3)) //if 3rd param is unspecified
        {
            Param1 = "\"" + Param1 + "\""; //we need to add quotation marks so the value is seen as a string in javascript and not a variable or method
            Param2 = "\"" + Param2 + "\""; //we need to add quotation marks so the value is seen as a string in javascript and not a variable or method
            Param3 = CascadeFromField_SelectedValueFunction + "()";
        }
        ParamFunction = builtParamFunction; //param values will be converted into javascript and returned back to server as a function
    }
    string noDataTemplateID = "noDataTemplateID" + uniqueName;
}


<script id="@noDataTemplateID" type="text/x-kendo-tmpl">
    <div>
        No data found. Do you want to add new item - '#: instance.input.val() #' ?
    </div>
    <br />
    <button class="k-button" onclick="addNew('#: instance.element[0].id #', '#: instance.input.val() #')">Add new item</button>
</script>


<script>
    function hint(element) {
        return element.clone().addClass("hint");
    }

    function placeholder(element) {
        return element.clone().addClass("placeholder").text("drop here");
    }

</script>

@if (ShowLabel)
{
    @Html.LabelFor(x => x)
}
@(Html.Kendo().MultiSelectFor(m => m)
            .DataTextField(DataTextField)
            .DataValueField(DataValueField)
            .NoDataTemplateId(noDataTemplateID)

        .Value(defaultValue)
        .HighlightFirst(true)

        .Filter(FilterType.StartsWith)

        .DataSource(source =>
        {
            source.Read(read =>
            {
                read.Action("Read", "List", new { ListType = ListType, Param1 = Param1, Param2 = Param2, Param3 = Param3 });

            });
        })
        .HtmlAttributes(new {id = id })
)


@(Html.Kendo().Sortable()
    .For("#" + id + "_taglist")
    .HintHandler("hint")
    .PlaceholderHandler("placeholder")
)



@using Models;

<script type="text/kendo" id="usersTemplate">

    #for(var i = 0; i < data.length; i++){#
    #:data[i].Description#
    #if(i < (data.length - 1)) { #
    #:", "#
    #}#
    #}#

</script>

<script type="text/javascript">

    var usersTemplate = kendo.template($("#usersTemplate").html(), { useWithBlock: false });
</script>


<div id="content">
    <!-- .container-fluid -->
    @(Html.Kendo().Grid<ApprovalGroupViewModel>()
            .Name("grid_approvalGroups")
            .Columns(columns =>
            {
                columns.Command(command =>
                {
                    command.Destroy();

                }).Width(150);
                columns.Bound(e => e.GroupID).Visible(false);
                columns.Bound(e => e.GroupName);
                columns.Bound(e => e.Users).ClientTemplate("#=usersTemplate(Users)#").Sortable(false);


            })

            .Pageable() //Enable the paging.
            .Sortable() //Enable the sorting.
            .Editable(editable => editable.Mode(GridEditMode.InCell))
            .ToolBar(toolbar =>
            {
                toolbar.Create();
                toolbar.Save();
            })
            .DataSource(datasource => datasource
                .Ajax()
                .PageSize(10)
                .Batch(true)
                .Model(model =>
                {
                    model.Id(m => m.GroupID);
                    model.Field(m => m.Users).DefaultValue(new List<UserIDViewModel>());

                })
                .Read(read => read.Action("Read", "WFApprovalGroup"))
                .Create(c => c.Action("Create", "WFApprovalGroup"))
                .Update(c => c.Action("Update", "WFApprovalGroup"))
                .Destroy(c => c.Action("Delete", "WFApprovalGroup"))
            )
    )
</div>

[Stefan]

Hello Alex,

The described result is expected because the Sortable widget is only re-arranging the visible DOM elements, not the actual values of the MultiSelect.

I can suggest submitting a feature request for sorting the MultiSelect values and based on its popularity we may implement it in a future release:

http://kendoui-feedback.telerik.com/forums/127393-kendo-ui-feedback/category/170292-dropdowns

Regards,
Stefan
Telerik by Progress
