Multiple Series on a bar chart
1 Answer 29 Views
This is a migrated thread and some comments may be shown as answers.
Philip
Top achievements
Rank 1
Philip asked on 10 Feb 2016, 04:07 PM

Hi,

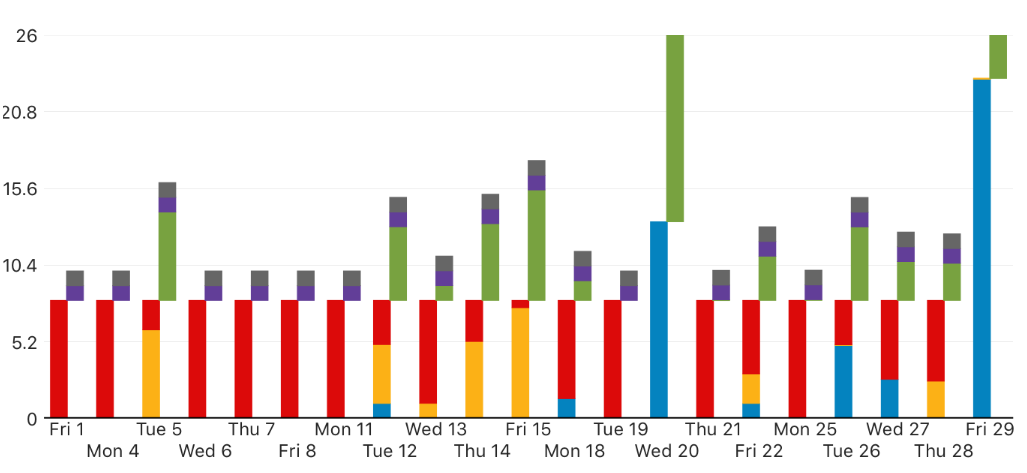

 I am trying to create a stacked bar chart 2 separate columns for each data point starting from 0. Attached is what i have managed to achieve. I the second stack group to start from 0. Any suggestions on how to do this? I have set the first series of the second stack of data (the green one) to as combinemode.cluster which has moved the green data to start from zero however the purple and grey elements then just hover in a 3rd column at the same height as they are in the attached.

 Also the green bar is as  tall as the blue+yellow combined, however the chart UI doesn't seem to be auto sizing the chart correctly for this view, so there could be a bug here.

Thanks in advance



Phil



1 Answer, 1 is accepted

Sort by
0
Ves
Telerik team
answered on 15 Feb 2016, 07:40 AM
Hi Philip,

I am afraid, this is a bug in the control. The fix will be included in our next release. While there is no fixed date for it, we expect to release one within a month.

Best regards,
Ves
Telerik
