Hi All,
Status (string)
Stage (string)
Eatimated Revenue (Double)
Whenever i use group data with Stage or status and create line chart it's give me the POINT
DOESN'T display line between two POINT. I want to display line with different color according to group data.
SeriesMapping seriesMapping = new SeriesMapping();
if (listOpp != null)
{
seriesMapping.SeriesDefinition = new LineSeriesDefinition();
if (ddlchartby.SelectedItem.ToString() == "Status")
{
seriesMapping.GroupingSettings.GroupDescriptors.Add(new ChartGroupDescriptor("Status"));
seriesMapping.ItemMappings.Add(new ItemMapping("Status", DataPointMember.XCategory));
seriesMapping.ItemMappings.Add(new ItemMapping("Status", DataPointMember.YValue, ChartAggregateFunction.Count));
}
else if (ddlchartby.SelectedItem.ToString() == "Stage")
{
seriesMapping.GroupingSettings.GroupDescriptors.Add(new ChartGroupDescriptor("Stage"));
seriesMapping.ItemMappings.Add(new ItemMapping("Stage", DataPointMember.XCategory));
seriesMapping.ItemMappings.Add(new ItemMapping("Stage", DataPointMember.YValue, ChartAggregateFunction.Count));
}
radChart.SeriesMappings.Clear();
radChart.SeriesMappings.Add(seriesMapping);
List<CampaignChartModel> listchart = new List<CampaignChartModel>();
foreach (CrmOpportunity opp in listOpp)
{
listchart.Add(new CampaignChartModel(Convert.ToDouble(opp.EstimatedRevenue), opp.Status, opp.Stage));
}
this.radChart.ItemsSource = listchart;
}
I have attached two image

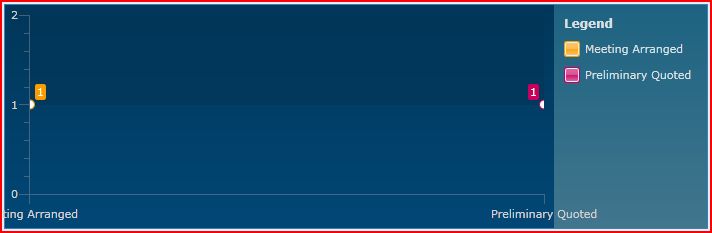

LINE-CHART.jpg - I get

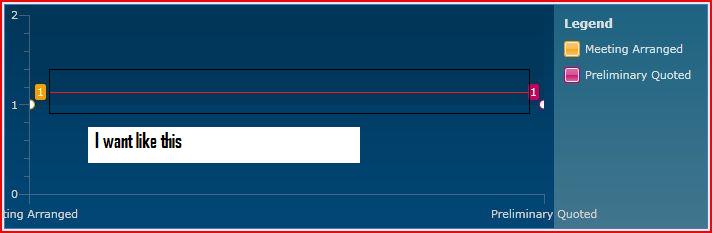

LINE-CHART-COPY.jpg - I want
Thanks,
Status (string)
Stage (string)
Eatimated Revenue (Double)
Whenever i use group data with Stage or status and create line chart it's give me the POINT
DOESN'T display line between two POINT. I want to display line with different color according to group data.
SeriesMapping seriesMapping = new SeriesMapping();
if (listOpp != null)
{
seriesMapping.SeriesDefinition = new LineSeriesDefinition();
if (ddlchartby.SelectedItem.ToString() == "Status")
{
seriesMapping.GroupingSettings.GroupDescriptors.Add(new ChartGroupDescriptor("Status"));
seriesMapping.ItemMappings.Add(new ItemMapping("Status", DataPointMember.XCategory));
seriesMapping.ItemMappings.Add(new ItemMapping("Status", DataPointMember.YValue, ChartAggregateFunction.Count));
}
else if (ddlchartby.SelectedItem.ToString() == "Stage")
{
seriesMapping.GroupingSettings.GroupDescriptors.Add(new ChartGroupDescriptor("Stage"));
seriesMapping.ItemMappings.Add(new ItemMapping("Stage", DataPointMember.XCategory));
seriesMapping.ItemMappings.Add(new ItemMapping("Stage", DataPointMember.YValue, ChartAggregateFunction.Count));
}
radChart.SeriesMappings.Clear();
radChart.SeriesMappings.Add(seriesMapping);
List<CampaignChartModel> listchart = new List<CampaignChartModel>();
foreach (CrmOpportunity opp in listOpp)
{
listchart.Add(new CampaignChartModel(Convert.ToDouble(opp.EstimatedRevenue), opp.Status, opp.Stage));
}
this.radChart.ItemsSource = listchart;
}
I have attached two image
LINE-CHART.jpg - I get
LINE-CHART-COPY.jpg - I want
Thanks,
8 Answers, 1 is accepted
0
Tim
Top achievements
Rank 1
answered on 10 Feb 2011, 04:25 PM
I think you're missing something. Don't you have some kind of "value" for the YAxis? For example, Stage and Status are probably both "textual" data. You need some kind of numerical data field (value?). In which case you can add multiple Groupings (ex. Group By Stage, Status and YAxis = Total of Value field). What you're doing here is not how the chart should be used (unless of course both Stage and Status columns of your data source are the number of items in those Stages and Status, but even then your chart won't make sense).
My suggestion is to add a new field to your data source "value" or "ItemCount" and bind that to the YAxis.
My suggestion is to add a new field to your data source "value" or "ItemCount" and bind that to the YAxis.
0
Dhaval
Top achievements
Rank 1
answered on 11 Feb 2011, 01:55 PM
Hi,
Thanks for your quick reply.
Here is my code :
Here output will be fine but i have only one issue
it's display points which are not connected with line
I have also try
Thanks for your quick reply.
Here is my code :
<
UserControl
x:Class
=
"SilverlightApplication3.line"
xmlns:telerikChart
=
"clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.Charting"
mc:Ignorable
=
"d"
d:DesignHeight
=
"300"
d:DesignWidth
=
"400"
>
<
Grid
x:Name
=
"LayoutRoot"
Background
=
"White"
>
<
telerikChart:RadChart
x:Name
=
"radChart"
d:LayoutOverrides
=
"Width, Height"
BorderThickness
=
"5"
/>
</
Grid
>
</
UserControl
>
SeriesMapping seriesMapping =
new
SeriesMapping();
seriesMapping.SeriesDefinition =
new
LineSeriesDefinition();
seriesMapping.GroupingSettings.GroupDescriptors.Add(
new
ChartGroupDescriptor(
"Status"
));
//seriesMapping.GroupingSettings.GroupDescriptors.Add(new ChartGroupDescriptor("Stage"));
//seriesMapping.GroupingSettings.ShouldCreateSeriesForLastGroup = false;
seriesMapping.ItemMappings.Add(
new
ItemMapping(
"Status"
, DataPointMember.XCategory));
seriesMapping.ItemMappings.Add(
new
ItemMapping(
"Status"
, DataPointMember.YValue, ChartAggregateFunction.Count));
radChart.SeriesMappings.Clear();
radChart.SeriesMappings.Add(seriesMapping);
//public ProductSales(Double estimaterevenue,string stage , string status)
List<ProductSales> persons =
new
List<ProductSales>();
persons.Add(
new
ProductSales(1000,
"Preliminary Quoted"
,
"In Progress"
));
persons.Add(
new
ProductSales(3000,
"Preliminary Quoted"
,
"In Progress"
));
persons.Add(
new
ProductSales(2000,
"Meeting Arranged"
,
"Not Started"
));
persons.Add(
new
ProductSales(5000,
"Meeting Arranged"
,
"In Progress"
));
persons.Add(
new
ProductSales(7000,
"Preliminary Quoted"
,
"Not Started"
));
persons.Add(
new
ProductSales(8000,
"Rewise Quote"
,
"Completed-won"
));
persons.Add(
new
ProductSales(12000,
"Rewise Quote"
,
"Not Started"
));
persons.Add(
new
ProductSales(5000,
"Meeting Arranged"
,
"Not Started"
));
this
.radChart.ItemsSource = persons;
Here output will be fine but i have only one issue
it's display points which are not connected with line
I have also try
//seriesMapping.GroupingSettings.GroupDescriptors.Add(new ChartGroupDescriptor("Stage"));
//seriesMapping.GroupingSettings.ShouldCreateSeriesForLastGroup = false;
add this code above source code but not get proper output
Thanks,
0
Dhaval
Top achievements
Rank 1
answered on 18 Feb 2011, 10:53 AM
Hi All,
If any one got the same issue so pls help me on that,
It's very urgent.
I have posted sample xaml and c# file code, so you can easily identify my issue.
Thanks,
If any one got the same issue so pls help me on that,
It's very urgent.
I have posted sample xaml and c# file code, so you can easily identify my issue.
Thanks,
0
Hello Dhaval,
The dots in your sample are not connected because they are from two different Line series, with one point each. You can achieve the desired behavior by creating one Line series with two points and use the LegendDisplayMode property, instead of grouping. Please, note that you would also need a numeric value for the mapping to DataPointMember.YValue. Here is a sample code snippet:
Hope this helps.
Greetings,
Nikolay
the Telerik team
The dots in your sample are not connected because they are from two different Line series, with one point each. You can achieve the desired behavior by creating one Line series with two points and use the LegendDisplayMode property, instead of grouping. Please, note that you would also need a numeric value for the mapping to DataPointMember.YValue. Here is a sample code snippet:
SeriesMapping seriesMapping = new SeriesMapping();
seriesMapping.SeriesDefinition = new LineSeriesDefinition();
seriesMapping.ItemMappings.Add(new ItemMapping("Stage", DataPointMember.XCategory));
seriesMapping.ItemMappings.Add(new ItemMapping("Score", DataPointMember.YValue));
seriesMapping.ItemMappings.Add(new ItemMapping("Stage", DataPointMember.LegendLabel));
seriesMapping.SeriesDefinition.LegendDisplayMode = LegendDisplayMode.DataPointLabel;
RadChart1.SeriesMappings.Add(seriesMapping);
Hope this helps.
Greetings,
Nikolay
the Telerik team
0
Dhaval
Top achievements
Rank 1
answered on 21 Feb 2011, 12:04 PM
Hi Nikolay,
I got your point but i want to display line in between two point which is from different Line series with different line color.
Thanks,
I got your point but i want to display line in between two point which is from different Line series with different line color.
Thanks,
0
Hello Dhaval,
Please, find attached a small sample project, which demonstrates how to achieve this. Attached is also the output. Please, note that you cannot connect the labels of the series, but only the pointmarks.
All the best,
Nikolay
the Telerik team
Please, find attached a small sample project, which demonstrates how to achieve this. Attached is also the output. Please, note that you cannot connect the labels of the series, but only the pointmarks.
All the best,
Nikolay
the Telerik team
