The problem is that the call to _CustomBinding method never happens and always calls my DisplayStaticLists method. Even though I have added a workaround for this, I still do not get the desired result.
My controller code is as follows:
public
ActionResult DisplayStaticLists(string table)
{
string username = Session["UserName"] as string ?? String.Empty; ;
string password = Session["Password"] as string ?? String.Empty; ;
int count = -1;
// Creating dummy data to bind the grid
var model = MetaqueryService.LoadStaticLists(username, password, table, out count);
if (string.IsNullOrEmpty(table)) ViewData["AllSearches"] = "true";
else ViewData["AllSearches"] = "false";
　
if (Request.IsAjaxRequest())
{
object Data = new
{
centerContent =
this.RenderPartialViewToString("DisplayStaticLists", model),
taskpad =
String.Empty,
buttons =
String.Empty,
title =
"Static Lists"
};
return Json(Data, JsonRequestBehavior.AllowGet);
}
else
{
return View ( new GridModel{Data = model});
}
}
[
GridAction(EnableCustomBinding = true)]
public ActionResult _CustomBinding(GridCommand command, string table)
{
　
string username = Session["UserName"] as string ?? String.Empty; ;
string password = Session["Password"] as string ?? String.Empty; ;
int count = -1;
var model = MetaqueryService.LoadStaticLists(username, password, table, out count);
if (string.IsNullOrEmpty(table)) ViewData["AllSearches"] = "true";
else ViewData["AllSearches"] = "false";
　
//return Json(model, JsonRequestBehavior.AllowGet);
return View(new GridModel { Data = model });
}
public static partial class ControllerExtensions
{
public static string RenderPartialViewToString(this ControllerBase controller, string partialPath, object model)
{
if (string.IsNullOrEmpty(partialPath))
partialPath = controller.ControllerContext.RouteData.GetRequiredString(
"action");
controller.ViewData.Model = model;
using (StringWriter sw = new StringWriter())
{
ViewEngineResult viewResult = ViewEngines.Engines.FindPartialView(controller.ControllerContext, partialPath);
ViewContext viewContext = new ViewContext(controller.ControllerContext, viewResult.View, controller.ViewData, controller.TempData, sw);
// copy model state items to the html helper
foreach (var item in viewContext.Controller.ViewData.ModelState)
if (!viewContext.ViewData.ModelState.Keys.Contains(item.Key))
{
viewContext.ViewData.ModelState.Add(item);
}
　
viewResult.View.Render(viewContext, sw);
return sw.GetStringBuilder().ToString();
}
}
}
My View Code is as follows:
DisplayStaticLists.cshtml
<
script type="text/javascript">
function onSelect(e) {
var tabstrip = $("#TabStrip").data("tTabStrip");
var item = $("li", tabstrip.element)[$("#itemIndex").val()];
tabstrip.select(item);
}
</script>
　
@{
Layout =
"";
}
@(Html.Telerik().TabStrip()
.Name(
"TabStrip")
.SelectedIndex(1)
.ClientEvents(events => events
.OnSelect(
"onSelect"))
.Items(tabs =>
{
tabs.Add()
.Text(
"My Static Lists")
.Content(@<text>
@Html.Partial(
"MyStaticListGrid")
</text>);
tabs.Add()
.Text(
"All Static Lists")
.Content(@<text>
@Html.Partial(
"StaticListGrid")
</text>);
})
)
StaticListGrid.cshtml
　
　
@model
IEnumerable<CdcSoftware.Pivotal.ThinClient.Common.ViewBag.StaticListViewModel>
　
@{
Layout =
"";
}
@(Html.Telerik().Grid(Model)
.Name(
"Grid")
.Columns(columns =>
{
columns.Bound(o => o.Name).Width(120);
if (ViewData["AllSearches"].ToString() != "false") columns.Bound(o => o.ListType);
columns.Bound(o => o.Permission);
columns.Bound(o => o.CreatedByEmployeeName);
columns.Bound(o => o.CreateDate);
columns.Bound(o => o.EditedByEmployeeName);
columns.Bound(o => o.EditDate);
})
// .DataBinding(dataBinding => dataBinding.Server().Select("_CustomBinding", "Metaquery"))
　
.DataBinding(dataBinding => dataBinding.Ajax().Select(
"_CustomBinding",
"Metaquery"))
.HtmlAttributes(
new { style = "text-align:left" })
//.RowAction(row =>
//{
// row.HtmlAttributes["style"] = "font-weight: normal; font-size:1em; font-family:times;";
//})
.Sortable(sorting => sorting
.SortMode(
GridSortMode.SingleColumn))
.Scrollable(scroll => scroll.Height(
"385px"))
.Groupable()
.EnableCustomBinding(
true)
//.Filterable()
)
MyStaticListGrid.cshtml
　
　
　
　
@model
IEnumerable<CdcSoftware.Pivotal.ThinClient.Common.ViewBag.StaticListViewModel>
@{
Layout =
"";
}
@(Html.Telerik().Grid(Model)
.Name(
"Grid")
.Columns(columns => columns.AutoGenerate(column =>
{
columns.Bound(o => o.Name).Width(120);
if (ViewData["AllSearches"].ToString() != "false") columns.Bound(o => o.ListType).Width(200);
}))
.DataBinding(dataBinding => dataBinding.Server().Select(
"_CustomBinding",
"Metaquery"))
.HtmlAttributes(
new { style = "text-align:left"})
//.RowAction(row =>
//{
// row.HtmlAttributes["style"] = "font-weight: normal; font-size:1em; font-family:times;";
//})
.Sortable()
.Scrollable(scroll => scroll.Height(
"385px"))
.Groupable()
.Filterable(filtering => filtering.Filters(filters =>
{
filters.Add(o => o.Permission).IsEqualTo(
"Owner");
}))
)
Please let me what's the issue
3 Answers, 1 is accepted
Your grid configuration looks ok. The behavior which you observe may occur of the grid client-side object is not properly initialized. This may occur for two reasons:
- There are JavaScript errors
- The JavaScript files required by the grid may not be loaded. You can inspect the generated output HTML to verify this.
In any case we could be more helpful if you send us a running sample which reproduces the problem.
Atanas Korchev
the Telerik team
Rank 1
The problem I am facing is as follows:

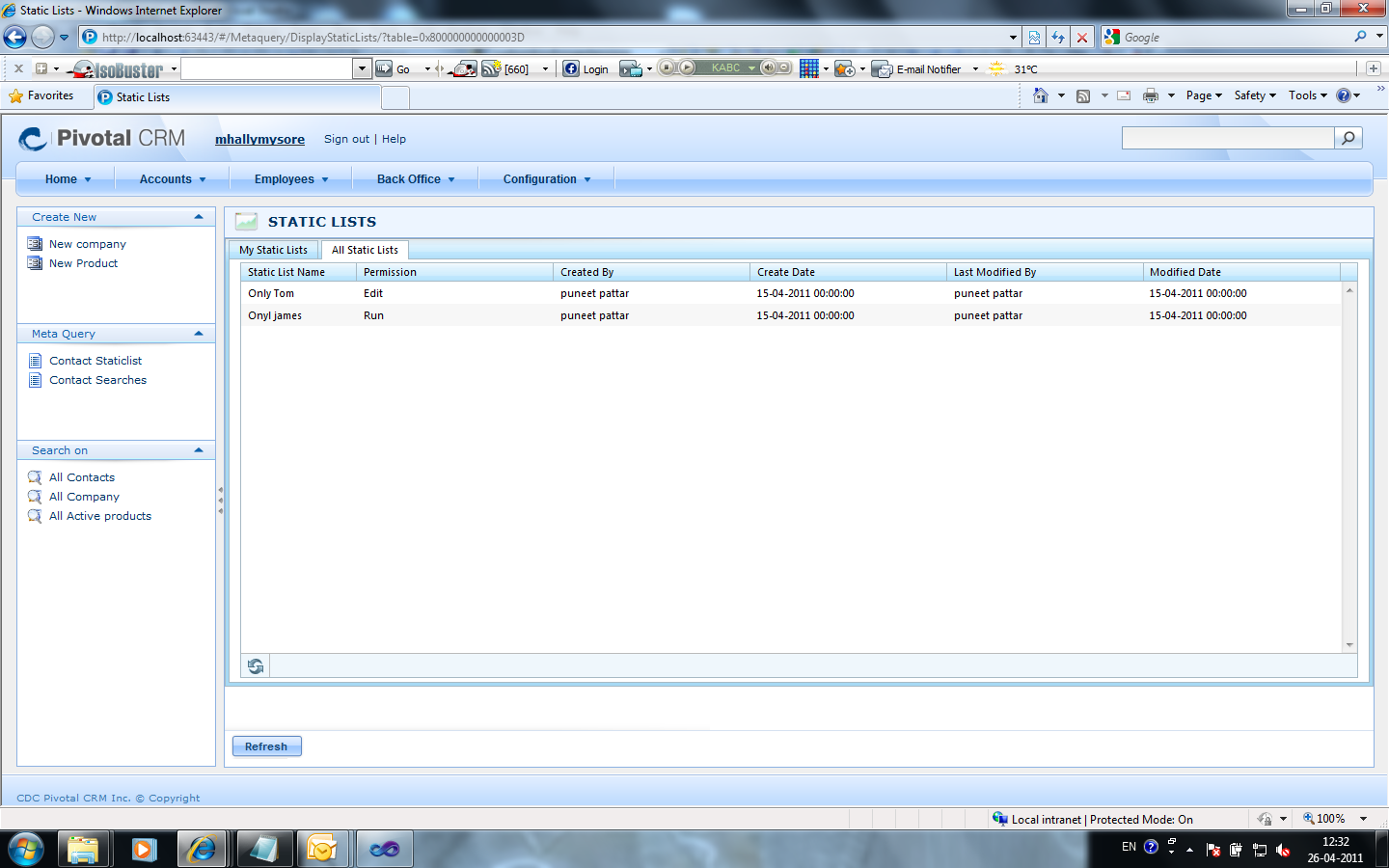

The requirement is that on the first call to the controller method DisplayStaticLists, I am returning a json data which is being rendered in the grid which is displayed in the center content area . The other items in the view like navigation and taskpad items are displayed correctly (see screenshot) When I click on one of the column headers to sort the data the following problems occur:

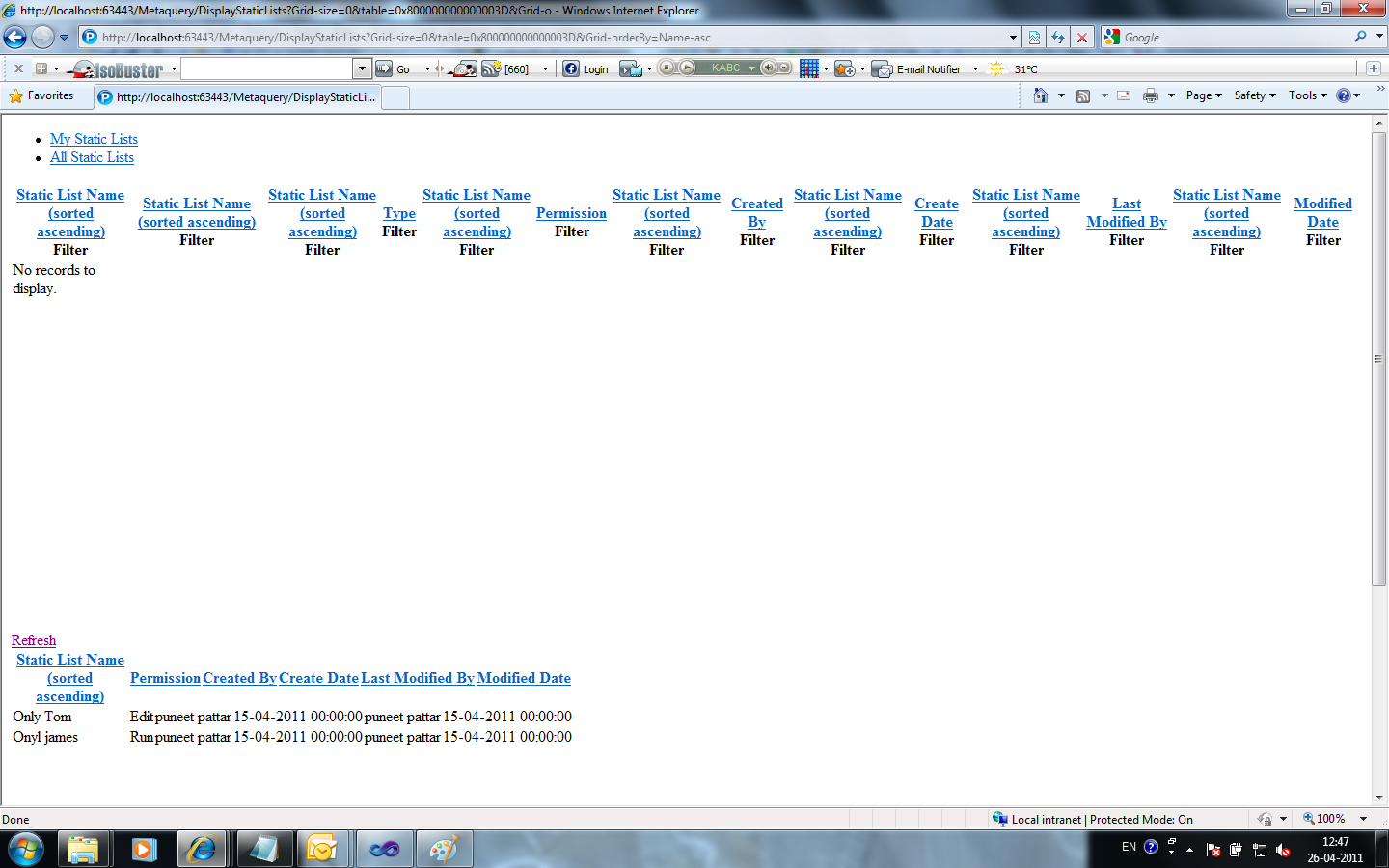

1) If I use the Ajax binding the call never comes to _CustomBinding method but always comes to DisplayStaticLists . As a work around I added the conditional checks in the DisplayStaticLists method. But the problem is when I return the view, the gird is never displayed in the center content area but is displayed as a seperate page without any navpad / taskpad as required. Also the grid is not properly formatted.(see screen shot - griddisplayoncolumheaderclick.png)
2) If I try returning Json, a save as dialog is popped up.
3) If I use Server binding, the call does come to _CustomBinding method but the result is same as above.
Please let me know what the issue is
I suspect that you are facing this issue. You need to manually register the JavaScript files required by the grid. We also have a code library project showing how to load a grid via ajax inside a tabstrip.
Best wishes,Atanas Korchev
the Telerik team
