Issue with axis labels when set to MultiLine fit and zoomed

1 Answer 12 Views
Chart
This is a migrated thread and some comments may be shown as answers.
Stephen
Top achievements
Rank 1
Stephen asked on 25 Sep 2013, 04:53 PM
Hi,

I have labels enabled on the x-axis, and have set the Axis.LabelFitMode = AxisLabelFitMode.MultiLine. This displays fine for some data, but if you also have scrolling/zooming turned on then the label positions become messed up as you zoom in and scroll to the right. The further right you go, the more lines are used for the labels (even though they can easily fit onto a single line at this zoom level). See the below images for specific details.

Image 1 - Zoomed in, scrolled left
http://i.imgur.com/kdViVa0.png

Image 2 - Zoomed in, scrolled right
http://i.imgur.com/xEdc6Sn.png

I'm wondering is there any way to get around this or will it be fixed?

1 Answer, 1 is accepted

Sort by
0
Petar Kirov
Telerik team
answered on 30 Sep 2013, 05:31 PM
Hi Stephen,

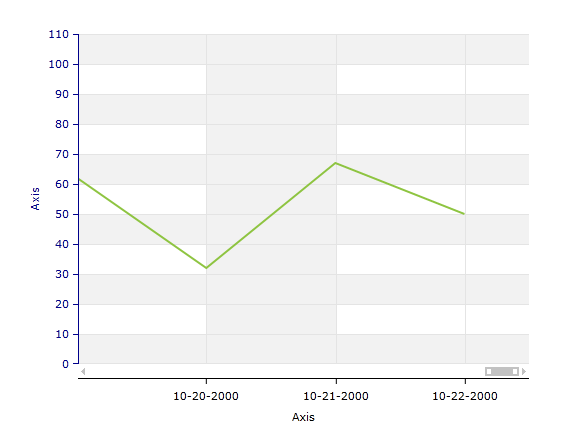

Given the provided information, I was not able to reproduce the issue you are reporting. I have attached my test project along with screenshots of it for reference. In order to help you we will need to observe this on our side so we can investigate it. It would be best if you could provide a runable project (perhaps a modified version of the one I am attaching).

Thanks for the understanding.

Regards,
Petar Kirov
Telerik
