[Solved] In-line grid edit does not use values present in grid before clicking edit

[Stewart]

I'm trying to use the MVC Telerik Grid with a dynamic number of server-bound columns, and in-line Ajax editing. I've gotten the values to appear correctly in the dynamic columns, but when I click "edit" for the in-line editing, the edit value I get is an "empty" value for the field. For example if the grid shows 123.00 for a decimal, I get 0.00 when I edit it. If I then cancel the edit, the fields are blanked - not 123.00, or 0.00, but blank. I've attached sequential screenshots below

I'm using  Telerik v. 2011.1.315.340 on Visual Studio 2010, MVC 3.

Here's my grid instantiation. It's a series of grids inside a PanelBar - sorry for the extra noise.

<%
    Html.Telerik().PanelBar()
        .Name("PhaseEstimatesPanelBar")
        .Items(items =>
               {
                   int phaseIndex = 0;
                   foreach (var initiativePhase in Model.InitiativePhases)
                   {
                       // HACK - next unused funding source
                       InitiativePhaseEstimate initiativePhaseEstimate = initiativePhase.GetInitiativePhaseEstimate();
                       FundingSource nextUnusedFundingSource = AllPossibleFundingSources.First();
                       if (initiativePhaseEstimate != null)
                       {
                           var usedFundingSources = initiativePhaseEstimate.GetFundingSources();
                           nextUnusedFundingSource = AllPossibleFundingSources.First(fs => !usedFundingSources.Contains(fs));
                       }

                       // HTML of Button for adding a new Estimate
                       var newEstimateButtonLink = SitkaRoute<InitiativeController>.BuildLinkFromExpression(c => c.CreateFundingSourceEstimateRow(initiativePhase.InitiativePhaseID, nextUnusedFundingSource.FundingSourceID), "Add Funding Source");

                       // This is grotesque, and deserves an explanation.
                       //
                       // Telerik Grid wants to call a default, parameterless constructor on the Model type of the grid, in this case FundingSourceEstimateRow. But my first crack at a parameterless constructor just
                       // had a blank List of BudgetEstimates, which meant that the generated AJAX template did not have enough columns. So instead we set this static just-in-time before the parameterless constructor
                       // is called in the grid so that it has the correct BudgetEstimate columns.
                       //
                       // The Default constructor is the *ONLY* member that needs these, and they should be otherwise ignored.
                       // -- SLG
                       FundingSourceEstimateRow.BudgetEstimateTemplatesForDefaultConstructor = FundingSourceEstimateRow.GetBlankBudgetEstimatesForInitiativePhaseEstimate(initiativePhaseEstimate, nextUnusedFundingSource);

                       // Build grid control for the initiative phases
                       var rowsForInitiativePhase = GetFundingSourceEstimateRows(initiativePhase);
                       var gridContent = Html.Telerik().Grid<FundingSourceEstimateRow>(rowsForInitiativePhase)
                           .Name(string.Format("InitiativePhaseEstimatimesGrid_PhaseID{0}", initiativePhase.ID))
                           .ToolBar(commands => commands.Insert())
                           .DataKeys(keys => keys.Add(x => x.ID))
                           .DataBinding(f => f.Ajax()
                                            .Select("EstimatesGridEditSelect", "Initiative")
                                            .Insert("EstimatesGridInsert", "Initiative")
                                            .Update("EstimatesGridSave", "Initiative")
                                            .Delete("EstimatesGridDelete", "Intiative"))
                           .Columns(columns =>
                                    {
                                        //columns.Bound(c => c.InitiativePhaseEstimateID).Hidden();

                                        columns.Command(commands =>
                                        {
                                            commands.Edit().ButtonType(GridButtonType.BareImage);
                                            commands.Delete().ButtonType(GridButtonType.BareImage);
                                        }).Width(200).Title("Actions");

                                        //columns.Bound(c => c.ID).Title("Fund Estimate ID");
                                        //columns.Bound(c => c.FundingSource.FundingSourceID).Title("Funding Source ID");
                                        columns.Bound(c => c.FundingSource.HierarchicalDisplayName).Title("Funding Source").Width(200);

                                        var phaseEstimate = initiativePhase.GetInitiativePhaseEstimate();
                                        if (phaseEstimate != null)
                                        {
                                            var fiscalYearQuarters = phaseEstimate.InitiativePhase.GetFiscalQuarters();

                                            Action<int> addValueColumn = (i) =>
                                                                         {
                                                                             columns.Bound(u => u.BudgetEstimates[i].EstimatedBudget).Title(fiscalYearQuarters[i].DisplayName).Width(90);
                                                                         };

                                            int quarterColumnCount = fiscalYearQuarters.Count;
                                            for (int quarterIndex = 0; quarterIndex < quarterColumnCount; quarterIndex++)
                                            {
                                               addValueColumn(quarterIndex);
                                            }
                                        }


                                    })
                                    .Editable(editing => editing.Mode(GridEditMode.InLine))
                                    .Scrollable(scroll => scroll.Height(140));

                       // Only show the grid if there are existing BudgetEstimates for the Phase
                       string gridContentHtml = string.Empty;
                       if (initiativePhaseEstimate != null && initiativePhaseEstimate.BudgetEstimates.Any())
                       {
                           gridContentHtml = gridContent.ToHtmlString();
                       }

                       // Output Phase accordian item
                       items.Add()
                           .Text(initiativePhase.Name)
                           .HtmlAttributes(new { @id = string.Format("estimate_phase_{0}", phaseIndex) })
                           .Content(() => { %>
                                <%= newEstimateButtonLink %>
                                <%= gridContentHtml %>

                                <% if (initiativePhaseEstimate != null) %>
                                <% { %>
                                    <div style="text-align:top;">Estimate Assumptions:</div>
                                    <textarea rows='10' cols='118'><%: initiativePhaseEstimate.Assumptions%></textarea>
                                <% } %>

                                <div><button name='Save'>Save</button></div>


                           <% });

                       phaseIndex++;
                   }

               })
               .Render();

I've had the feeling now for a while (see the "grotesque hack" comment above) that I'm swimming upstream with this stuff - if a custom Ajax binding would be better, for example, please tell me.

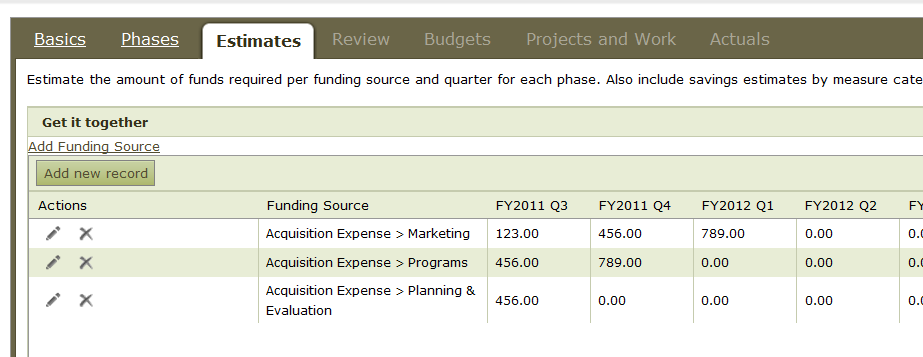

Still, I feel like what I've done so far should work - the proper values *are* being displayed on the grid, and clicking edit and cancel are entirely client-side issues - none of my code is being called when this fails.

Thanks in advance for any help.

[Stewart]

It appears that my issue is that the grid is pulling the values being edited not from the grid, but from the template object I instantiated just for the purposes of giving the grid the correct number of columns.

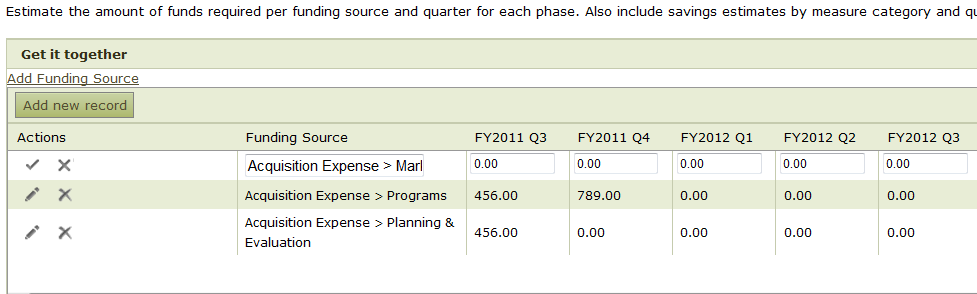

In other words, if I change the EstimatedBudget being set in the default constructor to "888.88", but the value in the actual object is "111.00'", I will see 111.00 when the grid outputs, but 888.88 when I click edit, and 111.00 if I click cancel.  Here's the snippet of the relevant script where I believe the value presented on edit is being lifted from:

"member":"EstimatedBudget",
"type":"Number",
"editor":"\u003cinput class=\"text-box single-line\" id=\"BudgetEstimates_2__EstimatedBudget\"
 name=\"BudgetEstimates[2].EstimatedBudget\" type=\"text\" value=\"888.88\"
 /\u003e\u003cspan class=\"field-validation-valid\"
id=\"BudgetEstimates_2__EstimatedBudget_validationMessage\
"\u003e\u003c/span\u003e"},


the value="888.88" above is only output *ONCE*, for the entire grid, and will be used for any edit of that column, no matter which row! This means even if I were to somehow get my default constructor to have appropriate BudgetEstimate values for a single row, it would not have the appropriate values for other rows.

I originally read (http://www.telerik.com/community/forums/aspnet-mvc/grid/problems-with-mvc-grid-and-csla-object.aspx) that the grid wanted the default constructor "to instantiate a new object of the model type in order to render the editors using Html.EditorFor. " It seems like it is using it for more than type information, however.

I started down this road because of this post: http://www.telerik.com/community/forums/aspnet-mvc/grid/dynamically-added-columns-not-showing-data.aspx, but I don't understand what that poster is doing differently, or what impact a ClientTemplate might have on my issues.

Help appreciated.

[Stewart]

Adding a ClientTemplate to the addValueColumn column expression like so:



Action<int> addValueColumn = (i) =>
{
columns.Bound(u => u.BudgetEstimates[i].EstimatedBudget).Title(fiscalYearQuarters[i].DisplayName).ClientTemplate("<#= BudgetEstimates[" + i + "].EstimatedBudget #>").Width(90);

};

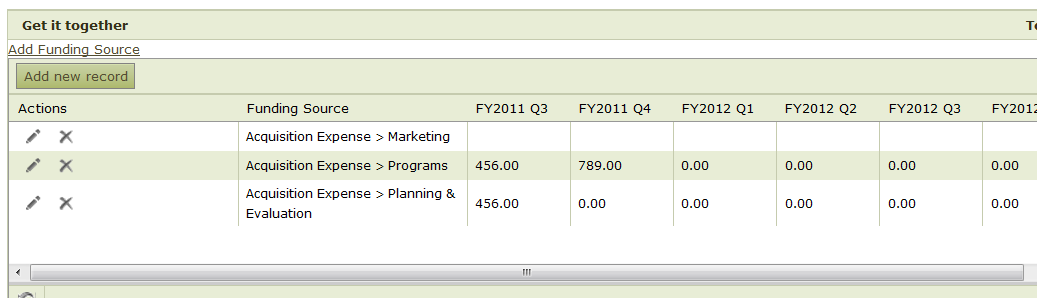

Appears to fix one problem - the clearing when I cancel an edit. With the ClientTemplate, the appropriate old values are restored. But it does not fix the clearing on edit.













[Stewart]

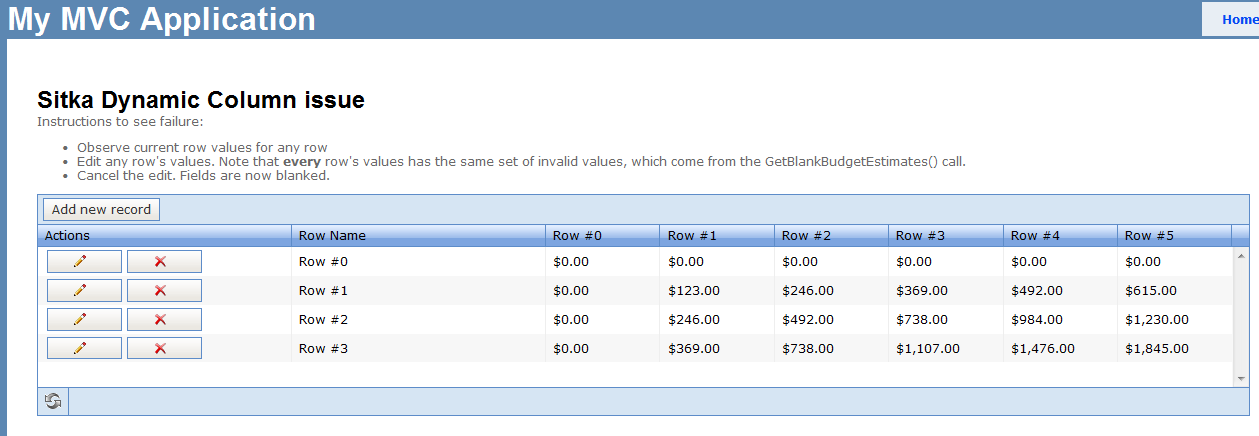

I am attaching a small sample project that demonstrates this issue, along with a screenshot.

I hope that someone can take some time to look at this issue.

[Atanas Korchev]

Hi Stewart,

 Thank you for providing a sample project.

 You have hit a limitation of the Grid. It didn't support indexer expressions such as

columns.Bound(u => u.BudgetEstimates[i].EstimatedBudget)

 when declaring bound columns.

 Fortunately I managed to add support for that. I am sending you updated project which should work as expected.

Regards,
Atanas Korchev
the Telerik team

[Stewart]

Thank you very much for trying to fix the issue. It does seem improved, but I still have issues with the project you attached.

When I click to edit a number in the field, it maintains the proper value in the editable field - great! But when I click the checkmark to save, I get a JavaScript error: " 'BudgetJsonThings.0' is null or not an object" inside jquery-1.5.1.min.js.

I thought at first this might be because I did not properly implement the ajax databinding functions, but this crash occurs without any calls being made to the controller.

Am I missing something, or is there something different about our environments?

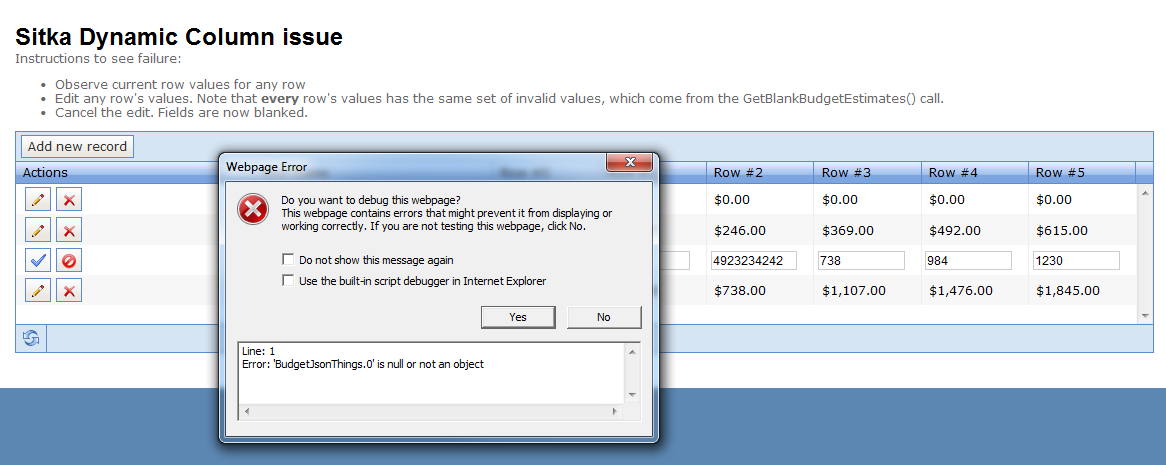

Thanks again. Screenshot attached.

[Stewart]

It turns out that the JS error happens on IE8 for us. Firefox 4 seems to make it through to the actual server call. I haven't tested other browsers.

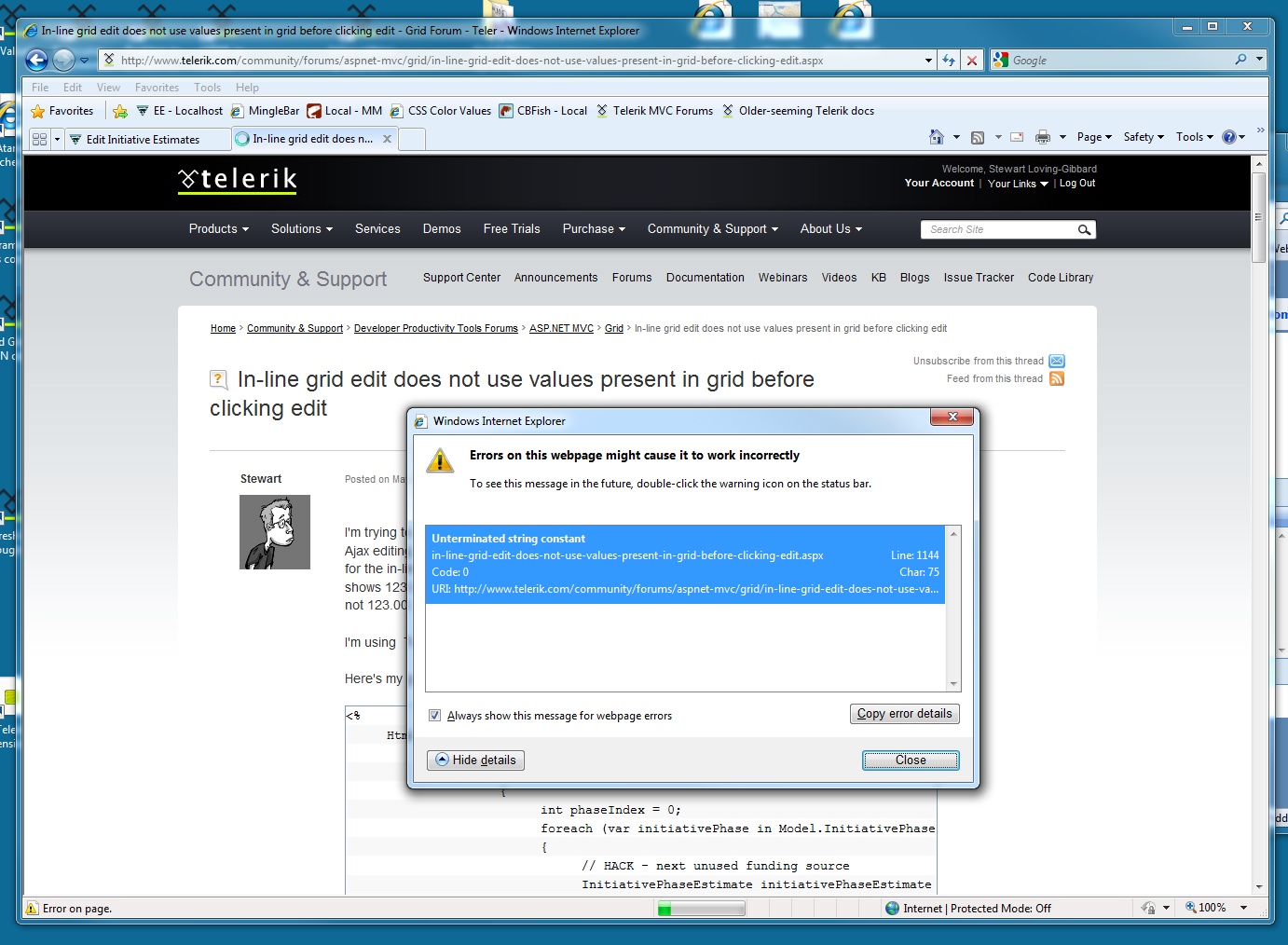

[ As a sidenote, are you aware that your forum throws repeated JS errors on every post under IE8? Check out the attached screenshot. ]

[Atanas Korchev]

Hi Stewart,

 I think the problem occurs because you have not implemented properly the Update action method - it returns different model. The JavaScript error is always thrown because of the  unexpected response.

Best wishes,
Atanas Korchev
the Telerik team

[Stewart]

" I think the problem occurs because you have not implemented properly the Update action method - it returns different model. The JavaScript error is always thrown because of the  unexpected"

You were absolutely correct about this. I was confused because I wasn't seeing the call in Fiddler, but normally we run against IIS, and not the ASP.NET Development Server as was in the sample. So when I couldn't see the call in Fiddler I assumed it wasn't happening. Once I set a breakpoint I could see that it was.

That aside, your fix worked great and we're very pleased. Thank you very much for the help.

[Mike]

Atanas,

You stated: "Fortunately I managed to add support for that. I am sending you updated project which should work as expected."

I went through the fixed sample but I'm not sure what you changed. I am having the same "indexer expressions"
problem on version 2012.1.214 without any luck.

Thanks!!

- Mike
