[Solved] How to remove space between to 0-January in X axis ?

[Saravanan]

Hi team,

i am binding month names (Jan,Feb.etc) in X axis from database,i am seeing space between 0 to January .please help me to remove space
here is my xaml code
 <telerik:RadChart x:Name="RadChart1" ItemsSource="{Binding ChartItems}">
            <telerik:RadChart.DefaultView>
                <telerik:ChartDefaultView>
                    <telerik:ChartDefaultView.ChartArea>
                        <telerik:ChartArea LegendName="legend">
                            <telerik:ChartArea.AxisY>
                                <telerik:AxisY AutoRange="False"
                                        MinorTicksVisibility="Collapsed">
                                </telerik:AxisY>
                            </telerik:ChartArea.AxisY>
                        </telerik:ChartArea>
                    </telerik:ChartDefaultView.ChartArea>
                    <telerik:ChartDefaultView.ChartLegend>
                        <telerik:ChartLegend x:Name="legend" />
                    </telerik:ChartDefaultView.ChartLegend>
                </telerik:ChartDefaultView>
            </telerik:RadChart.DefaultView>
            <telerik:RadChart.SeriesMappings>

                <telerik:SeriesMapping LegendLabel="customers travelled"
                        CollectionIndex="0">
                    <telerik:SeriesMapping.SeriesDefinition>
                        <telerik:SplineSeriesDefinition />
                    </telerik:SeriesMapping.SeriesDefinition>
                    <telerik:ItemMapping DataPointMember="XCategory"
                            FieldName="{Binding Month}" />
                    <telerik:ItemMapping DataPointMember="YValue"
                            FieldName="{Binding vRR}" />
                </telerik:SeriesMapping>
            </telerik:RadChart.SeriesMappings>
        </telerik:RadChart>

public class ChartValues
    {
         public double? vRR { get; set; }
                      public string Month { get; set; }
    }

here i am binding months from database


 foreach (var itemValue in item)
                        {
                            double data = itemValue.Sum(t => t.NumericValue);
                            cv = new ChartValues();
                            cv.vRR = data;
                            cv.Month = Convert.ToString(itemValue.First().Timestamp.ToString("MMM"));
                             ChartItems.Add(cv);


                        }

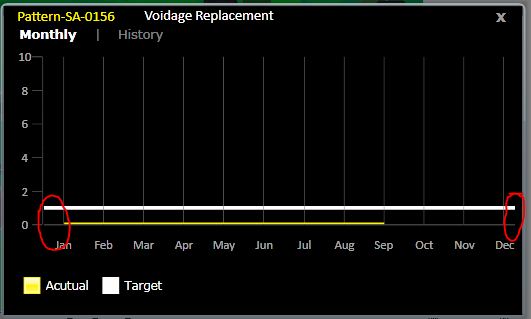

i have attached the screen shot,please find the attachement here.

[Nikolay]

Hello Saravanan,

It appears that the Axis Layout property has been set to Inside, which is why the Spline series does not begin from the chart origin. Setting the X-Axis Layout to Normal/Auto should remove the spaces.

You can see how the Axis Layout property works in this demo example. More information on the feature here.

Best wishes,
Nikolay
the Telerik team
