How to make radlistivew's dock to fill?

[Paul]

Hello,

I tried to use RadListView to make component just like user preference.

The idea are:

1. We have dynamic columns to display in a table (RadGridView)
2. We have a list of user preference for these columns and user can change the position of columns by change the position of user preference

Then in step 2, I tried to use RadListView to display a list of user preference with checkboxes, drag/ drop feature to support these requiredment

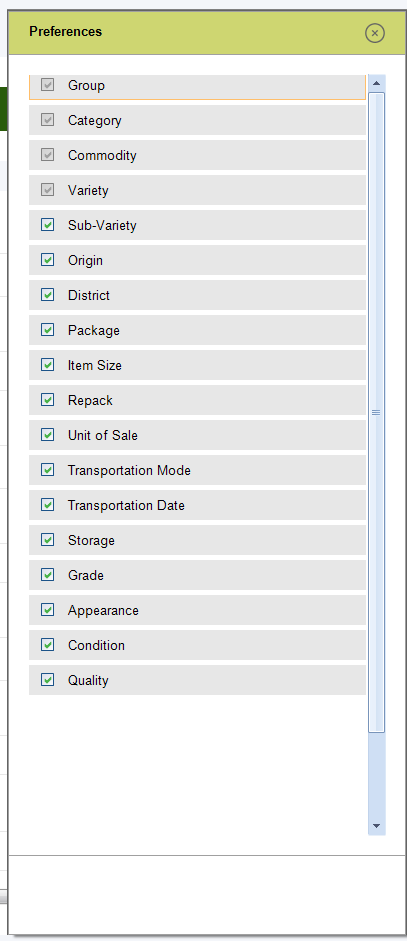

But when I open this RadListView, if there are many preferences (one preference is one column) then RadListView have a scrollbar and have padding bottom too long (attachment #1) although it have space to display items. Then I have to scroll down to view.

My question is, how to remove this long padding?

My video to demonstrate is: https://drive.google.com/file/d/0B-bxiBfBubRgSi1PRVRmWUV2YWs/view?usp=sharing

My code are:

private RadListView lvUserPreference = new RadListView();

// Styles
lvUserPreference.Dock = System.Windows.Forms.DockStyle.Fill;
lvUserPreference.Margin = new System.Windows.Forms.Padding(0);
lvUserPreference.Name = "lvUserPreference";
lvUserPreference.ListViewElement.DrawBorder = false;
lvUserPreference.ShowCheckBoxes = true;
lvUserPreference.ViewType = ListViewType.ListView;
lvUserPreference.AllowDragDrop = true;
lvUserPreference.Padding = new Padding(20);
lvUserPreference.Margin = Padding.Empty;
lvUserPreference.ItemSpacing = 15;
lvUserPreference.AllowEdit = false;
lvUserPreference.AutoScroll = true;

lvUserPreference.ListViewElement.DragDropService.PreviewDragStart -= OnPreviewDragStart;
lvUserPreference.ListViewElement.DragDropService.PreviewDragStart += OnPreviewDragStart;

lvUserPreference.ListViewElement.DragDropService.PreviewDragOver -= OnPreviewDragOver;
lvUserPreference.ListViewElement.DragDropService.PreviewDragOver += OnPreviewDragOver;

lvUserPreference.ListViewElement.DragDropService.PreviewDragDrop -= OnPreviewDragDrop;
lvUserPreference.ListViewElement.DragDropService.PreviewDragDrop += OnPreviewDragDrop;

lvUserPreference.VisualItemFormatting += OnVisualItemFormatting;

// Item formatting event
private void OnVisualItemFormatting(object sender, ListViewVisualItemEventArgs e)
{
    e.VisualItem.ToggleElement.Margin = new Padding(10);
    e.VisualItem.BackColor = ComponentSettings.DefaultBorderColor;
    e.VisualItem.GradientStyle = GradientStyles.Solid;
    e.VisualItem.Margin = new Padding(0);
    e.VisualItem.MinSize = new Size(200, 30);
    e.VisualItem.Font = ComponentSettings.DefaultFont;

    var itemAttrId = (int)e.VisualItem.Data.Value;
    var field = _fields.FirstOrDefault(x => x.AttrId == itemAttrId);
    if (field != null && (field.IsTreeField || field.IsRequired))
    {
        e.VisualItem.ToggleElement.Enabled = false;
    }
    else
    {
        e.VisualItem.ToggleElement.Enabled = true;
    }
}



Regard,

Paul

[Dimitar]

Hello Paul,

Remove the MinSize from the formatting event. You can set the item size like this:

lvUserPreference.ItemSize = new Size(200, 30);

In addition, I want to say that the grid supports this out of the box. Detailed information is available here: Column Chooser | RadGridView.

I hope this will be useful. Let me know if you have additional questions.

Regards,
Dimitar
Telerik by Progress

[Paul]

Hello Dimitar,

Thanks you for your help, it working well for me.

I will take a look at the feature: grid supports this out of the box

Regard,

Paul
