[Solved] How to know relative cell position in grid

[Avi]

Hello,

I am using telerik:RadGridView.

Outside the grid, at the bottom, I want to position a stackpanel exactly under it's 6th column.
Using margins does not help because it changes between screen resolutions.

How do I find the relative position for the stackpanel?

The code is like this :

<telerik:RadGridView>
........
</telerik:RadGridView>

<StackPanel
            Margin="0,10,170,0"
            HorizontalAlignment="Center"
            Orientation="Horizontal">
            <TextBlock VerticalAlignment="Center" Text="Total Balance:" />
            <Border VerticalAlignment="Top">
                        <TextBlock Width="100"
                                VerticalAlignment="Center"
                                FlowDirection="LeftToRight"
                                Padding="3"
                                Text="{Binding TotalPaymentBalance,  StringFormat='{}{0:C2}',Mode=OneWay}" />
                        </Border>
</StackPanel>

Thanks

[Vlad]

Hello,

 It will be better to use Footer property for this column to declare this StackPanel instead outside of the grid. More info about custom footers can be found on this demo.

Best wishes,
Vlad
the Telerik team

[Avi]

Hi,

I already used the footer for something else. I need the StackPanel outside the grid.

Is there any way to create multiple rows at the footer ? that will help.

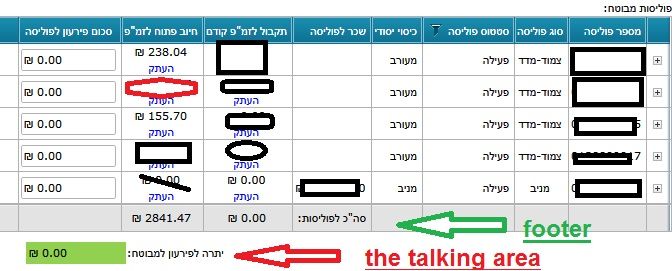

I am attaching the screen picture the red arrow is the problematic.

Thanks,

[Veselin Vasilev]

Hi Avi,

The footer property is of type object so you can place anything you want in it.
You can use the approach similar to this one.

Regards,
Veselin Vasilev
the Telerik team
