[Solved] How to insert texte anywhere in the Chart??

[1897]

Hi,

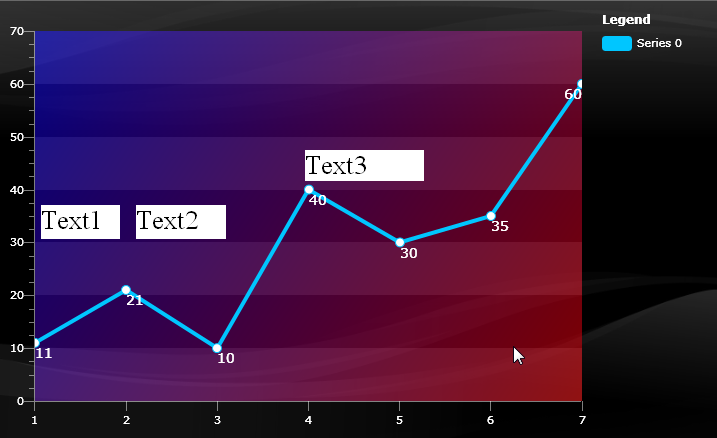

I need to insert text in the Chart (where I need) like on image:
help me please

[Yavor]

Hello,

 You can put a Canvas on top of RadChart with transparent background and position your text blocks on absolute coordinates.

Regards,
Yavor Ivanov
the Telerik team

[1897]

Hi Yavor Ivanov ,
this will work only if my text wiil be static!
but I need that this text position to be depending on something (eg:point )
thank.

[Yavor]

Hello 1897,

 You can use data bound ItemsControl instead of Canvas like this:

<ItemsControl x:Name="items">
            <ItemsControl.ItemTemplate>
                <DataTemplate>
                    <Path Fill="{Binding Path=Brush, Mode=OneWay}" >
                        <Path.Data>
                            <EllipseGeometry Center="{Binding Path=Point, Mode=OneWay}"
                                                     RadiusX="1.5"
                                                     RadiusY="1.5" />
                        </Path.Data>
                    </Path>
                </DataTemplate>
            </ItemsControl.ItemTemplate>
            <ItemsControl.ItemsPanel>
                <ItemsPanelTemplate>
                    <Grid />
                </ItemsPanelTemplate>
            </ItemsControl.ItemsPanel>
        </ItemsControl>

This will position ellipses on Point positions anywhere on the screen.

Kind regards,
Yavor Ivanov
the Telerik team
