How to add title to x-axis and y-axis?

3 posts, 1 answers
  1. Paul
    Paul avatar
    34 posts
    Member since:
    Apr 2017

    Posted 08 May 2017 Link to this post

    Hello,

    I tried to bring our scatter plot chart feature from our website to our winform application.

    I tried to use chartview to implement this feature, then I cannot find an option to add title into x-axis and y-axis.

    So what should I do to add title into x-axis and y-axis?

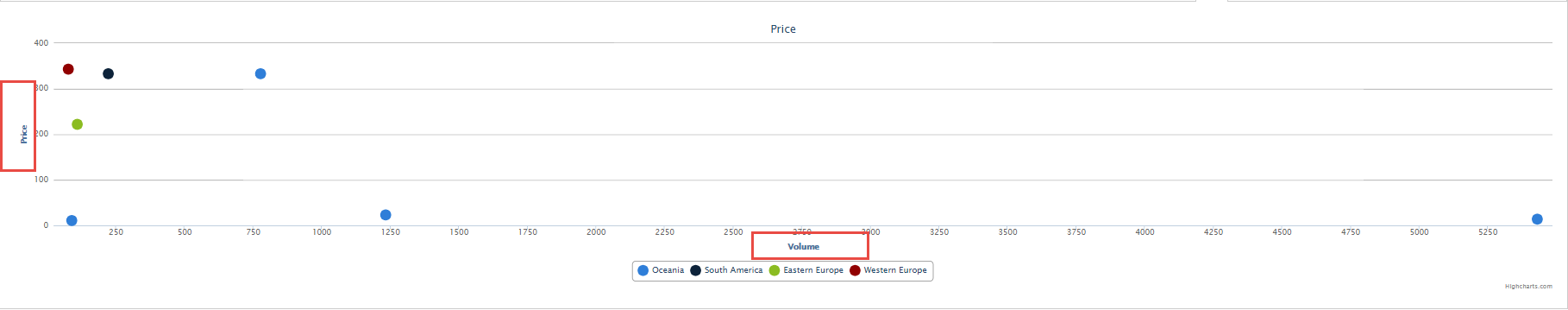

    Attachment #1 is in website version

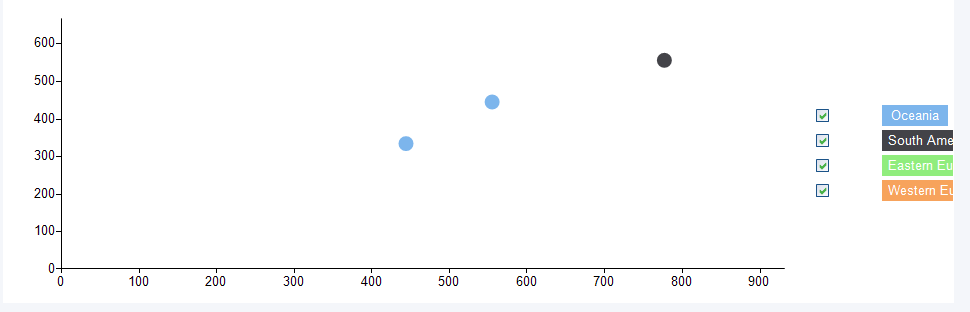

    Attachment #2 is in winform version

    Regard,

    Paul



  2. Answer
    Dimitar
    Admin
    Dimitar avatar
    2907 posts

    Posted 10 May 2017 Link to this post

    Hello Paul,

    You can use the Title property. Here is an example:
    LinearAxis horizontalAxis = radChartView1.Axes.Get<LinearAxis>(0);

    horizontalAxis.Title = "My Title";

    Please let me know if there is something else I can help you with.

    Regards,
    Dimitar
    Telerik by Progress
    Try our brand new, jQuery-free Angular 2 components built from ground-up which deliver the business app essential building blocks - a grid component, data visualization (charts) and form elements.
  3. Paul
    Paul avatar
    34 posts
    Member since:
    Apr 2017

    Posted 10 May 2017 in reply to Dimitar Link to this post

    Hello Dimitar,

    Thanks you for your help, it working well for me

    Regard,

    Paul
