[Solved] How do I Change Forecolor on Selection of Row in GridView

[Debasis]

Hi,

How do I change the Forecolor on Selection of Row in RAD Grid View. i.e. When I select a row then the row color should change from "Black" to "Blue". How Do I Change?

<telerik:RadGridView Grid.Row="0" MaxHeight="300"
                                 Name="MessageGridView"
                                 BorderBrush="Transparent"
                                 ItemsSource="{Binding AllEmp}"
                                 SelectedItem="{Binding SelectedHeader, Mode=TwoWay}"
                                 IsBusy="{Binding IsLoading}"
                                 SelectionMode="Extended"
                                 IsReadOnly="True"
                                 AutoGenerateColumns="False"
                                 ShowGroupPanel="False"
                                 GridLinesVisibility="Horizontal"
                                 RowIndicatorVisibility="Collapsed"
                                 IsFilteringAllowed="False"
                                 telerik:StyleManager.Theme="Office_Silver"
                                 RowStyle="{StaticResource GridViewRowStyle1}" DataLoaded="MessageGridView_DataLoaded">

                <telerik:RadGridView.Columns>
                    <telerik:GridViewSelectColumn HeaderCellStyle="{StaticResource GridViewHCellStyle}"></telerik:GridViewSelectColumn>
                    <telerik:GridViewColumn HeaderCellStyle="{StaticResource GridViewHCellStyle}">
                        <telerik:GridViewColumn.CellTemplate>
                            <DataTemplate>
                                <StackPanel Orientation="Vertical">
                                    <Image Visibility="{Binding EmpHG,Converter={StaticResource EmpHGImageConvertor}}"
         Source="../Assets/Images/GridResources/EmpHG.png"></Image>
                                </StackPanel>
                            </DataTemplate>
                        </telerik:GridViewColumn.CellTemplate>
                    </telerik:GridViewColumn>
                    <telerik:GridViewDataColumn Header="{Binding TLK_EmpFrom, Source={StaticResource LangResource}}"
                        HeaderCellStyle="{StaticResource GridViewHCellStyle}"
                        Width="200" IsReadOnly="True"
                        DataMemberBinding="{Binding EmpFrom}"
                        TextAlignment="Right">
                        <telerik:GridViewDataColumn.CellTemplate>
                            <DataTemplate>
                                <TextBlock Foreground="{Binding EmpStatus,Converter={StaticResource GridFontValueConvertor}}"
        FontWeight="{Binding EmpStatus,Converter={StaticResource GridFontValueConvertorWght}}"
        Text="{Binding EMPEDUSTATUS}" />
                            </DataTemplate>
                        </telerik:GridViewDataColumn.CellTemplate>
                    </telerik:GridViewDataColumn>
                    <telerik:GridViewColumn HeaderCellStyle="{StaticResource GridViewHCellStyle}">
                        <telerik:GridViewColumn.CellTemplate>
                            <DataTemplate>
                                <StackPanel Orientation="Vertical">
                                    <Image Visibility="{Binding HasElig,Converter={StaticResource HasEligImageConvertor}}"
         Source="../Images/GridResources/HasElig.png"></Image>
                                </StackPanel>
                            </DataTemplate>
                        </telerik:GridViewColumn.CellTemplate>
                    </telerik:GridViewColumn>
                    <telerik:GridViewDataColumn Header="{Binding TLK_EMPAdd, Source={StaticResource LangResource}}"
                        Width="355"  TextAlignment="Left"
                        HeaderCellStyle="{StaticResource GridViewHCellStyle}"
                        DataMemberBinding="{Binding EMPAdd,Mode=TwoWay}">
                        <telerik:GridViewDataColumn.CellTemplate>
                            <DataTemplate>
                                <StackPanel Orientation="Horizontal" HorizontalAlignment="Left">
                                    <TextBlock Foreground="{Binding EMPAddStatus,Converter={StaticResource GridFontValueConvertor}}"
                                                FontWeight="{Binding EMPAddStatus,Converter={StaticResource GridFontValueConvertorWght}}"
                                                Text="{Binding EMPAdd}"
                                                TextTrimming="WordEllipsis"
                                                MaxWidth="300"
                                                />
                                    <TextBlock Text=" "></TextBlock>
                                </StackPanel>
                            </DataTemplate>
                        </telerik:GridViewDataColumn.CellTemplate>
                        <telerik:GridViewDataColumn.CellEditTemplate>
                            <DataTemplate >
                                <StackPanel>
                                    <interactivity:Interaction.Triggers>
                                        <interactivity:EventTrigger EventName="Loaded">
                                            <interactivity:InvokeCommandAction Command="{Binding LoadEditTextboxCommand, Source={StaticResource ViewMdel}}"
                                                                           CommandParameter="{Binding ElementName=txtEditSubject, Mode=OneWay}"/>
                                        </interactivity:EventTrigger>
                                    </interactivity:Interaction.Triggers>
                                    <TextBox x:Name="txtEditSubject"
                                         IsEnabled="{Binding EMPEmail,Converter={StaticResource EMPEmailEditConvertor}}"
                                         Text="{Binding EMPEmailAdd}"
                                         Foreground="{Binding EMPEmailStatus,Converter={StaticResource GridFontValueConvertor}}"
                                         MaxLength="256">
                                    </TextBox>
                                </StackPanel>
                            </DataTemplate>
                        </telerik:GridViewDataColumn.CellEditTemplate>
                    </telerik:GridViewDataColumn>
                </telerik:RadGridView.Columns>
                <interactivity:Interaction.Triggers>
                    <interactivity:EventTrigger EventName="SelectionChanged">
                        <interactivity:InvokeCommandAction Command="{Binding GetEMPDetailsCommand}"/>
                    </interactivity:EventTrigger>
                </interactivity:Interaction.Triggers>
                <interactivity:Interaction.Behaviors>
                    <RadMultiSelection:RadGridViewMultiRowSelectBehavior SelectedItems="{Binding SelectedHeaders, Source={StaticResource ViewMdel}}" />
                </interactivity:Interaction.Behaviors>
            </telerik:RadGridView>

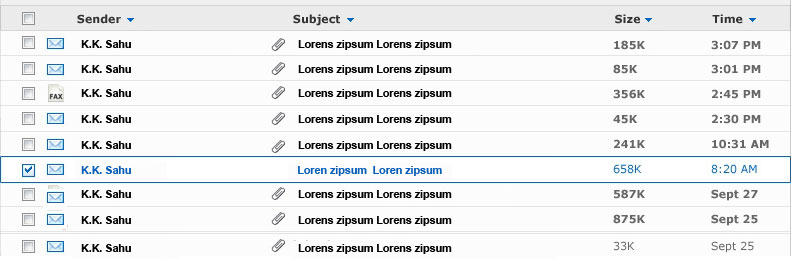

Please see the attached image for more information.

Best Regards,
DG

[Vanya Pavlova]

Hi Debasis,



You may achieve the desired result by editing the template of GridViewRow and predefining its Selected State, please refer to the following xaml-markup:

<VisualState x:Name="Selected">
                            <Storyboard>
                                <ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="Background_Selected">
                                    <DiscreteObjectKeyFrame KeyTime="0" Value="Visible"/>
                                </ObjectAnimationUsingKeyFrames>
                                <ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="NavigatorIndicatorBackground">
                                    <DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_RowIndicatorCellBackground_Selected}"/>
                                </ObjectAnimationUsingKeyFrames>
                                 <ObjectAnimationUsingKeyFrames Storyboard.TargetName="PART_DataCellsPresenter" Storyboard.TargetProperty="Foreground">
                                        <DiscreteObjectKeyFrame KeyTime="0:0:0" Value="Blue" />
                                </ObjectAnimationUsingKeyFrames>
</Storyboard>

All the best,
Vanya Pavlova
the Telerik team

[Debasis]

Hi Vanya Pavlova ,
Thank you for your quick response.
Let me try

Best Regards,
Debasis

[Debasis]

Hi Vanya Pavlova ,

I've integrated your given style; somehow it's not working when I select a Row; Rows color will not change to "Blue". Here is my code

<SolidColorBrush x:Key="ItemOuterBorder_Over" Color="#FF0066CC"/>

<SolidColorBrush x:Key="ItemInnerBorder_Over" Color="White"/>

<SolidColorBrush x:Key="ItemBackground_Over" Color="White"/>

<SolidColorBrush x:Key="ItemOuterBorder_Selected" Color="#FF0066CC"/>

<SolidColorBrush x:Key="ItemInnerBorder_Selected" Color="White"/>

<SolidColorBrush x:Key="ItemBackground_Selected" Color="White"/>

<SolidColorBrush x:Key="ItemOuterBorder_Invalid" Color="#FFCE7D7D"/>

<LinearGradientBrush x:Key="ItemInnerBorder_Invalid" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFEBF4FD"/>

<GradientStop Color="#FFDBEAFD" Offset="1"/>

</LinearGradientBrush>

<LinearGradientBrush x:Key="ItemBackground_Invalid" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFFCDCDC"/>

<GradientStop Color="#FFFCC1C1" Offset="1"/>

</LinearGradientBrush>

<telerik:BooleanToOpacityConverter x:Key="BooleanToOpacityConverter"/>

<telerik:BooleanToVisibilityConverter x:Key="BooleanToVisibilityConverter"/>

<telerik:GridLineWidthToThicknessConverter x:Key="GridLineWidthToThicknessConverter"/>

<SolidColorBrush x:Key="ControlOuterBorder" Color="#FF848484"/>

<SolidColorBrush x:Key="GridView_HierarchyBackground" Color="#FFBBBBBB"/>

<SolidColorBrush x:Key="ControlInnerBorder" Color="White"/>

<SolidColorBrush x:Key="GridView_RowIndicatorCellBackground" Color="#FFE4E4E4"/>

<SolidColorBrush x:Key="GridView_NavigatorIndicatorBackground" Color="#FF848484"/>

<SolidColorBrush x:Key="GridView_EditIndicatorBackground1" Color="#7F848484"/>

<SolidColorBrush x:Key="GridView_EditIndicatorBackground2" Color="#FFCBCBCB"/>

<SolidColorBrush x:Key="GridView_EditIndicatorBackground3" Color="#FF848484"/>

<SolidColorBrush x:Key="GridView_EditIndicatorBackground4" Color="White"/>

<LinearGradientBrush x:Key="GridView_ErrorIndicatorBackground1" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="#FFFC9999" Offset="0"/>

<GradientStop Color="#FFC26666" Offset="1"/>

</LinearGradientBrush>

<SolidColorBrush x:Key="GridView_ErrorIndicatorBackground2" Color="White"/>

<LinearGradientBrush x:Key="GridView_ErrorIndicatorBackground3" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="Red" Offset="0"/>

<GradientStop Color="#FF990000" Offset="1"/>

</LinearGradientBrush>

<LinearGradientBrush x:Key="GridView_RowIndicatorCellBackground_Selected" EndPoint="0.5,1" StartPoint="0.5,0">

<GradientStop Color="White" Offset="0"/>

<GradientStop Color="#FFE4E4E4" Offset="1"/>

</LinearGradientBrush>

<ControlTemplate x:Key="GridViewRowTemplate" TargetType="telerik:GridViewRow">

<Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}">

<VisualStateManager.VisualStateGroups>

<VisualStateGroup x:Name="FocusStates">

<VisualState x:Name="Unfocused"/>

<VisualState x:Name="Focused">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="NavigatorIndicator">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="Visible"/>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="SelectionStates">

<VisualState x:Name="Unselected"/>

</VisualStateGroup>

<VisualStateGroup x:Name="CommonStates">

<VisualState x:Name="Normal"/>

<VisualState x:Name="MouseOver">

<Storyboard>

<ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="Background_Over">

<DiscreteObjectKeyFrame KeyTime="0" Value="Visible"/>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

<VisualState x:Name="Selected">

<Storyboard>

<ObjectAnimationUsingKeyFrames Duration="0" Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="Background_Selected">

<DiscreteObjectKeyFrame KeyTime="0" Value="Visible"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Background" Storyboard.TargetName="NavigatorIndicatorBackground">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="{StaticResource GridView_RowIndicatorCellBackground_Selected}"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetName="PART_DataCellsPresenter" Storyboard.TargetProperty="Foreground">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="#0066cc" />

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="ValueStates">

<VisualState x:Name="Valid"/>

<VisualState x:Name="Invalid">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.Visibility)" Storyboard.TargetName="Background_Invalid">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="Visible"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="ErrorIndicator">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="Visible"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="EditIndicator">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="Collapsed"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="NavigatorIndicator">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="Collapsed"/>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

<VisualStateGroup x:Name="EditStates">

<VisualState x:Name="ReadOnlyMode"/>

<VisualState x:Name="EditMode">

<Storyboard>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="EditIndicator">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="Visible"/>

</ObjectAnimationUsingKeyFrames>

<ObjectAnimationUsingKeyFrames Storyboard.TargetProperty="Visibility" Storyboard.TargetName="NavigatorIndicator">

<DiscreteObjectKeyFrame KeyTime="0:0:0" Value="Visible"/>

</ObjectAnimationUsingKeyFrames>

</Storyboard>

</VisualState>

</VisualStateGroup>

</VisualStateManager.VisualStateGroups>

<telerik:SelectiveScrollingGrid x:Name="grid">

<telerik:SelectiveScrollingGrid.ColumnDefinitions>

<ColumnDefinition Width="Auto"/>

<ColumnDefinition Width="Auto"/>

<ColumnDefinition Width="Auto"/>

<ColumnDefinition Width="*"/>

</telerik:SelectiveScrollingGrid.ColumnDefinitions>

<telerik:SelectiveScrollingGrid.RowDefinitions>

<RowDefinition Height="*"/>

<RowDefinition Height="Auto"/>

<RowDefinition Height="Auto"/>

<RowDefinition Height="Auto"/>

</telerik:SelectiveScrollingGrid.RowDefinitions>

<Border x:Name="SelectionBackground" Background="{TemplateBinding Background}" Grid.ColumnSpan="2" Grid.Column="2" HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" Margin="{TemplateBinding Margin}" Padding="{TemplateBinding Padding}" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>

<Border x:Name="Background_Over" BorderBrush="{StaticResource ItemOuterBorder_Over}" BorderThickness="1" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="0" Margin="1,0,0,1" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True" Visibility="Collapsed">

<Border BorderBrush="{StaticResource ItemInnerBorder_Over}" BorderThickness="1" Background="{StaticResource ItemBackground_Over}"/>

</Border>

<Border x:Name="Background_Selected" BorderBrush="{StaticResource ItemOuterBorder_Selected}" BorderThickness="1" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="0" Margin="1,0,0,1" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True" Visibility="Collapsed">

<Border BorderBrush="{StaticResource ItemInnerBorder_Selected}" BorderThickness="1" Background="{StaticResource ItemBackground_Selected}"/>

</Border>

<Border x:Name="Background_Invalid" BorderBrush="{StaticResource ItemOuterBorder_Invalid}" BorderThickness="1" Grid.ColumnSpan="2" Grid.Column="2" CornerRadius="1" Margin="1,1,1,2" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True" Visibility="Collapsed">

<Border BorderBrush="{StaticResource ItemInnerBorder_Invalid}" BorderThickness="1" Background="{StaticResource ItemBackground_Invalid}"/>

</Border>

<telerik:GridViewToggleButton x:Name="PART_HierarchyExpandButton" Grid.Column="2" IsHitTestVisible="{Binding IsExpandable, RelativeSource={RelativeSource TemplatedParent}}" IsTabStop="{TemplateBinding IsTabStop}" IsChecked="{Binding IsExpanded, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}" Opacity="{Binding IsExpandable, Converter={StaticResource BooleanToOpacityConverter}, RelativeSource={RelativeSource TemplatedParent}}" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}" Width="25"/>

<Border Grid.Column="2" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{Binding HasHierarchy, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}"/>

<telerik:DataCellsPresenter x:Name="PART_DataCellsPresenter" Grid.Column="3" Foreground="Blue"/>

<Border x:Name="PART_RowBorder" BorderBrush="{TemplateBinding HorizontalGridLinesBrush}" BorderThickness="{Binding HorizontalGridLinesWidth, ConverterParameter=Bottom, Converter={StaticResource GridLineWidthToThicknessConverter}, RelativeSource={RelativeSource TemplatedParent}}" Grid.ColumnSpan="4" Grid.Column="1" Grid.RowSpan="4" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True" VerticalAlignment="Bottom"/>

<Border BorderBrush="{StaticResource ControlOuterBorder}" BorderThickness="0,1" Background="{StaticResource GridView_HierarchyBackground}" Grid.ColumnSpan="2" Grid.Column="2" Padding="6" Grid.Row="2" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True" Visibility="{Binding IsExpanded, Converter={StaticResource BooleanToVisibilityConverter}, RelativeSource={RelativeSource TemplatedParent}}">

<ContentPresenter x:Name="PART_HierarchyChildPresenter" telerik:SelectiveScrollingGrid.SelectiveScrollingClip="True"/>

</Border>

<telerik:DetailsPresenter x:Name="PART_DetailsPresenter" Grid.ColumnSpan="2" Grid.Column="2" DetailsProvider="{TemplateBinding DetailsProvider}" Grid.Row="1"/>

<telerik:IndentPresenter x:Name="PART_IndentPresenter" Grid.Column="1" IndentLevel="{TemplateBinding IndentLevel}" Grid.RowSpan="4" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical"/>

<Border x:Name="PART_IndicatorPresenter" BorderBrush="{StaticResource ControlOuterBorder}" BorderThickness="0,0,1,1" Grid.Column="0" Grid.RowSpan="3" telerik:SelectiveScrollingGrid.SelectiveScrollingOrientation="Vertical" Visibility="{TemplateBinding RowIndicatorVisibility}" VerticalAlignment="Stretch" Width="25">

<Border x:Name="NavigatorIndicatorBackground" BorderBrush="{StaticResource ControlInnerBorder}" BorderThickness="1" Background="{StaticResource GridView_RowIndicatorCellBackground}">

<Grid>

<Grid x:Name="NavigatorIndicator" HorizontalAlignment="Center" Height="11" Visibility="Collapsed" VerticalAlignment="Center" Width="11">

<Path Data="F1 M 32.0234,6.66669L 24.2923,0.0248413L 28.3697,0.0248413L 32,3.14362L 36.1492,6.70819L 32,10.2728L 28.4664,13.3085L 24.2923,13.3085L 32.0234,6.66669 Z " Fill="{StaticResource GridView_NavigatorIndicatorBackground}" HorizontalAlignment="Center" Height="8" Margin="0" Stretch="Fill" VerticalAlignment="Center" Width="8"/>

</Grid>

<Grid x:Name="EditIndicator" HorizontalAlignment="Center" Height="10" Visibility="Collapsed" VerticalAlignment="Center" Width="16">

<Path Data="M14,9 L15,9 15,10 14,10 z M1,9 L2,9 2,10 1,10 z M15,8 L16,8 16,9 15,9 z M0,8 L1,8 1,9 0,9 z M15,1 L16,1 16,2 15,2 z M0,1 L1,1 1,2 0,2 z M14,0 L15,0 15,1 14,1 z M1,0 L2,0 2,1 1,1 z" Fill="{StaticResource GridView_EditIndicatorBackground1}" Stretch="Fill"/>

<Path Data="M0.99999994,6.9999995 L2,6.9999995 3,6.9999995 4,6.9999995 5,6.9999995 6,6.9999995 7,6.9999995 8,6.9999995 9,6.9999995 10,6.9999995 11,6.9999995 12,6.9999995 13,6.9999995 13,7.9999995 12,7.9999995 11,7.9999995 10,7.9999995 9,7.9999995 8,7.9999995 7,7.9999995 6,7.9999995 5,7.9999995 4,7.9999995 3,7.9999995 2,7.9999995 0.99999994,7.9999995 z M13,0.99999994 L14,0.99999994 14,1.9999999 14,2.9999995 14,3.9999995 14,4.9999995 14,5.9999995 14,6.9999995 13,6.9999995 13,5.9999995 13,4.9999995 13,3.9999995 13,2.9999995 13,1.9999999 z M0,0.99999994 L0.99999994,0.99999994 0.99999994,1.9999999 0.99999994,2.9999995 0.99999994,3.9999995 0.99999994,4.9999995 0.99999994,5.9999995 0.99999994,6.9999995 0,6.9999995 0,5.9999995 0,4.9999995 0,3.9999995 0,2.9999995 0,1.9999999 z M11,0 L12,0 13,0 13,0.99999994 12,0.99999994 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 4,0.99999994 3,0.99999994 2,0.99999994 0.99999994,0.99999994 0.99999994,2.3841858E-07 2,2.3841858E-07 3,2.3841858E-07 4,2.3841858E-07 5,2.3841858E-07 6,2.3841858E-07 7,2.3841858E-07 8,2.3841858E-07 9,2.3841858E-07 10,2.3841858E-07 z" Fill="{StaticResource GridView_EditIndicatorBackground2}" Margin="1" Stretch="Fill"/>

<Path Data="M2,9 L3,9 4,9 5,9 6,9 7,9 8,9 9,9 10,9 11,9 12,9 13,9 14,9 14,10 13,10 12,10 11,10 10,10 9,10 8,10 7,10 6,10 5,10 4,10 3,10 2,10 z M14,8 L15,8 15,9 14,9 z M1,8 L2,8 2,9 1,9 z M15,2 L16,2 16,3 16,4 16,5 16,6 16,7 16,8 15,8 15,7 15,6 15,5 15,4 15,3 z M3,2 L4,2 5,2 6,2 6,3 5,3 5,4 5,5 5,6 5,7 6,7 6,8 5,8 4,8 3,8 3,7 4,7 4,6 4,5 4,4 4,3 3,3 z M0,2 L1,2 1,3 1,4 1,5 1,6 1,7 1,8 0,8 0,7 0,6 0,5 0,4 0,3 z M14,1 L15,1 15,2 14,2 z M1,1 L2,1 2,2 1,2 z M2,0 L3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0 14,1 13,1 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1 3,1 2,1 z" Fill="{StaticResource GridView_EditIndicatorBackground3}" Stretch="Fill"/>

<Path Data="M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 12,2 12,3 12,4 12,5.0000001 12,6 11,6 10,6 9,6 8,6 7,6 6,6 5,6 4,6 4,5.0000001 3,5.0000001 3,4 3,3 3,2 3,1 4,1 z M0,0 L1,0 1,1 2,1 2,2 2,3 2,4 2,5.0000001 1,5.0000001 1,6 0,6 0,5.0000001 0,4 0,3 0,2 0,1 z" Fill="{StaticResource GridView_EditIndicatorBackground4}" Margin="2" Stretch="Fill"/>

</Grid>

<Grid x:Name="ErrorIndicator" HorizontalAlignment="Center" Height="16" Visibility="Collapsed" VerticalAlignment="Center" Width="16">

<Path Data="M3,12.999999 L4,12.999999 5,12.999999 6,12.999999 7,12.999999 8,12.999999 9,12.999999 10,12.999999 11,12.999999 11,13.999999 10,13.999999 9,13.999999 8,13.999999 7,13.999999 6,13.999999 5,13.999999 4,13.999999 3,13.999999 z M11,11.999999 L12,11.999999 12,12.999999 11,12.999999 z M2.0000001,11.999999 L3,11.999999 3,12.999999 2.0000001,12.999999 z M12,10.999999 L13,10.999999 13,11.999999 12,11.999999 z M1,10.999999 L2.0000001,10.999999 2.0000001,11.999999 1,11.999999 z M13,2.9999992 L14,2.9999992 14,3.9999992 14,4.9999992 14,5.9999992 14,6.9999992 14,7.9999992 14,8.9999992 14,9.9999992 14,10.999999 13,10.999999 13,9.9999992 13,8.9999992 13,7.9999992 13,6.9999992 13,5.9999992 13,4.9999992 13,3.9999992 z M0,2.9999992 L1,2.9999992 1,3.9999992 1,4.9999992 1,5.9999992 1,6.9999992 1,7.9999992 1,8.9999992 1,9.9999992 1,10.999999 0,10.999999 0,9.9999992 0,8.9999992 0,7.9999992 0,6.9999992 0,5.9999992 0,4.9999992 0,3.9999992 z M12,1.9999999 L13,1.9999999 13,2.9999992 12,2.9999992 z M1,1.9999999 L2.0000001,1.9999999 2.0000001,2.9999992 1,2.9999992 z M11,0.99999994 L12,0.99999994 12,1.9999999 11,1.9999999 z M2.0000001,0.99999994 L2.9999998,0.99999994 2.9999998,1.9999999 2.0000001,1.9999999 z M2.9999998,0 L3.9999998,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 11,0.99999994 10,0.99999994 9,0.99999994 8,0.99999994 7,0.99999994 6,0.99999994 5,0.99999994 3.9999998,0.99999994 2.9999998,0.99999994 z" Fill="{StaticResource GridView_ErrorIndicatorBackground1}" Margin="1" Stretch="Fill"/>

<Path Data="M1.4901161E-07,8 L1.0000001,8 2.0000002,8 2.0000002,9 2.0000002,10 1.0000003,10 1.0000003,9 1.0000001,10 1.4901161E-07,10 1.4901161E-07,9 z M1.4901161E-07,0 L1.0000001,0 2.0000002,0 2.0000002,1 2.0000002,2 2.0000002,3 2.0000002,4.0000001 2.0000002,5 2.0000002,5.9999999 2.0000002,7 1.0000001,7 1.4901161E-07,7 1.4901161E-07,5.9999999 1.4901161E-07,5 1.4901161E-07,4.0000001 1.4901161E-07,3 1.4901161E-07,2 0,1 z" Fill="{StaticResource GridView_ErrorIndicatorBackground2}" Margin="7,3" Stretch="Fill"/>

<Path Data="M4,15 L5,15 6,15 7,15 8,15 9,15 10,15 11,15 12,15 12,16 11,16 10,16 9,16 8,16 7,16 6,16 5,16 4,16 z M12,14 L13,14 13,15 12,15 z M3,14 L4,14 4,15 3,15 z M13,13 L14,13 14,14 13,14 z M2,13 L3,13 3,14 2,14 z M14,12 L15,12 15,13 14,13 z M1,12 L2,12 2,13 1,13 z M7,11 L7,12 7,13 8,13 9,13 9,12 9,11 8,11 z M15,4 L16,4 16,5 16,6 16,7 16,8 16,9 16,10 16,11 16,12 15,12 15,11 15,10 15,9 15,8 15,7 15,6 15,5 z M0,4 L1,4 1,5 1,6 1,7 1,8 1,9 1,10 1,11 1,12 0,12 0,11 0,10 0,9 0,8 0,7 0,6 0,5 z M14,3 L15,3 15,4 14,4 z M7,3 L7,4 7,5 7,6 7,7 7,8 7,9 7,10 8,10 9,10 9,9 9,8 9,7 9,6 9,5 9,4 9,3 8,3 z M1,3 L2,3 2,4 1,4 z M13,2 L14,2 14,3 13,3 z M4,2 L5,2 6,2 7,2 8,2 9,2 10,2 11,2 12,2 12,3 13,3 13,4 14,4 14,5 14,6 14,7 14,8 14,9 14,10 14,11 14,12 13,12 13,13 12,13 12,14 11,14 10,14 9,14 8,14 7,14 6,14 5,14 4,14 4,13 3,13 3,12 2,12 2,11 2,10 2,9 2,8 2,7 2,6 2,5 2,4 3,4 3,3 4,3 z M2,2 L3,2 3,3 2,3 z M12,1 L13,1 13,2 12,2 z M3,1 L4,1 4,2 3,2 z M4,0 L5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 12,1 11,1 10,1 9,1 8,1 7,1 6,1 5,1 4,1 z" Fill="{StaticResource GridView_ErrorIndicatorBackground3}" Stretch="Fill"/>

</Grid>

</Grid>

</Border>

</Border>

</telerik:SelectiveScrollingGrid>

</Border>

</ControlTemplate>

<SolidColorBrush x:Key="ItemBackground" Color="#fcfcfc"/>

<SolidColorBrush x:Key="GridView_GridLinesItemBorder" Color="#e2e2e2" />

<SolidColorBrush x:Key="GridViewForeground" Color="#0066cc"/>

<Style x:Key="GridViewRowStyle1" TargetType="telerik:GridViewRow">

<Setter Property="IsTabStop" Value="False"/>

<Setter Property="Template" Value="{StaticResource GridViewRowTemplate}"/>

<Setter Property="Background" Value="{StaticResource ItemBackground}"/>

<Setter Property="BorderBrush" Value="{StaticResource GridView_GridLinesItemBorder}"/>

<Setter Property="BorderThickness" Value="0 0 0 .5"/>

<Setter Property="FontWeight" Value="Normal"/>

<Setter Property="VerticalContentAlignment" Value="Stretch"/>

<Setter Property="HorizontalContentAlignment" Value="Stretch"/>

<Setter Property="Padding" Value="0"/>

<Setter Property="telerik:RadDragAndDropManager.AllowDrag" Value="True" />

</Style>

[Vanya Pavlova]

Hello Debasis,



I have just tested your style and everything works fine by my side. Inside GridViewRow's Selected State you changed the Foreground of the DataCellsPresenter which is LightBlue:


<ObjectAnimationUsingKeyFrames Storyboard.TargetName="PART_DataCellsPresenter" Storyboard.TargetProperty="Foreground">
  <DiscreteObjectKeyFrame KeyTime="0:0:0" Value="#0066cc" />
</ObjectAnimationUsingKeyFrames>

I have changed this to Red color and everything works as expected.
Please check the attached project and let me know if you need any further assistance.


All the best,
Vanya Pavlova
the Telerik team

[stephen]

Hi,

I tried your suggestion of putting this inside the gridrowtemplate:

<ObjectAnimationUsingKeyFrames Storyboard.TargetName="PART_DataCellsPresenter" Storyboard.TargetProperty="Foreground">
                                        <DiscreteObjectKeyFrame KeyTime="0:0:0" Value="#FFFFFFFF"/>
                                </ObjectAnimationUsingKeyFrames>

and it worked for most of the columns of my grid, except one which uses a DataTemplateSelector. Could you please let me know what we should use instead of PART_DataCellsPresenter if my code looks like this:

<telerikG:GridViewDataColumn  CellStyle="{StaticResource GridViewCellStyleNoSel}" HeaderCellStyle="{StaticResource GridViewHeaderCellStyle_cust}" Header="{Binding StringLibrary.ControlRecipeValue, Source={StaticResource LocalizedStrings}}" Width="Auto" MinWidth="110">
                                                <telerikG:GridViewDataColumn.CellTemplate>
                                                    <DataTemplate>
                                                        <DataUI:QualityTemplateSelector Content="{Binding}" Quality="{Binding Quality}">
                                                            <DataUI:QualityTemplateSelector.OPCGoodTemplate>
                                                                <DataTemplate>
                                                                    <TextBlock Margin="2,0,0,0" Text="{Binding LastKnown}" FontWeight="{Binding IsPrimary, Converter={StaticResource PrimaryToFontWeightConverter}}" ToolTipService.ToolTip="{Binding LastKnown}"/>
                                                                </DataTemplate>
                                                            </DataUI:QualityTemplateSelector.OPCGoodTemplate>

                                                            <DataUI:QualityTemplateSelector.OPCDeviceFailureOrLastKnownTemplate>
                                                                <DataTemplate>
                                                                    <TextBlock Margin="2,0,0,0" Text="????????" FontWeight="{Binding IsPrimary, Converter={StaticResource PrimaryToFontWeightConverter}}" ToolTipService.ToolTip="????????"/>
                                                                </DataTemplate>
                                                            </DataUI:QualityTemplateSelector.OPCDeviceFailureOrLastKnownTemplate>
                                                        </DataUI:QualityTemplateSelector>
                                                    </DataTemplate>
                                                </telerikG:GridViewDataColumn.CellTemplate>
                                            </telerikG:GridViewDataColumn>

Thanks,
Stephen
