[Solved] Hierarchical Support within ASP.Net MVC Grid

[Michael Strasser]

Is there any support in the ASP.Net MVC Grid for Hierarchical data?
If so, can I get some examples?

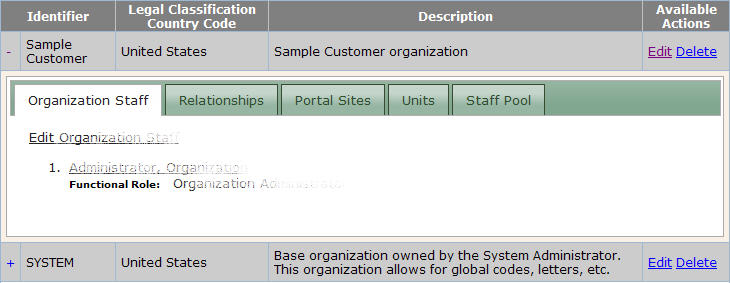

What I'm attempting to do is have a child area for each parent row.  The child area will contain tabs for child content.  Enclosed is a picture of a mock-up of what I'd like to accomplish.
Thanks!
M.A.Strasser

[Alex Gyoshev]

Hi Michael,

Currently, there is no support for hierarchical data. You could try to achieve the desired layout with templates, though - perhaps adding a templated column for the plus/minus sign and handling its click through javascript.

Best wishes,
Alex
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.

[Michael Strasser]

Any idea on how to accomplish that?
Thanks!
Mike Strasser

[Kazi Manzur Rashid]

Hello Michael Strasser,

I think we can provide more approprite answer when we are actually going to implmenet it ;-).

Kind regards,
Kazi Manzur Rashid
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.

[Michael Strasser]

Do you have any idea on when that would be?
Or, do you have any idea on how I can add the "child" row when the "+" is clicked, etc?

[Alex Gyoshev]

Hello Michael,

I prepared a sample project that demonstrates the concept that I was talking about. We are not sure when the hierarchical binding is going to be implemented, so I hope that this will be useful until then.

P.S. the plus/minus icons are taken from famfamfam, so please give him credit if you intend to use them publicly.

All the best,
Alexander Gyoshev
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.

[Michael Strasser]

Thanks Alexander, the sample you provided got me past the first hurdle.

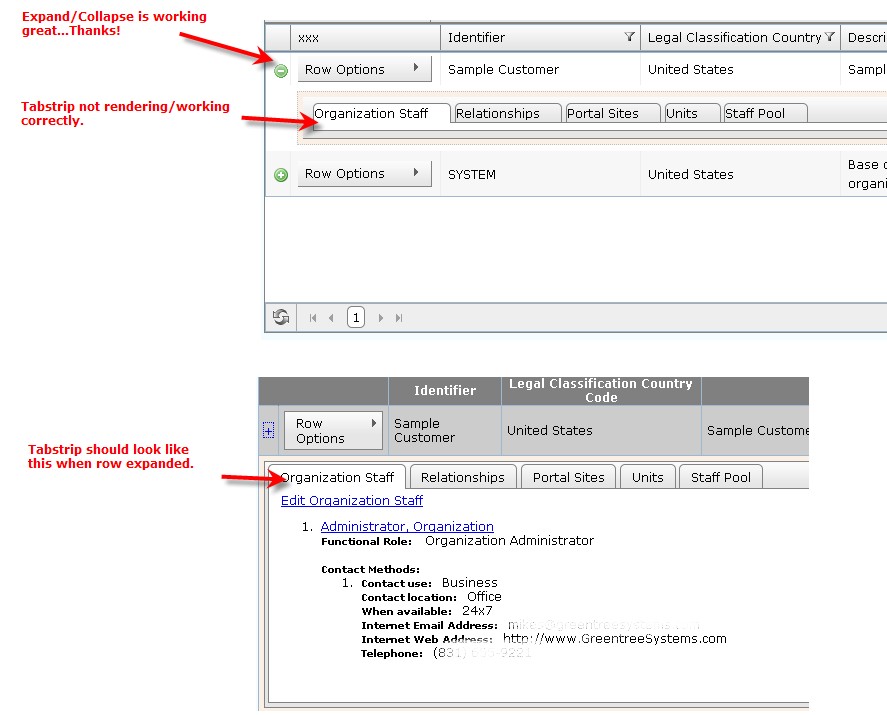

My next problem is that the "CustomerDetails" ViewUserControl (mine is named differently) I'm calling has a tab strip that is not rendering properly.  I'm supplying a picture of what it looks like within the MVC grid.  The pic also shows the tabstrip in a standard table.  The tab strip in the standard table looks and works correctly.

Here's the code for the ViewUserControl:

<%@ Control Language="C#" Inherits="System.Web.Mvc.ViewUserControl" %>
<%@ Import Namespace="System.Web.Routing" %>
<%
    Guid OrganizationId = (Guid)ViewData["OrganizationId"];

    Html.Telerik().TabStrip()
        .Name("Tab" + OrganizationId.ToString())
        .Items(parent =>
            {
                parent.Add()
                    .Text("Organization Staff")
                    .LoadContentFrom(Url.Action("SummaryUserOrganization", "Organization", new { organizationId = OrganizationId }));
                parent.Add()
                    .Text("Relationships")
                    .LoadContentFrom(Url.Action("SummaryOrganizationRelationships", "Organization", new { organizationId = OrganizationId }));
                parent.Add()
                    .Text("Portal Sites")
                    .LoadContentFrom(Url.Action("SummaryPortalSites", "Organization", new { organizationId = OrganizationId }));
                parent.Add()
                    .Text("Units")
                    .LoadContentFrom(Url.Action("SummaryOrganizationalUnits", "Organization", new { organizationId = OrganizationId }));
                parent.Add()
                    .Text("Staff Pool")
                    .LoadContentFrom(Url.Action("SummaryAllStaff", "Organization", new { organizationId = OrganizationId }));
            }
        )
        .SelectedIndex(0)
        .Render();

%>
Thanks!
Mike

[Atanas Korchev]

Hello Michael Strasser,

Did you register the JavaScript files of the tabstrip? This is mandatory if you load it on demand with Ajax. To do so use the following code:

<%= Html.Telerik().ScriptRegistrar().DefaultGroup(group => group
                               .Add("telerik.common.js").Add("telerik.tabstrip.js"));
%>

Regards,
Atanas Korchev
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.

[Michael Strasser]

Thanks, that was it!
