[Solved] Hide Expand / Collapse image in Master Detail Grid

[Ashok]

We are using Telerik Master Detail (Parent / Child) Grid. In this scenario, Telerik shows "+" / "-" to collapse / expand. Our requirements demands that if we have multiple Master Detail record, we keep "+" / "-" sign. However if we only have one Master record and corresponding details grid we always keep details grid expanded and we don't show "+" / "-" image.

How can we achieve this?

[Atanas Korchev]

Hi Tejas,

 This is not supported by Telerik Grid for ASP.NET MVC out of the box. The expand/collapse button is always shown when there is a detail row. Probably some jQuery workaround can be invented but it would be very specific to your scenario. If this is mandatory for you please provide more info about what you need. Ideally you can send us a sample running project which shows the current configuration and explain what the desired behavior should be. A screenshot would also be of help.

All the best,
Atanas Korchev
the Telerik team

[Ashok]

Hello Atanas,

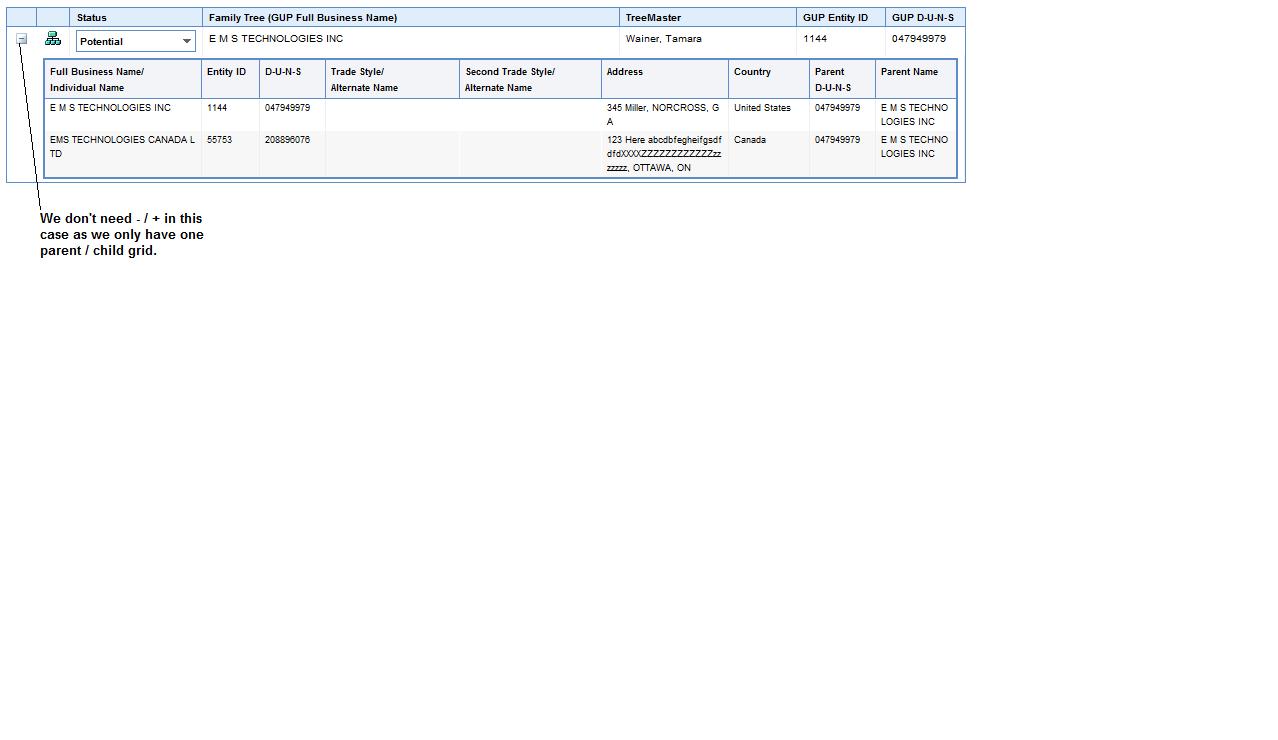

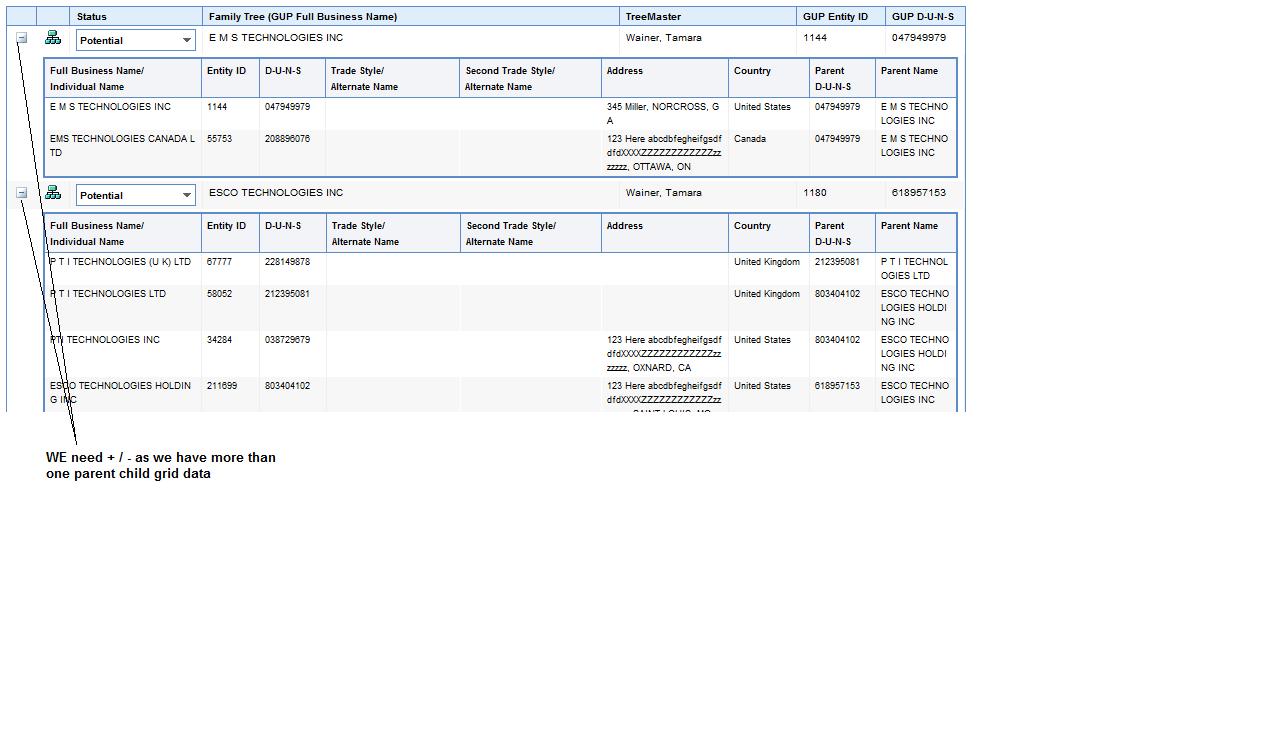

Look at the attached screens. Let is know if its possible to achieve this?

[Dimo]

Hi Tejas,

The requested behavior can be achieved with the following script:

function removeIcons(e) {
    if ($("> .t-grid-content > table > tbody > .t-master-row", this).length == 1) {
        window.setTimeout(function () { $(".t-hierarchy-cell .t-icon").css("visibility", "hidden"); }, 1);
    }
}

The above function checks how many expandable master rows you have. It should be executed as a Grid OnLoad handler if you are using server binding, and as an OnDataBound handler if you are using client binding.


Regards,
Dimo
the Telerik team

[Ashok]

Thank you. Script above worked perfect when we have scroll enabled. With no scrolls, this doesn't work.

Any tweaks? Also, why do we need window.setTimeout?

[Atanas Korchev]

Hi Tejas,

 You can try this which should work when the grid is not scrollable:

function removeIcons(e) {

    if ($(".t-master-row", this).length == 1) {

        $(".t-hierarchy-cell .t-icon").css("visibility", "hidden");

    }

}

The setTimeout is probably not needed.

Regards,
Atanas Korchev
the Telerik team
