[Solved] GridView Group by Column by hide Visibility

[Angie]

Hi

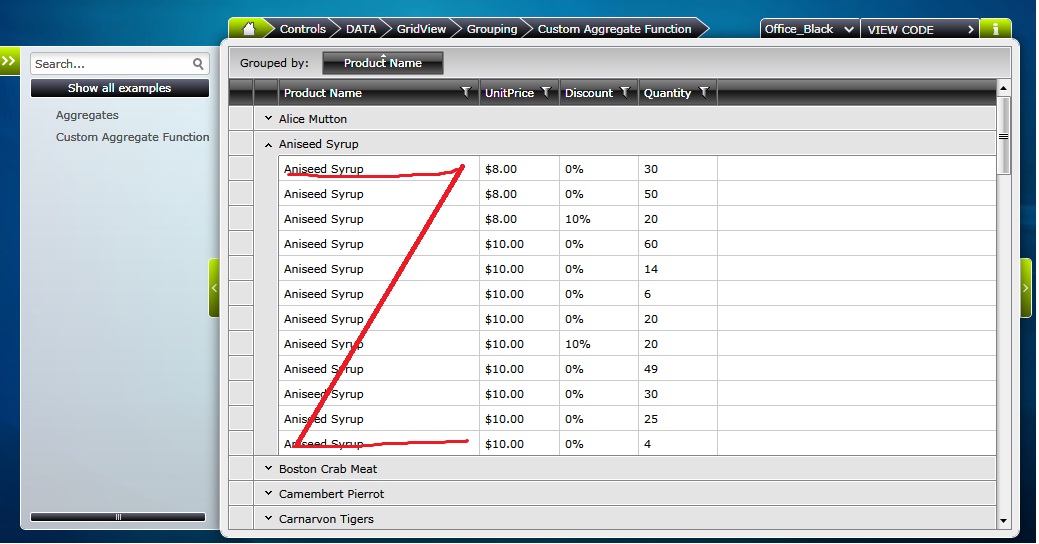

What i would like to do is Hide the visibility of data in a Column but keep the associated grouping in the gridview. I don't want to see repeated product name in the grid View. I have attached a jpg to explain more. What i don't want to see is the part which is crossed off by red. Would i be able to do this using Silverlight Grid View

[Maya]

Hello Ravindranath,

If you define the GroupDescriptor like:

<telerik:RadGridView.GroupDescriptors>
    <telerik:GroupDescriptor Member="Position" />
</telerik:RadGridView.GroupDescriptors>

Then you can just set the Property of the column - IsVisible to "False"

<telerik:GridViewDataColumn DataMemberBinding="{Binding Position}"                                             IsVisible="False"/>



All the best,
Maya
the Telerik team

[Angie]

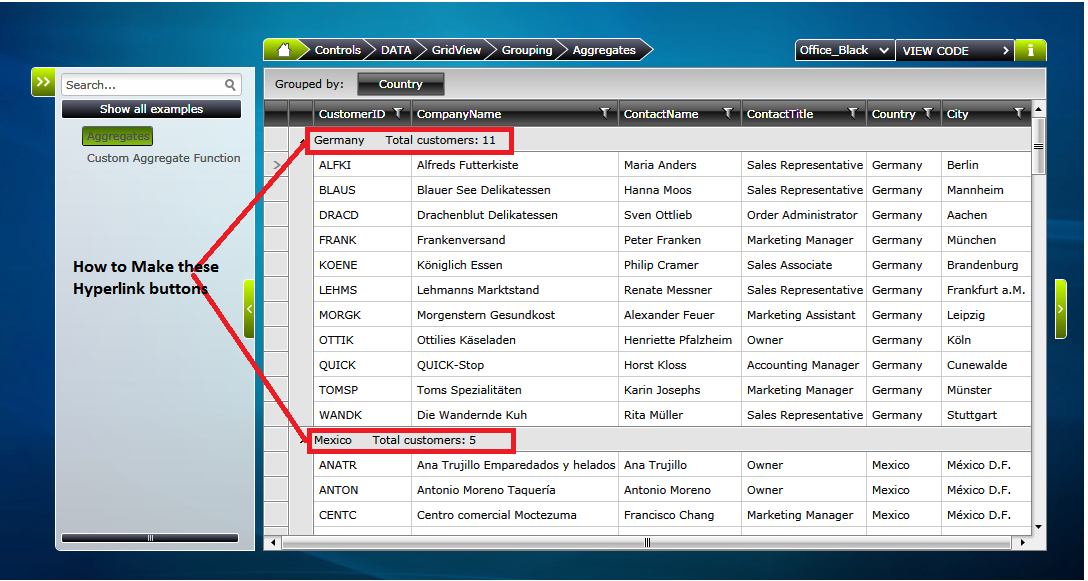

is there a way to make group descriptors click able hyperlink buttons. Something like in the picture i attached

[Maya]

Hi Ravindranath,

You can define the GroupHeaderTemplate and set its DataTemplate as follows:

<telerik:RadGridView.GroupHeaderTemplate>
     <DataTemplate>
        <HyperlinkButton Content="{Binding Header}" Click="HyperlinkButton_Click"/>
     </DataTemplate>
</telerik:RadGridView.GroupHeaderTemplate>

Afterwards, in case you require this button to open the group for example, you may handle its Click event like:

private void HyperlinkButton_Click(object sender, RoutedEventArgs e)
{
    HyperlinkButton hyperlinkButton = e.OriginalSource as HyperlinkButton;
    GridViewGroupRow groupRow = hyperlinkButton.ParentOfType<GridViewGroupRow>();
    if(groupRow != null)
    {
        this.clubsGrid.ExpandGroup(groupRow.Group);
    }
}



Kind regards,
Maya
the Telerik team

[Angie]

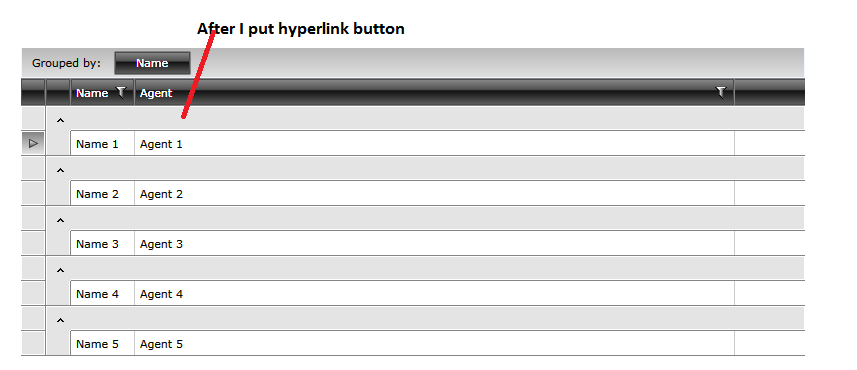

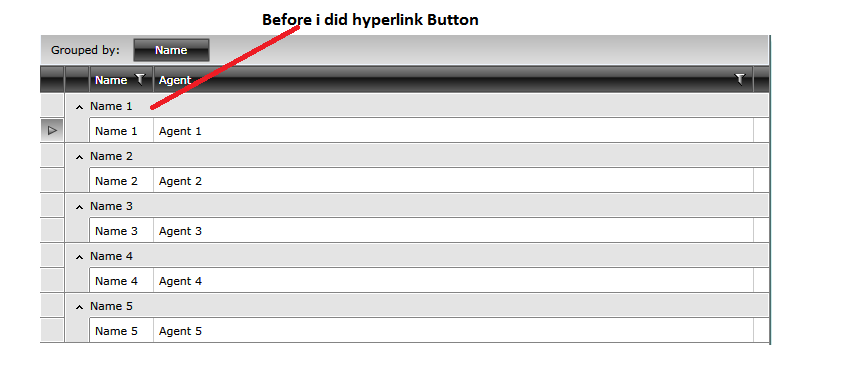

I already did that but that didn't work i couldn't get the hyperlink buttons to be visible. For some reason its not binding to the button. Here is the code i used. I also have attached two images of before adding GroupHeader Template and after adding HeaderTemplate. I could also send the whole project if you want. Let me know

<UserControl
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation" x:Class="TestSilverlightApplication.MainPage"
	xmlns:telerikGridView="clr-namespace:Telerik.Windows.Controls;assembly=Telerik.Windows.Controls.GridView"
	xmlns:telerikData="clr-namespace:Telerik.Windows.Data;assembly=Telerik.Windows.Data"
    mc:Ignorable="d"
    d:DesignHeight="300" d:DesignWidth="400">

    <Grid x:Name="LayoutRoot" Background="White">

		<telerik:RadGridView x:Name="grdHistory"
                                          CanUserFreezeColumns="False" AutoExpandGroups="True" ShowGroupPanel="True" AutoGenerateColumns="False"
                                         ItemsSource="{Binding AgentHistory}" >
			<telerikGridView:RadGridView.Columns>
				<telerikGridView:GridViewDataColumn     Header="Name" DataMemberBinding="{Binding Name}"
                                                          IsReadOnly="True" IsGroupable="True" IsFilterable="True" IsVisible="True"/>
				<telerikGridView:GridViewDataColumn  Header="Agent" DataMemberBinding="{Binding Agent}" Width="600"
                                                                 IsFilterable="True" IsGroupable="True" IsReadOnly="True"/>
			</telerikGridView:RadGridView.Columns>

			<telerikGridView:RadGridView.GroupDescriptors>
				<telerikData:GroupDescriptor Member="Name"/>
			</telerikGridView:RadGridView.GroupDescriptors>

			<telerikGridView:RadGridView.GroupHeaderTemplate>
				<DataTemplate>
					<HyperlinkButton Content="{Binding Name}"/>
				</DataTemplate>
			</telerikGridView:RadGridView.GroupHeaderTemplate>

		</telerik:RadGridView>

	</Grid>
</UserControl>

[Maya]

Hi Ravindranath,


You need to change the Binding in the Content Property of the HyperlinkButton:

<telerik:RadGridView.GroupHeaderTemplate>
    <DataTemplate>
        <HyperlinkButton Content="{Binding Header}"/>
    </DataTemplate>
</telerik:RadGridView.GroupHeaderTemplate>

All the best,
Maya
the Telerik team

[Angie]

Nice That works. Thanks alot.
