Getting rid of the legend

4 posts, 0 answers
  1. Steve
    Steve avatar
    36 posts
    Member since:
    Feb 2011

    Posted 15 Jul 2011 Link to this post

    Hi there.

    I've been through the online help and haven't been able to find an answer to this one so far as I can tell. I just want to get rid of the legend bar from my chart. It takes up quite a lot of space!

    Thanks.
  2. Sia
    Admin
    Sia avatar
    756 posts

    Posted 19 Jul 2011 Link to this post

    Hi John,

    You need to collapse it. Please check this example for reference.

    Here is a code snippet:
    <telerik:ChartDefaultView>
        <telerik:ChartDefaultView.ChartArea>
            <telerik:ChartArea LegendName="PrimaryLegend">
                <telerik:ChartArea.AxisY>
                    <telerik:AxisY Title="GDP (in million USD)" />
                </telerik:ChartArea.AxisY>
            </telerik:ChartArea>
        </telerik:ChartDefaultView.ChartArea>
        <telerik:ChartDefaultView.ChartLegend>
            <telerik:ChartLegend x:Name="PrimaryLegend" Visibility="Collapsed" />
        </telerik:ChartDefaultView.ChartLegend>
    </telerik:ChartDefaultView>

    Kind regards,
    Sia
    the Telerik team

    Register for the Q2 2011 What's New Webinar Week. Mark your calendar for the week starting July 18th and book your seat for a walk through of all the exciting stuff we will ship with the new release!

  3. Steve
    Steve avatar
    36 posts
    Member since:
    Feb 2011

    Posted 19 Jul 2011 Link to this post

    I'm afraid that's not working for me.

    Here's the code from before:

    XAML:

    <telerikChart:RadChart x:Name="RadChart" Grid.Row="1" Margin="5,5,5,5" Background="#EEC1E8F2" />


    And then after:



    <telerikChart:RadChart x:Name="RadChart" Grid.Row="1" Margin="5,5,5,5" Background="#EEC1E8F2">
     <telerik:ChartDefaultView>
     <telerik:ChartDefaultView.ChartArea>
    <telerik:ChartArea LegendName="PrimaryLegend">
    <telerik:ChartArea.AxisY>
    <telerik:AxisY Title="GDP (in million USD)"/>
    </telerik:ChartArea.AxisY>
    </telerik:ChartArea>
    </telerik:ChartDefaultView.ChartArea
    <telerik:ChartDefaultView.ChartLegend>
    <telerik:ChartLegend x:Name="PrimaryLegend" Visibility="Collapsed"/>
    </telerik:ChartDefaultView.ChartLegend>
    </telerik:ChartDefaultView>
    </telerikChart:RadChart>



    Within this there is some code in the view model:

    SeriesMapping





    smapping = new SeriesMapping();



    smapping.LegendLabel =



    "Publishing thingy";



    smapping.SeriesDefinition =



    new BarSeriesDefinition();



    smapping.ItemMappings.Add(



    new ItemMapping("Month", DataPointMember.XValue));



    smapping.ItemMappings.Add(



    new ItemMapping("Quantity", DataPointMember.YValue));



    smapping.ItemMappings.Add(



    new ItemMapping("MonthName", DataPointMember.XCategory));



    PublishingChart.SeriesMappings.Add(smapping);

    PublishingChart.ItemsSource =



    this.PopulateData();



    That said, I tried removing the code in the view model to see if it made a difference - it did not. All I can say for sure is that the legend bar on the chart is still very much there.

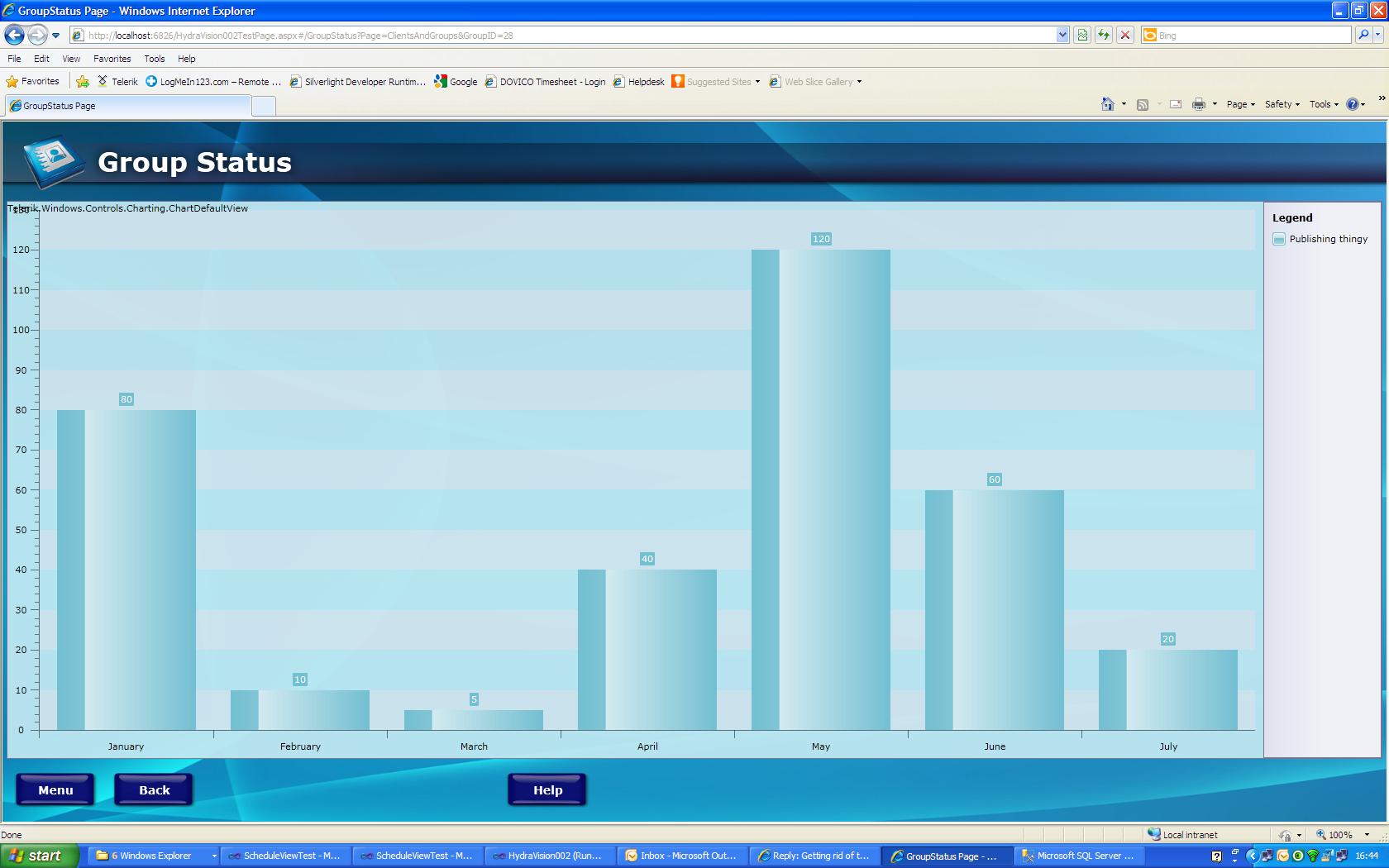

    I include two pictures. One is how the graph looks in the first instance (before I added the XAML you suggested). This is called 'without additional XAML.jpg'. The second image shows the chart with the additional XAML. This is called 'with additional XAML.jpg'. As far as I can see, the only difference is some text in the top left corner.

    Perhaps you can offer some suggestions?

  4. Sia
    Admin
    Sia avatar
    756 posts

    Posted 21 Jul 2011 Link to this post

    Hi John,

    Your mistake was difficult for finding :) I am sorry for misleading you with my code snippet.
    Here is what you need to add in your XAML:
    <telerik:RadChart x:Name="RadChart"   Margin="5,5,5,5" Background="#EEC1E8F2">
        <telerik:RadChart.DefaultView>
            <telerik:ChartDefaultView>
                <telerik:ChartDefaultView.ChartArea>
                    <telerik:ChartArea LegendName="legend">
                        <telerik:ChartArea.AxisY>
                            <telerik:AxisY Title="GDP (in million USD)"/>
                        </telerik:ChartArea.AxisY>
                    </telerik:ChartArea>
                </telerik:ChartDefaultView.ChartArea>
                <telerik:ChartDefaultView.ChartLegend>
                    <telerik:ChartLegend x:Name="legend" Visibility="Collapsed" />
                </telerik:ChartDefaultView.ChartLegend>
            </telerik:ChartDefaultView>
        </telerik:RadChart.DefaultView>
    </telerik:RadChart>

    You can hide your Legend in code-behind also (then you won't need any additional XAML):
    RadChart.DefaultView.ChartLegend.Visibility = System.Windows.Visibility.Collapsed;

    Regards,
    Sia
    the Telerik team

    Register for the Q2 2011 What's New Webinar Week. Mark your calendar for the week starting July 18th and book your seat for a walk through of all the exciting stuff we will ship with the new release!
