Display Multiple Group by on bar chart

2 posts, 0 answers
  1. Divyang
    Divyang avatar
    13 posts
    Member since:
    Dec 2010

    Posted 06 Apr 2011 Link to this post

    Hi,

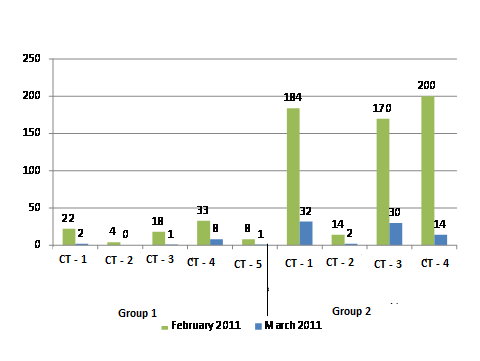

    I want to display bar chart with multi level group by. Please see attached image. CT -1 , CT -2 are categories in two different group "Group 1" and "Group 2".

    Please help me to resolve this ?
  2. Evgenia
    Admin
    Evgenia avatar
    1437 posts

    Posted 11 Apr 2011 Link to this post

    Hello Divyang,

    To be able to achieve this multi-level grouping you can use our Drill Down feature that displays data in hierarchical manner. You can either display the levels of hierarchy in one and the same Chart Area or in Multiple Chart Areas. For full source code example take a look at our demo.

    Kind regards,
    Evgenia
    the Telerik team
