Diagram - multiple parents

[Jon]

I have created a Diagram (using the example from https://demos.telerik.com/aspnet-mvc/diagram) to show a workflow which is great, but i have an issue which im not sure is supported by the Diagram control.

I have a single parent box and then i can have one or more children from the parent, which works fine. If I have two children from the parent I want both children to then link to a single (same) child. I cant seem to be able to link a child to multiple parents. Is this possible?

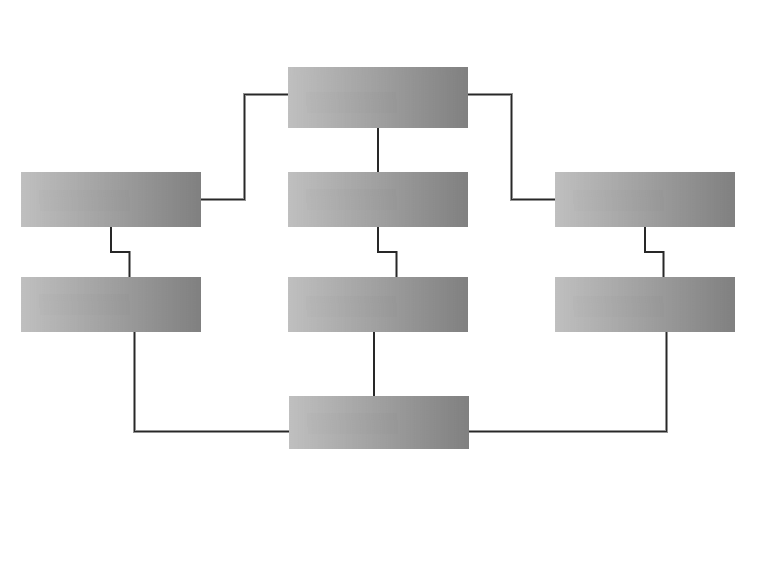

I've attached an example image to show what's required.

[Viktor Tachev]

Hi Jon,



Thank you for contacting us.

The functionality shown on the screenshot can be achieved by manually adding connections to specific shapes. For adding a shape the addShape method can be used and for a connection use the connect method.

Check out the example below that illustrates how the methods can be utilized:

https://demos.telerik.com/kendo-ui/diagram/api



Regards,
Viktor Tachev
Progress Telerik
