Datatable

[John Giblin]

I didnt see the datatable in Silverlight like in Asp.net.  Is it not included in silverlight??

thanks

[Nikolay]

Hello John Giblin,

I suppose you meant a GridView control that is available as part of our Silverlight offering. You can see all the controls that are available in our RadControls for Silverlight bundle at:
http://www.telerik.com/products/silverlight.aspx

Hope this helps.

Best wishes,
Nick
the Telerik team

[John Giblin]

There is an option in the Rad Chart asp.net to show datatable. I guess it is not available in silverlight.

[Yavor]

Hello John,

The following article contains additional information on the databinding support for the control:

http://www.telerik.com/help/aspnet-ajax/buildingdatabind.html

You can also directly bind to the database object, as shown in the following article:

http://www.telerik.com/help/aspnet-ajax/buildingdatabinddatabase.html

I hope this information gets you started properly.

Regards,
Yavor
the Telerik team

[John Giblin]

Sorry I didn't think I needed that much explanation for this.  I should have explain myself better

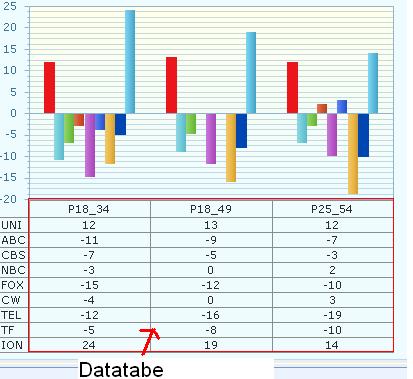

In Asp.net Rad Chart there is a feature to show the datable below the chart. See attachment

I didnt see that same feature in SilverLight.

[Ves]

Hello John Giblin,

I am afraid that's correct. RadChart for Silverlight does not support this out of the box. You can set RadChart.UseDefaultLayout property to false as shown here and provide your own layout for RadChart, including a RadGridView, or put directly RadGridView beneath the chart. In both cases, you will be responsible for populating RadGridView with data.

Best regards,
Ves
the Telerik team

[John Giblin]

thanks.  I see a good amount of example to get around this.
is there any plans to add this feature anytime soon

[Ves]

Hello John,

I am afraid this is not in our plans for RadChart, you will need to follow the examples to achieve it. Let us know if you come across a problem with the implementation.

Best regards,
Ves
the Telerik team

[John Giblin]

Thanks Ves. From the examples I can use a datagrid.

As you can see from my screen shot, I am using the DataGroups.  I would like it is line up in the same way.  Is there a way to get the width of the group and group names.

thanks.

[Ves]

Hi John,

I am not sure I followed your question. Did you mean to attach a screenshot? In this case maybe the upload has failed. Please, try re-uploading it and provide more details about your question.

Looking forward to hearing from you,
Ves
the Telerik team

[John Giblin]

it is a few posts above from me.  the attached doc is

[Ves]

Hi John,

I am afraid I could not see the relation between the data groups mentioned and the  ChartDatatable.jpg image, so I asked if there was another image. Can you please provide more details - which width do you need to get and how would you expect the grid to look like?

Best regards,
Ves
the Telerik team

[John Giblin]

you dont see how the chart and the datatable are grouped by the series (ie p18_34, p1849, etc

[Ves]

Hello John,

You will need to configure the grid manually. As for the alignment -- here is how to obtain the width of the area, used to plot the bars:

RadChart1.ChildrenOfType<ChartPanel>().ElementAt(0).ActualWidth;

Then you need to divide that number by the number of items along the X axis and use the result to define the width of each column in the grid.

Best regards,
Ves
the Telerik team
