Custom AxisY Label

4 Answers 74 Views

Chart

This is a migrated thread and some comments may be shown as answers.

This question is locked. New answers and comments are not allowed.

Igor asked on 18 Sep 2013, 06:29 AM

Hi,
I have a RadChart:

<telerik:RadChart x:Name="radChartDowntime" telerik:StyleManager.Theme="Windows8"

ItemsSource="{Binding Items}" MaxHeight="200">

<telerik:RadChart.SamplingSettings>

<telerik:SamplingSettings SamplingThreshold="0" />

</telerik:RadChart.SamplingSettings>

<telerik:RadChart.SeriesMappings>

<telerik:SeriesMapping LegendLabel="Test">

<telerik:SeriesMapping.SeriesDefinition>

<telerik:StepLineSeriesDefinition ShowItemLabels="False" ShowPointMarks="False" />

</telerik:SeriesMapping.SeriesDefinition>

<telerik:SeriesMapping.ItemMappings>

<telerik:ItemMapping DataPointMember="XValue" FieldName="Created"></telerik:ItemMapping>

<telerik:ItemMapping DataPointMember="YValue" FieldName="State"></telerik:ItemMapping>

</telerik:SeriesMapping.ItemMappings>

</telerik:SeriesMapping>

</telerik:RadChart.SeriesMappings>

<telerik:RadChart.DefaultView>

<telerik:ChartDefaultView>

<telerik:ChartDefaultView.ChartLegend>

<telerik:ChartLegend Visibility="Collapsed" />

</telerik:ChartDefaultView.ChartLegend>

<telerik:ChartDefaultView.ChartArea>

<telerik:ChartArea>

<telerik:ChartArea.AxisY>

<telerik:AxisY Step="1" MinorTicksVisibility="Collapsed"

MaxValue="2" AutoRange="False" StripLinesVisibility="Collapsed">

<telerik:AxisY.AxisStyles>

<telerik:AxisStyles ItemLabelStyle="{StaticResource ChartVerticalLabelStyle}" />

</telerik:AxisY.AxisStyles>

</telerik:AxisY>

</telerik:ChartArea.AxisY>

<telerik:ChartArea.AxisX>

<telerik:AxisX LabelRotationAngle="90" IsDateTime="True"

DefaultLabelFormat="dd.MM hh:mm">

</telerik:AxisX>

</telerik:ChartArea.AxisX>

<telerik:ChartArea.ZoomScrollSettingsX>

<telerik:ZoomScrollSettings ScrollMode="None" />

</telerik:ChartArea.ZoomScrollSettingsX>

</telerik:ChartArea>

</telerik:ChartDefaultView.ChartArea>

</telerik:ChartDefaultView>

</telerik:RadChart.DefaultView>

</telerik:RadChart>

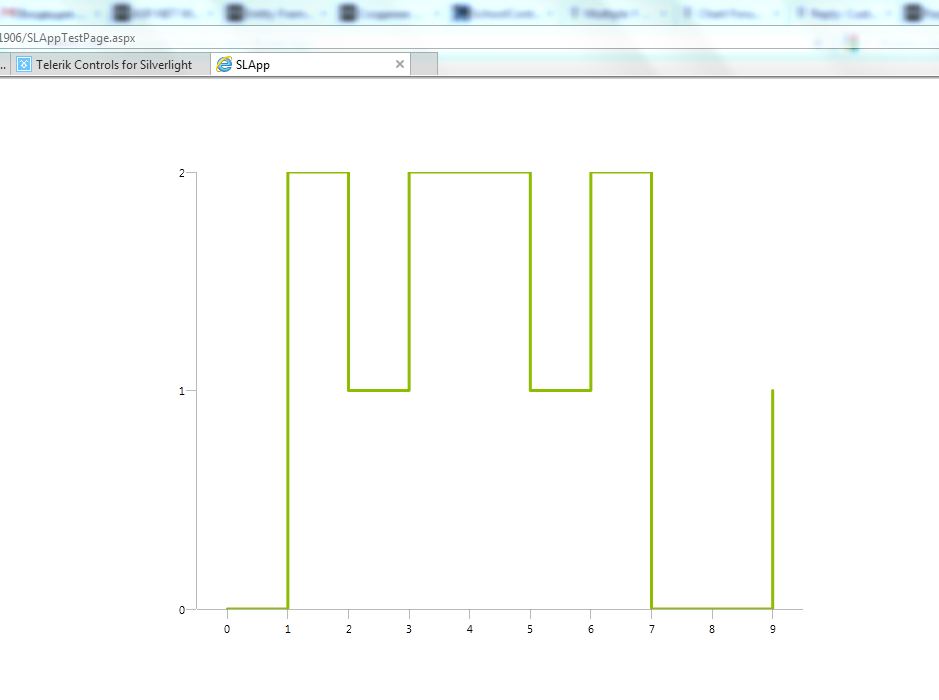

How do I display a custom AxisY label? For example, 0 - Downtime, 1 - Slowdown, 2 - InWork

4 Answers, 1 is accepted

Accepted

answered on 20 Sep 2013, 06:20 PM

SL-Chart-738094-YAxis-Label-Template.zip

Hi Igor,

You can achieve this by overriding the default label template using an implicit style and a converter to modify the TextBlocks' Text.

I have attached a sample project demonstrating that.

Regards,
Petar Kirov
Telerik

TRY TELERIK'S NEWEST PRODUCT - EQATEC APPLICATION ANALYTICS for SILVERLIGHT.
Learn what features your users use (or don't use) in your application. Know your audience. Target it better. Develop wisely.
Sign up for Free application insights >>

answered on 23 Sep 2013, 09:32 AM


Thanks, it works!
But if I use the "Windows 8" Theme, that does not work.

...

<Grid x:Name="LayoutRoot" Background="White" Width="640" Height="480">

<telerik:RadChart x:Name="RadChart1" telerik:StyleManager.Theme="Windows8">

<telerik:RadChart.SeriesMappings>

<telerik:SeriesMapping ItemsSource="{Binding Data}">

...

Perhaps this is due to the Dependency Property Value Precedence
