[Solved] Child Hierarchy table is blank when parent gridview's AutoGenerateColumns = false

[Lance]

Hi,

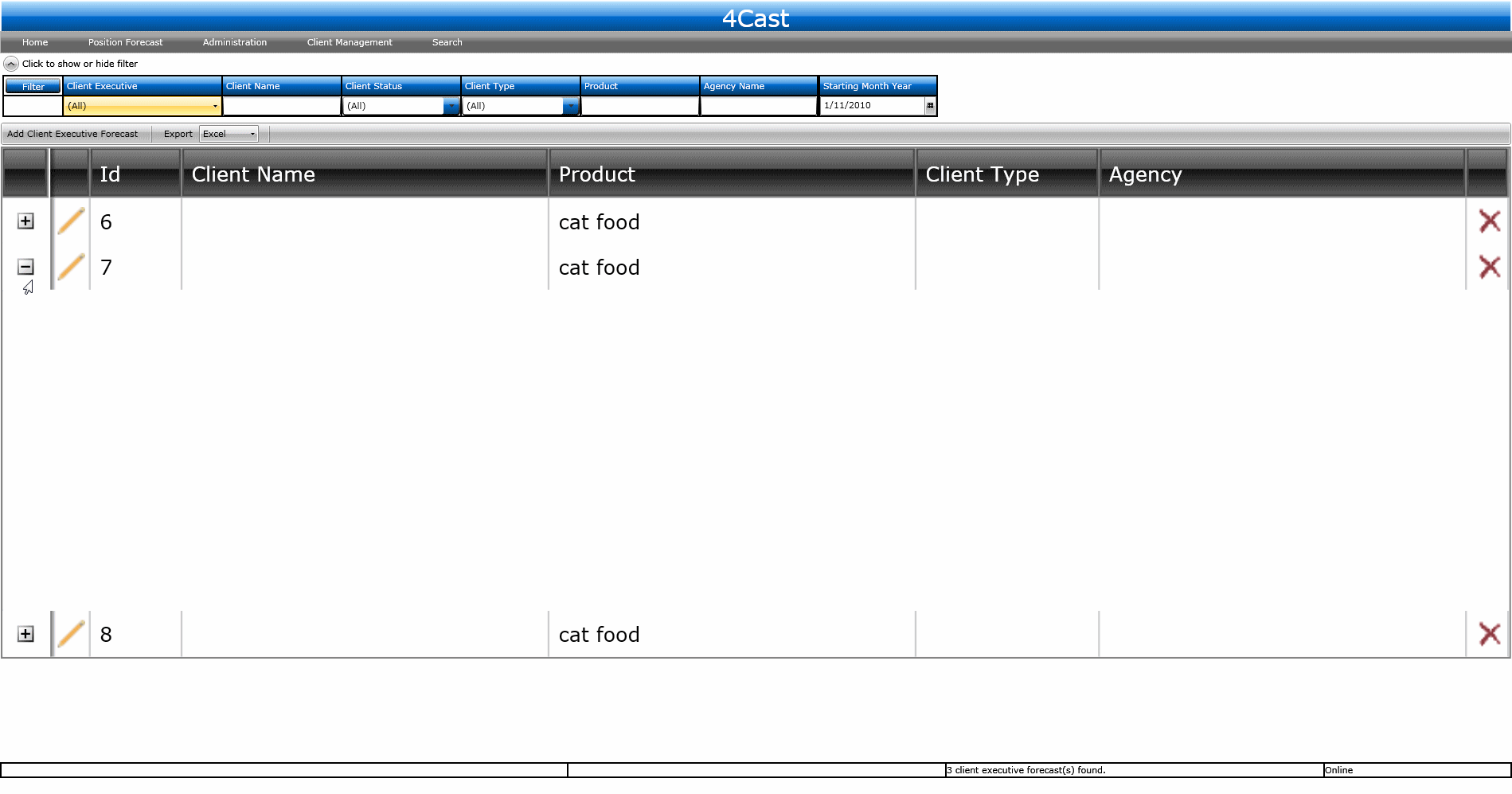

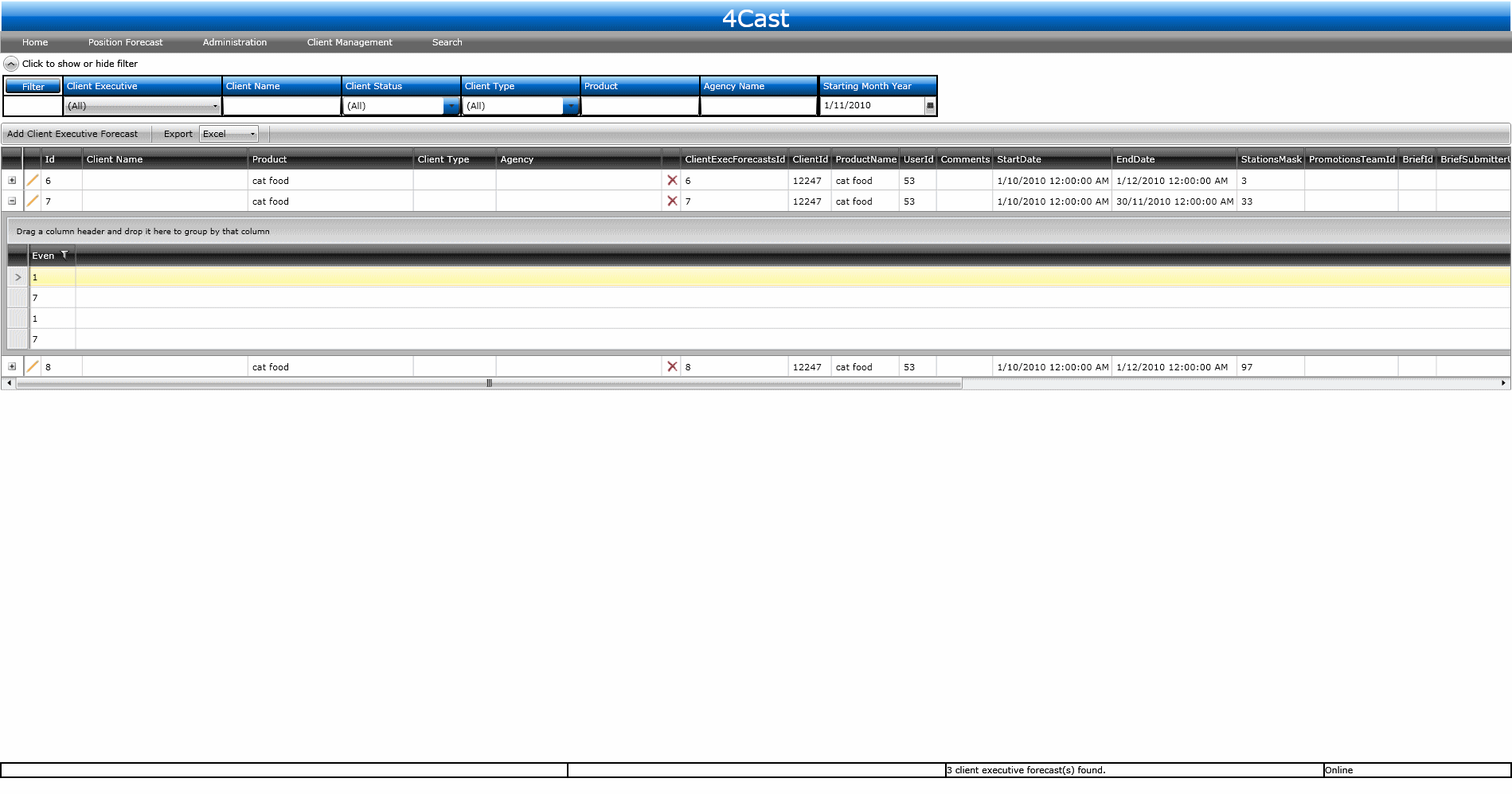

I have a RadGridView that is bound to an ObservableCollection of objects that have a property that is an ObservableCollection.  To represent this, my gridview has a child gridview that is bound to this property.  When I have the parent gridview's AutoGenerateColumns property set to false, the child grid is blank when expanded.  It takes up the appropriate space as it would if visible but is just a blank white rectangle (see attachment - GridViewWithBlankChild.gif).  If I set the parent gridview's AutoGenerateColumns property to true it all works as I would expect (see attachment - GridViewAutoGenerateColumnsIsTrue.gif).  I need to define both the parent and child gridview columns so this is not an option.  Please help.

Below is my xaml:

<telerik:RadGridView x:Name="grdClientExecForecasts"
     TabNavigation="Cycle"
     DataLoadMode="Asynchronous"
     AutoGenerateColumns="True"
     CanUserReorderColumns="False"
     CanUserResizeColumns="False"
     IsEnabled="True"
     IsReadOnly="False"
     MaxWidth="1825"
     MaxHeight="840"
     MinHeight="0"
     VerticalAlignment="Stretch"
     HorizontalAlignment="Left"
     SelectionMode="Single"
     RowDetailsVisibilityMode="Collapsed"
     EditTriggers="CellClick"
     SelectionUnit="Cell"
     IsFilteringAllowed="False"
     ShowGroupPanel="False"
     ShowColumnFooters="False"
     ShowGroupFooters="False"
     ShowInsertRow="False"
     RowIndicatorVisibility="Collapsed"
     ClipboardCopyMode="All"
     ClipboardPasteMode="None"
     KeyDown="grdClientExecForecasts_KeyDown"
     BeginningEdit="grdClientExecForecasts_BeginningEdit"
     CurrentCellChanged="grdClientExecForecasts_CurrentCellChanged"
        >
     <telerik:RadGridView.Columns>
         <this:ImageColumn Source="../images/edit.png" MouseLeftButtonDown="Edit_MouseLeftButtonDown"  Tooltip="Click to edit client executive forecast." ImageHeight="15" ImageWidth="15" />
         <telerik:GridViewDataColumn
             Header="Id" Width="50"
             DataMemberBinding="{Binding ClientExecForecastsId}"
             IsReadOnly="True"/>
         <telerik:GridViewDataColumn
             Header="Client Name" Width="200"
             DataMemberBinding="{Binding ClientName}"
             IsReadOnly="True"/>
         <telerik:GridViewDataColumn
             Header="Product" Width="200"
             DataMemberBinding="{Binding ProductName}"
             IsReadOnly="True"/>
         <telerik:GridViewDataColumn
             Header="Client Type" Width="100" MaxWidth="100" MinWidth="75"
             DataMemberBinding="{Binding ClientTypeId, Mode=TwoWay, Converter={StaticResource clientTypeConverter}}"
             IsReadOnly="True"/>
         <telerik:GridViewDataColumn
             Header="Agency" Width="200" MaxWidth="200" MinWidth="76"
             DataMemberBinding="{Binding AgencyName}"
             IsReadOnly="True"/>
         <this:ImageColumn Source="../images/delete.png" MouseLeftButtonDown="Delete_MouseLeftButtonDown" Tooltip="Click to delete client executive forecast." ImageHeight="15" ImageWidth="15" />
     </telerik:RadGridView.Columns>
     <telerik:RadGridView.HierarchyChildTemplate>
         <DataTemplate>
             <telerik:RadGridView AutoGenerateColumns="False" ItemsSource="{Binding ClientExecForecastAmounts}" DataLoadMode="Asynchronous" >
                 <telerik:RadGridView.Columns>
                     <telerik:GridViewDataColumn Header="Station" DataMemberBinding="{Binding StationId}" />
                 </telerik:RadGridView.Columns>
             </telerik:RadGridView>
         </DataTemplate>
     </telerik:RadGridView.HierarchyChildTemplate>
     <telerik:RadGridView.ChildTableDefinitions>
         <telerik:GridViewTableDefinition>
             <telerik:GridViewTableDefinition.Relation>
                 <telerik:PropertyRelation ParentPropertyName="ClientExecForecastAmounts"/>
             </telerik:GridViewTableDefinition.Relation>
         </telerik:GridViewTableDefinition>
     </telerik:RadGridView.ChildTableDefinitions>
 </telerik:RadGridView>

[Maya]

Hello Tim English,

I tried to reproduce the issue you specified, but I was not able to. I am sending you the sample project I tested the problem on. You may take a look at it and share if there are some discrepancies between it and your requirements.

Greetings,
Maya
the Telerik team

[Lance]

Hi Maya,

Thanks for your reply.  I've discovered that the problem occurs when you wrap the RadGridView in a ViewBox.  If you wrap the RadGridView in your example in a ViewBox you will be able to reproduce this issue.

[Maya]

Hello Tim English,

Indeed, you are quite right - once the grid is defined inside a ViewBox, the described behavior occurs. We would investigate the issue and inform you as soon as we have a solution on the topic.
For the time being I may propose you to set the child table inside RowDetails instead of HirarchyChildTemplate:

<Viewbox>
            <telerik:RadGridView Grid.Row="0"
                                 Name="clubsGrid" ItemsSource="{Binding Clubs}"
                                 AutoGenerateColumns="False"
                                 Margin="5">
                <telerik:RadGridView.RowDetailsTemplate>
                    <DataTemplate>
                        <telerik:RadGridView Name="playersGrid"
                                             ItemsSource="{Binding Players}"
                                             AutoGenerateColumns="False">
                            <telerik:RadGridView.Columns>
                                <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}"/>
                                <telerik:GridViewDataColumn DataMemberBinding="{Binding Number}"/>
                                <telerik:GridViewDataColumn DataMemberBinding="{Binding Position}"/>
                                <telerik:GridViewDataColumn DataMemberBinding="{Binding Country}"/>
                            </telerik:RadGridView.Columns>
                        </telerik:RadGridView>
                    </DataTemplate>
                </telerik:RadGridView.RowDetailsTemplate>

                <telerik:RadGridView.Columns>
                    <telerik:GridViewToggleRowDetailsColumn />
                    <telerik:GridViewDataColumn DataMemberBinding="{Binding Name}"/>
                    <telerik:GridViewDataColumn DataMemberBinding="{Binding Established}"
                                                Header="Est."
                                                DataFormatString="{}{0:yyyy}"/>
                    <telerik:GridViewDataColumn DataMemberBinding="{Binding StadiumCapacity}"
                                                Header="Stadium"
                                                DataFormatString="{}{0:N0}"/>
                </telerik:RadGridView.Columns>
            </telerik:RadGridView>
        </Viewbox>

Furthermore, when defining the RadGridView inside a control that is measured with Infinity - the ViewBox in this case, the virtualization of the grid will be turned off. So, if you are working with a large data set, the performance will be decreased.


Sincerely yours,
Maya
the Telerik team
