  1. Sang Jun Park
    Sang Jun Park avatar
    3 posts
    Member since:
    Aug 2009

    Posted 10 Oct 2010 Link to this post

    I have a chart composed by SeriesMapping.

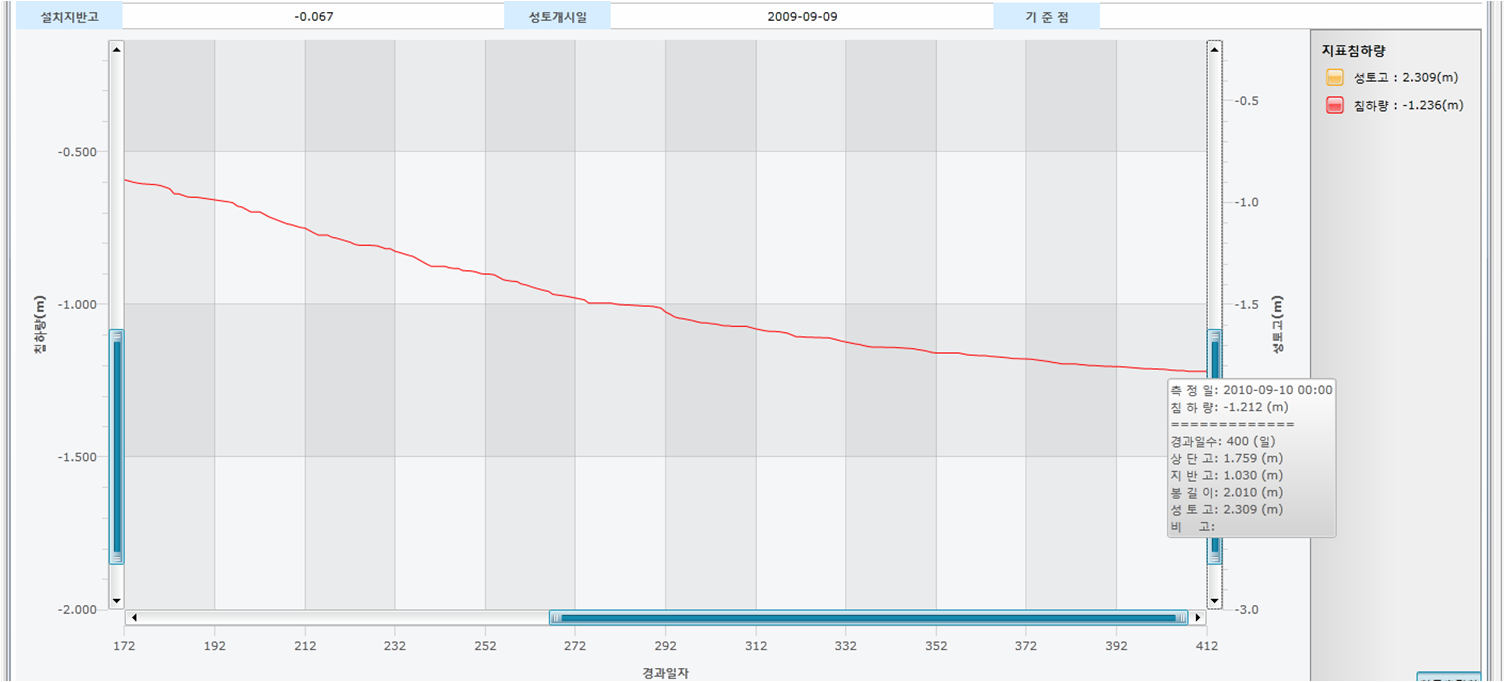

    But does not display the tooltip. --> (a.png)

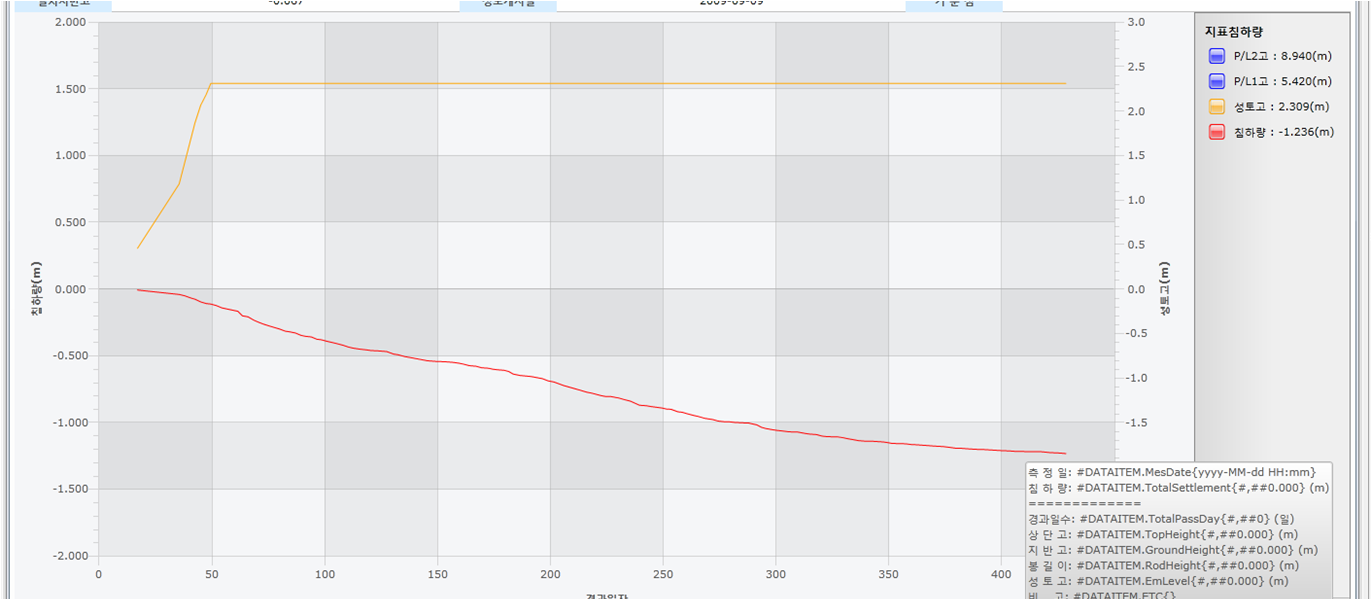

    However, the tooltip is displayed, use the Zoom. --> (b.png)

    a.png & b.png is same data.

    What is the reason?

    =============================

            private void SetChartSettlement()
            {

                #region 침하량

                SettlementMapping.LegendLabel = "침하량(m)";
                SettlementMapping.SeriesDefinition = new LineSeriesDefinition();
                (SettlementMapping.SeriesDefinition as LineSeriesDefinition).ShowPointMarks = false;
                (SettlementMapping.SeriesDefinition as LineSeriesDefinition).ShowItemLabels = false;
                (SettlementMapping.SeriesDefinition as LineSeriesDefinition).ShowItemToolTips = true;
                SettlementMapping.SeriesDefinition.ShowItemToolTips = true;
                SettlementMapping.SeriesDefinition.Appearance.PointMark.Shape = MarkerShape.Triangle;
                SettlementMapping.SeriesDefinition.Appearance.PointMark.Shape = MarkerShape.Triangle;
                SettlementMapping.SeriesDefinition.Appearance.PointMark.Stroke = new SolidColorBrush(Colors.Red);
                SettlementMapping.SeriesDefinition.Appearance.PointMark.StrokeThickness = 1;
                SettlementMapping.SeriesDefinition.Appearance.PointMark.Fill = new SolidColorBrush(Colors.Red);
                SettlementMapping.SeriesDefinition.Appearance.StrokeThickness = 1;
                SettlementMapping.SeriesDefinition.Appearance.Stroke = new SolidColorBrush(Colors.Red);
                SettlementMapping.SeriesDefinition.ItemToolTipFormat = "측 정 일: #DATAITEM.MesDate{yyyy-MM-dd HH:mm}" +
                            //"\n침 하 량: #DATAITEM.TotalSettlement{#,##0.000} (m)" +
                            "\n침 하 량: #DATAITEM.TotalSettlement{###,###,##0.000} (m)" +
                            "\n=============" +
                            "\n경과일수: #DATAITEM.TotalPassDay{#,##0} (일)" +
                            "\n상 단 고: #DATAITEM.TopHeight{#,##0.000} (m)" +
                            "\n지 반 고: #DATAITEM.GroundHeight{#,##0.000} (m)" +
                            "\n봉 길 이: #DATAITEM.RodHeight{#,##0.000} (m)" +
                            "\n성 토 고: #DATAITEM.EmLevel{#,##0.000} (m)" +
                            "\n비    고: #DATAITEM.ETC{}";

                SettlementMapping.ItemMappings.Add(new ItemMapping("TotalPassDay", DataPointMember.XValue));
                SettlementMapping.ItemMappings.Add(new ItemMapping("TotalSettlement", DataPointMember.YValue));
                this.chart.SeriesMappings.Add(SettlementMapping);

                #endregion 침하량



            }

            private void DataLoadComplete(DomainContextLoadBatch batch)
            {
                try
                {

                    this.busyIndicator.IsBusy = false;
                    this.btnPrint.IsEnabled = true;
                    this.btnModify.IsEnabled = true;

                    if (batch != null)
                    {

                        if (batch.FailedOperationCount > 0)
                        {
                            // Do Error handling
                        }
                        else
                        {

                            this.chart.DefaultView.ChartLegend.Visibility = Visibility.Visible;
                            this.chart.DefaultView.ChartArea.AxisX.LayoutMode = AxisLayoutMode.Normal;
                            this.chart.DefaultView.ChartArea.AxisX.AutoRange = true;

                            this.SetChartPL();

                            this.SetChartEmLevel();

                            this.SetChartSettlement();

                            this._so = _ds.T_SOs.FirstOrDefault();
                            this.DataContext = _so;

                            if (_ds.T_SO_SettlementPlates.Count > 0)
                            {
                                //값표시
                                _sp = this._so.T_SO_SettlementPlate.FirstOrDefault();

                                this.OriginEL.Text = _sp.OriginEL.ToString();
                                this.EmStartDate.Text = (_sp.EmStartDate ?? DateTime.Now).ToString("yyyy-MM-dd"); // 성토시작일
                                _mdList = SettlementPlateFunc.GetDataSource(_ds.T_SOs.FirstOrDefault());
                                if (_mdList.Count > 0)
                                {

                                    //침하량 축 Range
                                    double seMax = 0;
                                    if (Math.Abs(_mdList.Max(m => m.TotalSettlement)) > Math.Abs(_mdList.Min(m => m.TotalSettlement)))
                                    {
                                        seMax = Math.Abs(_mdList.Max(m => m.TotalSettlement));
                                    }
                                    else
                                    {
                                        seMax = Math.Abs(_mdList.Min(m => m.TotalSettlement));
                                    }
                                    seMax = Utils.RangeCal(seMax);

                                    //성토고 축 Range
                                    double emMax = 0;

                                    if (Math.Abs(_mdList.Max(m => m.EmLevel)) > Math.Abs(_mdList.Min(m => m.EmLevel)))
                                    {
                                        emMax = Math.Abs(_mdList.Max(m => m.EmLevel));
                                    }
                                    else
                                    {
                                        emMax = Math.Abs(_mdList.Min(m => m.EmLevel));
                                    }

                                    emMax = Utils.RangeCal(emMax);



                                    this.emLevelMapping.LegendLabel = "성토고 : " + _mdList.Last().EmLevel.ToString("0.000") + "(m)";
                                    this.SettlementMapping.LegendLabel = "침하량 : " + _mdList.Last().TotalSettlement.ToString("0.000") + "(m)";

                                    this.chart.DefaultView.ChartArea.AxisY.AddRange(-seMax, seMax, Utils.StepCal(seMax));
                                    this.chart.DefaultView.ChartArea.AxisY.AutoRange = false;
                                    this.chart.DefaultView.ChartArea.AxisY.ExtendDirection = AxisExtendDirection.None;
                                    this.chart.DefaultView.ChartArea.AxisY.DefaultLabelFormat = "0.000";

                                    this.chart.DefaultView.ChartArea.AdditionalYAxes[0].AddRange(-emMax, emMax, Utils.StepCal(emMax));
                                    this.chart.DefaultView.ChartArea.AdditionalYAxes[0].AutoRange = false;
                                    this.chart.DefaultView.ChartArea.AdditionalYAxes[0].ExtendDirection = AxisExtendDirection.None;
                                    this.chart.DefaultView.ChartArea.AdditionalYAxes[0].DefaultLabelFormat = "0.0";

                                    this.chart.ItemsSource = _mdList;

                                    this.dataGrid.ItemsSource = _mdList;

                                    #region PL고 설정

                                    if ((_sp.PL1 ?? 0) > 0)
                                    {
                                        DataPoint dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL1;
                                        dap.XValue = 0;
                                        dataPL1.Add(dap);

                                        dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL1;
                                        dap.XValue = _mdList.LastOrDefault().TotalPassDay;
                                        dataPL1.Add(dap);
                                        this.dataPL1.LegendLabel = "P/L1고 : " + (_sp.PL1 ?? 0).ToString("0.000") + "(m)";
                                        this.chart.DefaultView.ChartArea.DataSeries.Insert(0, this.dataPL1);
                                    }

                                    if ((_sp.PL2 ?? 0) > 0)
                                    {
                                        DataPoint dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL2;
                                        dap.XValue = 0;
                                        dataPL2.Add(dap);

                                        dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL2;
                                        dap.XValue = _mdList.LastOrDefault().TotalPassDay;
                                        dataPL2.Add(dap);
                                        this.dataPL2.LegendLabel = "P/L2고 : " + (_sp.PL2 ?? 0).ToString("0.000") + "(m)";
                                        this.chart.DefaultView.ChartArea.DataSeries.Insert(0, this.dataPL2);

                                    }

                                    if ((_sp.PL3 ?? 0) > 0)
                                    {
                                        DataPoint dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL3;
                                        dap.XValue = 0;
                                        dataPL3.Add(dap);

                                        dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL3;
                                        dap.XValue = _mdList.LastOrDefault().TotalPassDay;
                                        dataPL3.Add(dap);
                                        this.dataPL3.LegendLabel = "P/L3고 : " + (_sp.PL3 ?? 0).ToString("0.000") + "(m)";
                                        this.chart.DefaultView.ChartArea.DataSeries.Insert(0, this.dataPL3);

                                    }

                                    if ((_sp.PL4 ?? 0) > 0)
                                    {
                                        DataPoint dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL4;
                                        dap.XValue = 0;
                                        dataPL4.Add(dap);

                                        dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL4;
                                        dap.XValue = _mdList.LastOrDefault().TotalPassDay;
                                        dataPL4.Add(dap);

                                        this.dataPL4.LegendLabel = "P/L4고 : " + (_sp.PL4 ?? 0).ToString("0.000") + "(m)";
                                        this.chart.DefaultView.ChartArea.DataSeries.Insert(0, this.dataPL4);

                                    }

                                    if ((_sp.PL5 ?? 0) > 0)
                                    {
                                        DataPoint dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL5;
                                        dap.XValue = 0;
                                        dataPL5.Add(dap);

                                        dap = new DataPoint();
                                        dap.YValue = (double)_sp.PL5;
                                        dap.XValue = _mdList.LastOrDefault().TotalPassDay;
                                        dataPL5.Add(dap);

                                        this.dataPL5.LegendLabel = "P/L5고 : " + (_sp.PL5 ?? 0).ToString("0.000") + "(m)";
                                        this.chart.DefaultView.ChartArea.DataSeries.Insert(0, this.dataPL5);

                                    }
                                    #endregion PL고 설정
                                }
                            }
                        }
                    }
                    int rtime = (_so.RefleshTime ?? 60);
                    timer1.Interval = TimeSpan.FromMinutes(rtime);
                    this.timer1.Start();
                }
                catch (Exception ex)
                {
                    //MessageBox.Show(ex.ToString());
                }
                finally
                {

                    GC.Collect();
                    GC.WaitForPendingFinalizers();
                    GC.Collect();
                }
            }
