Blend RadPane / RadPaneGroup Content

12 Answers 168 Views
Docking
This is a migrated thread and some comments may be shown as answers.
Rider333
Top achievements
Rank 1
Rider333 asked on 17 Sep 2009, 01:11 PM
Hi all,

I'm evaluating the controls for use in an upcoming project. I have the trial version of 2009.2 (812) Siverlight controls installed. I'm using VS 2008 SP1 and Expression Blend 3.

I'm experimenting with docking, and I have the following xaml:

<



telerikDocking:RadDocking>







<telerikDocking:RadSplitContainer>







<telerikDocking:RadPaneGroup>







<telerikDocking:RadPane>







<telerikGridView:RadGridView Name="name"/>







</telerikDocking:RadPane>







</telerikDocking:RadPaneGroup>







</telerikDocking:RadSplitContainer>







</telerikDocking:RadDocking>




Visual Studio is OK with this. When I bring it up in Expression Blend 3, it gives me two errors:

"Cannot add content to an object of type "RadPaneGroup"
"Cannot add content to an object of type "RadPane"

And, of course I can then no longer use Blend for visual design. Blend is important to us...does anyone know how to eliminate this, or a workaround?

Much appreciated in advance!

LWW



12 Answers, 1 is accepted

Sort by
0
James H
Top achievements
Rank 1
answered on 21 Sep 2009, 07:43 AM
Did you get anywhere with this ? I am also evaluating the controls and have run into the same problem in Blend 3.

Regards

James.
0
James H
Top achievements
Rank 1
answered on 21 Sep 2009, 10:20 AM
It seems a bit hit and miss, if I add the xaml in VS, compile the code and edit it in Blend the controls work correctly. If I add them in Blend then the controls show the aforementioned error.
0
Rider333
Top achievements
Rank 1
answered on 21 Sep 2009, 01:21 PM
Nope, never solved this. For me it happens regardless if I add them in VS or Blend, or where I build it.
0
Kaloyan
Telerik team
answered on 22 Sep 2009, 10:30 AM
Hello Leigh Wells,

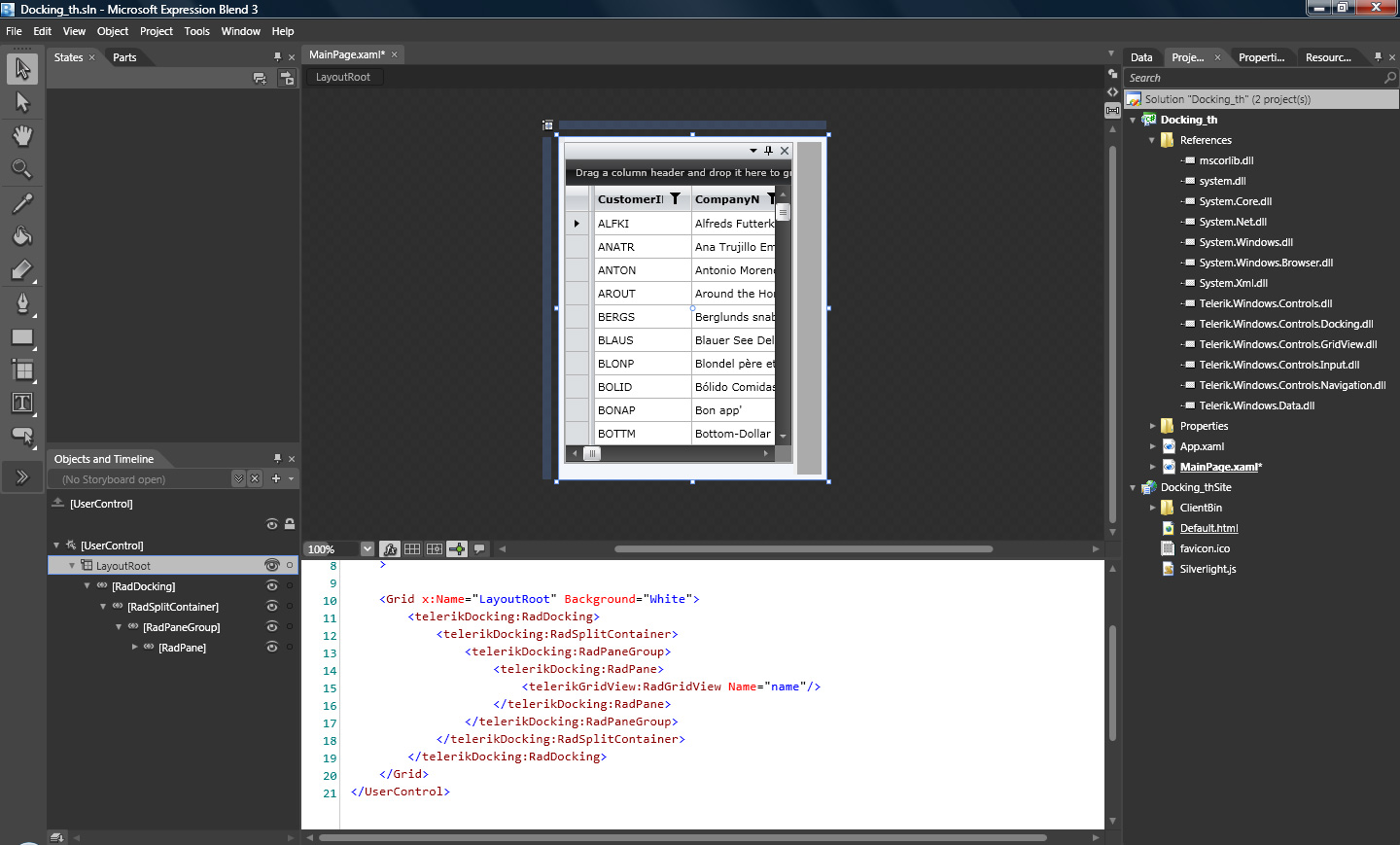

We were not able to reproduce the error. We tested the posted XAML in Blend 3 and in Visual Studio without any design-time errors. Attached is a screenshot of the XAML, opened in Blend.

What are we missing?

Best wishes,
Kaloyan
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
0
Todd Bush
Top achievements
Rank 1
answered on 20 Nov 2009, 02:35 PM
Hi,

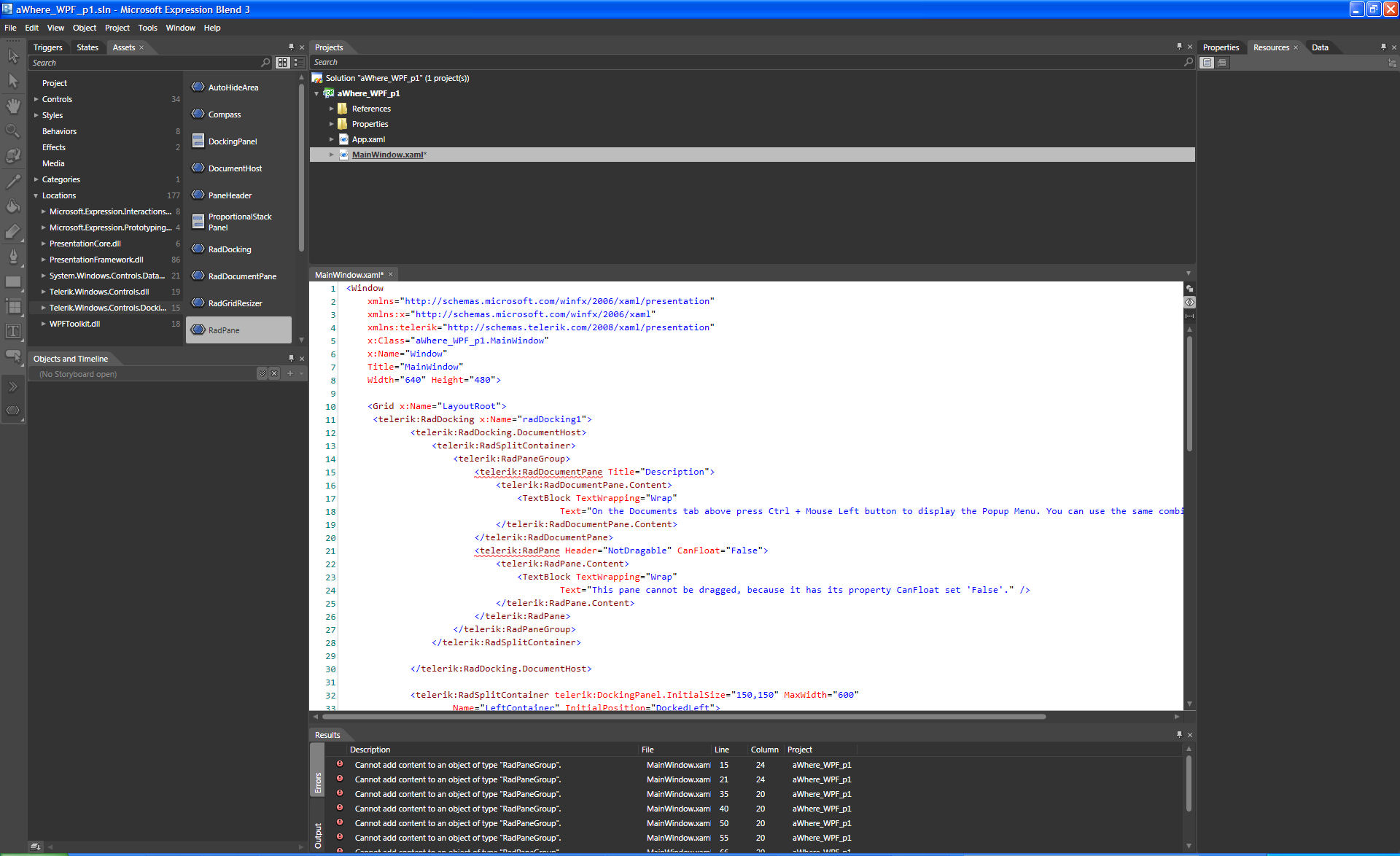

I am getting the same error. It has happened to me when pasting sample code from the First Look sample to a new WPF project in Expression Blend 3. Attached is a screenshot of the xaml page (same error message as others). "Cannot add content to an object of type "RadPaneGroup".

0
Kaloyan
Telerik team
answered on 24 Nov 2009, 11:50 AM
Hello Stewart Collis,

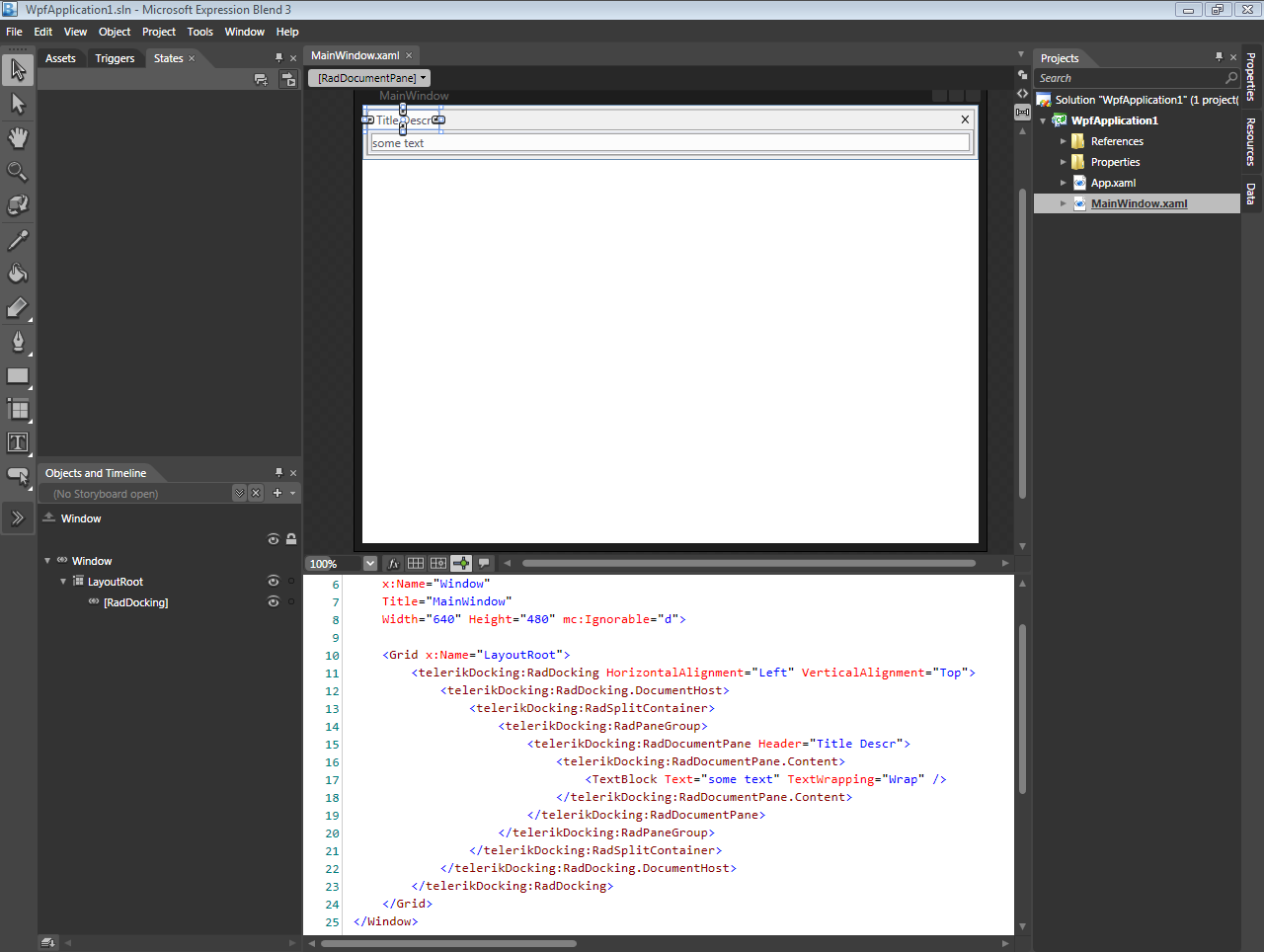

Please accept our apologies. Attached is a screenshot of what i am getting when using the RadDocking in Expression Blend. The project is using an assemblies from the latest Q3 2009 release.

Greetings,
Kaloyan
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
0
RickX
Top achievements
Rank 1
answered on 09 Dec 2009, 04:23 AM
I have the same problem using Expression Blend 3 and the RadDocking and child controls. The funny thing is that the project will Build and Run perfectly fine through Blend, but you just won't see the Design view due to "Invalid XAML"

The workaround for now is
1. Open the project in VS2008
2. Build the Project
3. Switch back to Blend, and now the errors will have vanished.

:) Hopefully this works for you.
0
Kaloyan
Telerik team
answered on 10 Dec 2009, 08:42 AM
Hello RickX,

Thank you for sharing this with us. It will be definitely of a good help if someone is facing this problem.

Sincerely yours,
Kaloyan
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
0
jkears
Top achievements
Rank 1
answered on 19 Dec 2009, 04:52 PM
I too hit the same issue but the work-around unfortunately does not work.

This is sad, as the two controls I wanted to utilize (Docking and DataGrid) with this product have so many issues that it makes them unusable.  Really a shame, as at a conceptual level the controls are good, but your bugs are many.
0
Miroslav Nedyalkov
Telerik team
answered on 22 Dec 2009, 12:50 PM
Hello John,

 Could you please share with us which version do you use. I'm afraid that there is a problem with the design-time of the SP1 version of the Docking control that should be fixed with the next internal build version.

Kind regards,
Miroslav Nedyalkov
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
0
Terry
Top achievements
Rank 1
answered on 11 Jan 2010, 05:24 PM
I'm having the same problem with Q3 2009 SP 1.  The only reason I need Blend is because I want to style the docking tabs in an app I'm creating in VS2010 and that is the method recommended in other posts.

Has this been fixed in the latest internal build as indicated in the above post?

Thanks,

Terry
0
Miroslav Nedyalkov
Telerik team
answered on 12 Jan 2010, 11:49 AM
Hi Terry,

 It should be fixes in the latests internal build.

Greetings,
Miroslav Nedyalkov
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Watch a video on how to optimize your support resource searches and check out more tips on the blogs.
