Auto-generated Silverlight DataForm versus Telerik RadDataForm using RIA with RadDomainDataSource

[Robert]

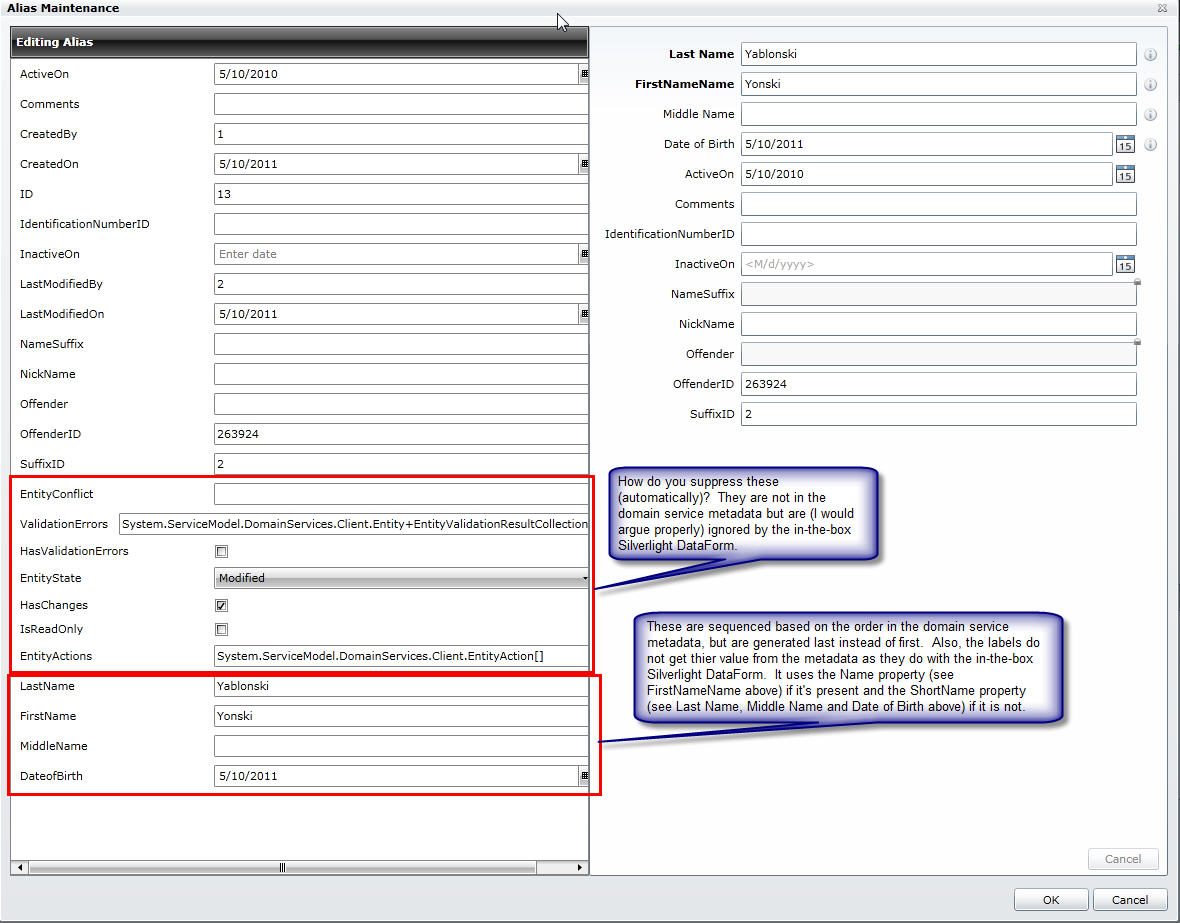

Please see the attached image which demonstrates some radical differences in the fields displayed in the autogeneration of a Silverlight DataForm (right side of the image) versus that of a RadDataForm (left side of the image) with the CurrentItem set to the same RadDomainDataSource over the same domain data service and metadata.

The main questions are:

• How do you suppress the entity data that is not part of the metadata from being auto-generated, and,
• Why doesn't the Telerik RadDataForm handle the metadata in the same way as the Silverlight DataForm?

Thank you,

Robert Burger

[Pavel Pavlov]

Hi Robert,

Can you please  check the version of the Telerik dlls you are using . I believe we have addressed such problems with our latest versions.

In case you use older ones - please upgrade to to the latest ( e.g. the latest internal build) .

In case this does not help , please let me know so I can arrange a fast fix  for you .

Regards,
Pavel Pavlov
the Telerik team

[Sriman]

I have the same issue. Also what is the equivalent for toolkit:DataField.IsFieldGroup = true". What version of dll has the fix







<telerik:RadDataForm.EditTemplate>









<DataTemplate>









<Grid>









<Grid.RowDefinitions>









<RowDefinition







Height="auto" />









<RowDefinition







Height="auto" />









<RowDefinition







Height="auto" />









<RowDefinition







Height="auto" />









</Grid.RowDefinitions>









<StackPanel







x:Name="rootPanel"







Grid.Row="0"







Orientation="Vertical"







toolkit:DataField.IsFieldGroup="True"







d:LayoutOverrides="Width, Height"







Height="0">









<toolkit:DataField







LabelPosition="Left"







Label="Dummy Field:">









<TextBox







Text="{Binding HasChanges, Mode=TwoWay}" />









</toolkit:DataField>









</StackPanel>









<StackPanel







x:Name="PropertiesPanel"







Grid.Row="1">









<TextBlock







Text="Properties"







FontSize="13.333"







FontWeight="Bold" />









</StackPanel>









<StackPanel







x:Name="TechCharPanel"







Grid.Row="2">









<TextBlock







Text="Technical Characteristics"







FontSize="13.333"







FontWeight="Bold" />









</StackPanel>









<StackPanel







x:Name="NonTechCharPanel"







Grid.Row="3">









<TextBlock







Text="Non-Technical Characteristics"







FontSize="13.333"







FontWeight="Bold" />









</StackPanel>









</Grid>









</DataTemplate>









</telerik:RadDataForm.EditTemplate>









</telerik:RadDataForm>



[Vlad]

Hi,

 Our latest official version is Q2 2011 SP1.

Best wishes,
Vlad
the Telerik team
