[Solved] Appointment get disappears while dropping it outside the ScheduleView

7 Answers 167 Views

ScheduleView

This is a migrated thread and some comments may be shown as answers.

This question is locked. New answers and comments are not allowed.

Pushpendra asked on 18 Mar 2013, 09:32 AM


Hi

I have placed ScheduleView in one RadPane and some other controls in another RadPane. Now I am able to drag and drop the Appointment to another RadPane or even on the border of the RadPane. After dropping the Appointment it removes from the ScheduleView but appears nowhere in the screen.
I have also created CustomDragDropBehaviour but while dropping the Appointment outside the ScheduleView the Drop event is not firing. Please let me know how I can restrict to drop the Appointment outside the ScheduleView.

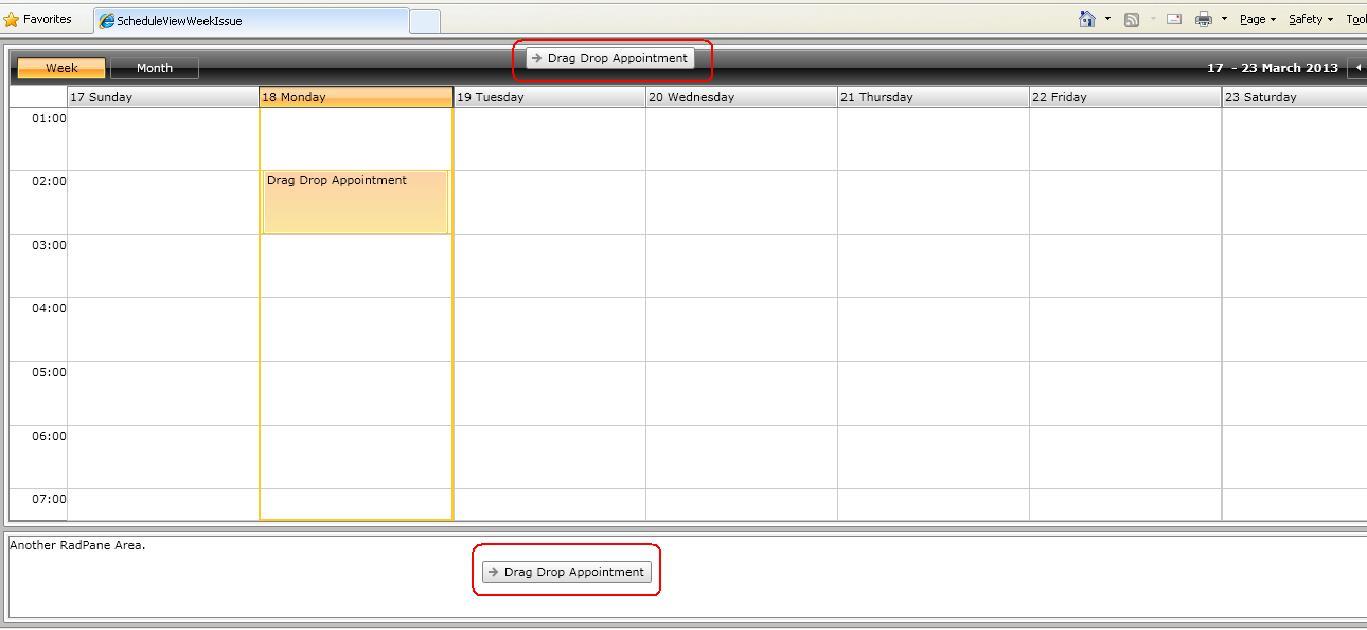

Please check the attached code and image for reference.

<Grid x:Name="LayoutRoot" Background="White">

<telerik:RadDocking AllowUnsafeMode="True">

<telerik:RadDocking.DocumentHost>

<telerik:RadSplitContainer Orientation="Vertical">

<telerik:RadPaneGroup>

<telerik:RadPane Visibility="Collapsed" IsPinned="True" CanUserPin="True" CanFloat="False" CanUserClose="False" CanDockInDocumentHost="False">

<scheduleView:RadScheduleView AppointmentsSource="{Binding Appointments,Mode=OneWay}">

<scheduleView:RadScheduleView.ViewDefinitions>

<scheduleView:WeekViewDefinition MinorTickLength="1h" MajorTickLength="1h" TimerulerMajorTickStringFormat="{}{0:HH:mm}" TimerulerMinorTickStringFormat="{}{0:HH:mm}"

DayStartTime="{Binding ElementName=LayoutRoot, Path=DataContext.DayStartTime}" DayEndTime="{Binding ElementName=LayoutRoot, Path=DataContext.DayEndTime}">

</scheduleView:WeekViewDefinition>

<scheduleView:MonthViewDefinition />

</scheduleView:RadScheduleView.ViewDefinitions>

</scheduleView:RadScheduleView>

</telerik:RadPane>

</telerik:RadPaneGroup>

<telerik:RadPaneGroup>

<telerik:RadPane Visibility="Collapsed" IsPinned="True" CanUserPin="True" CanFloat="False" CanUserClose="False" CanDockInDocumentHost="False">

<TextBlock Text="Another RadPane Area." />

</telerik:RadPane>

</telerik:RadPaneGroup>

</telerik:RadSplitContainer>

</telerik:RadDocking.DocumentHost>

</telerik:RadDocking>

</Grid>

Thanks,
Pushpendra

7 Answers, 1 is accepted

answered on 19 Apr 2013, 06:04 AM




I have this same problem with the trial version of RadControls for WPF Q1 2013. I have exactly the same situation: RadScheduleView inside a RadDocking panel. I can drag&drop appointments to any place outside the RadScheduleView area and they disappear. I tried to set the AllowDrop properties of controls to false and it helped a little but didn't fix the whole case. I still can drop appointments to some wrong places.

By the way: that 'Format Code Block' button doesn't work for me. It doesn't do anything (Firefox 20.0.1). However, here is a code sample.

<telerik:RadDocking x:Name="scheduleDocking">
                <telerik:RadDocking.DocumentHost>
                    <telerik:RadSplitContainer>
                        <telerik:RadPaneGroup x:Name="scheduleGroup">
                            <telerik:RadPane x:Name="schedulePane" Header="Schedule" AllowDrop="False">
                                <src:ScheduleControl x:Name="scheduleControl"/>
                            </telerik:RadPane>
                        </telerik:RadPaneGroup>
                    </telerik:RadSplitContainer>
                </telerik:RadDocking.DocumentHost>
            </telerik:RadDocking>

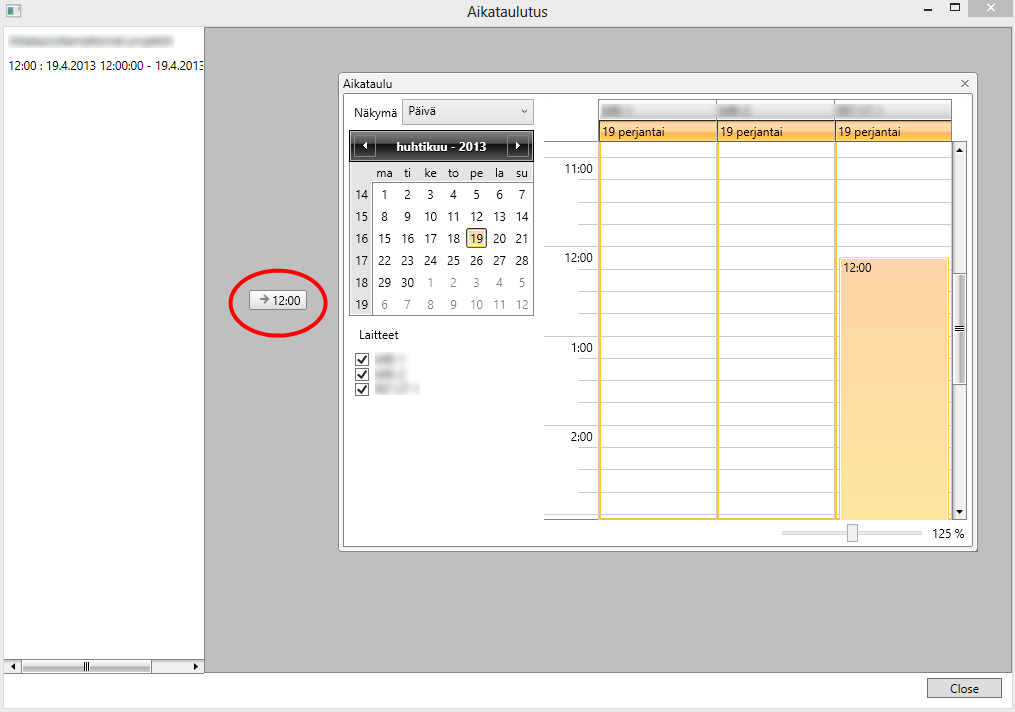

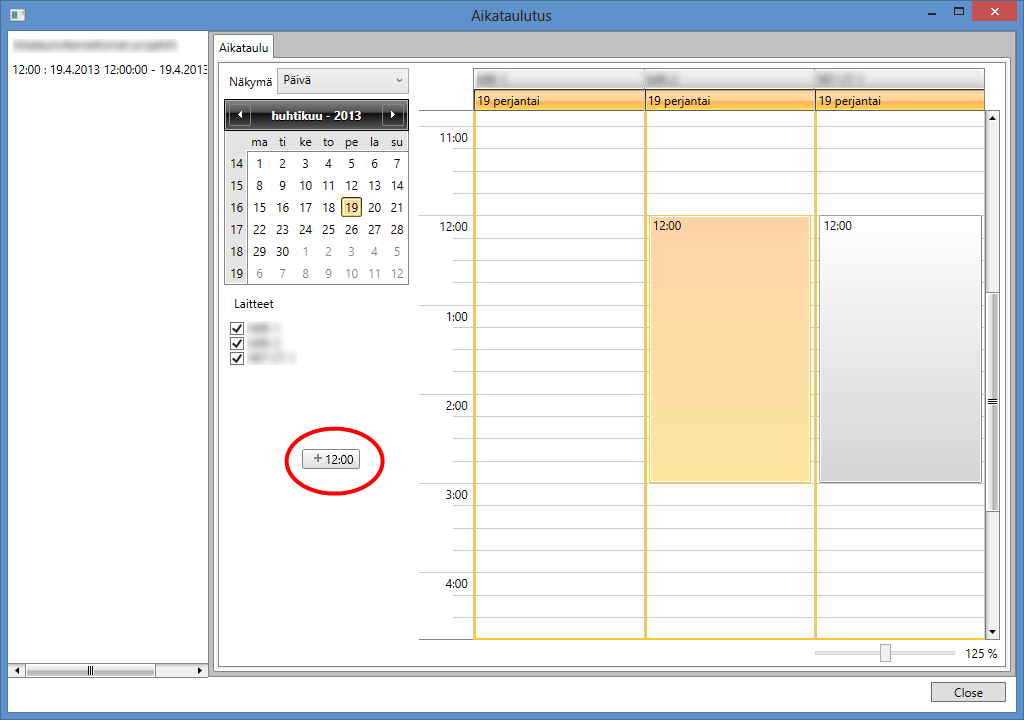

Inside the ScheduleControl I have the RadScheduleView and some other stuff (see the pictures).

Then, another problem. I'm not sure if has anything to do with this drag&drop problem, but I put it here now.

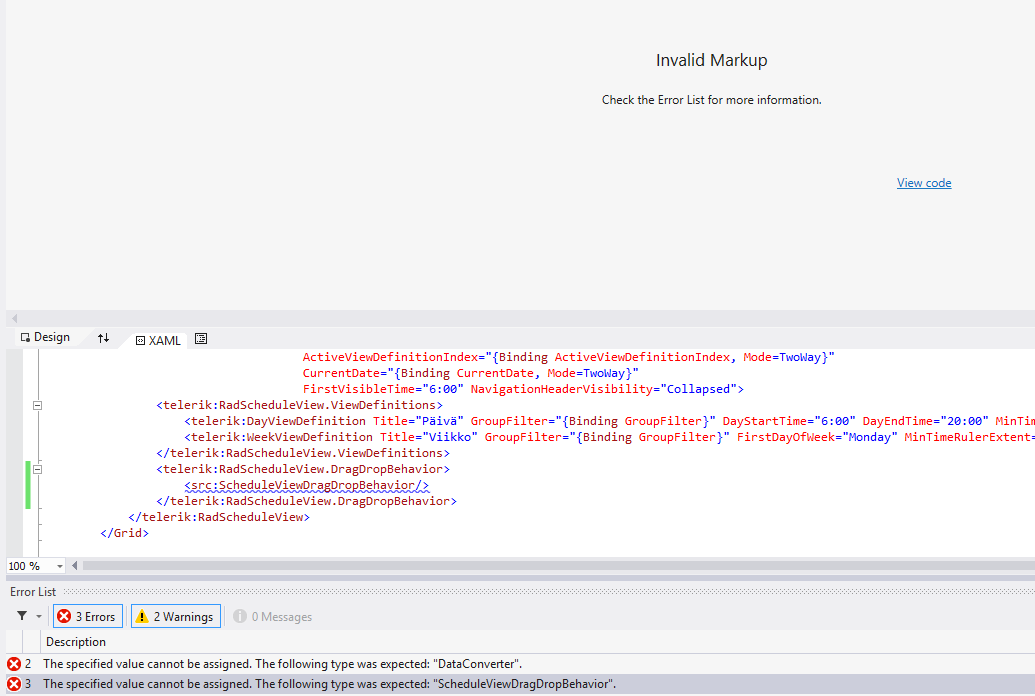

I have implemented a custom DataConverter (for RadListBox) and ScheduleViewDragDropBehavior (for RadScheduleView) exactly the same way than shown in the demo of ScheduleView (Drag and Drop example). Visual Studio 2012 gives errors "The specified value cannot be assigned. The following type was expected: "DataConverter"." and "The specified value cannot be assigned. The following type was expected: "ScheduleViewDragDropBehavior"." Despite the errors, the application can be run and drag&droping works. The problem is that the errors break the code designer in Visual Studio.

EDIT: Ok, this latter Visual Studio problem seems to get fixed when I added a reference to Telerik.Windows.Controls.Data assembly to my project. The drag&drop problem still exist.

Regards,
Petteri

answered on 19 Apr 2013, 01:01 PM

Hello,
I'm just migrating to VS2012 and on first build everything was OK. But once I change something in the XAML of the scheduleview control, I get the same kind of errors:
Erreur 1 La valeur spécifiée ne peut pas être attribuée. Le type suivant était attendu : "ScheduleViewDragDropBehavior".
Erreur 2 La valeur spécifiée ne peut pas être attribuée. Le type suivant était attendu : "AppointmentSelectionBehavior".
Erreur 3 La valeur spécifiée ne peut pas être attribuée. Le type suivant était attendu : "ScheduleViewDataTemplateSelector".
Erreur 4 La valeur spécifiée ne peut pas être attribuée. Le type suivant était attendu : "ScheduleViewStyleSelector"
I remove my modifications, but VS2012 still display the errors. (The excecution still works fine)

I'm working with Q1 2012 SP1. And I never that error on VS2010. Is the issue to that Problem?

best regards,
Alex.
