Exporting Data from a DataGridView Control to an Excel File

Updated on Oct 28, 2026

Export Windows Forms grid data and column headers to an XLSX workbook with RadSpreadProcessing.

Environment

VersionProductAuthor
2025.4.1104RadSpreadProcessingDesislava Yordanova

Description

Export the data from a WinForms DataGridView control to an Excel file in XLSX format, including header information. You can achieve this with Telerik Document Processing RadSpreadProcessing in a Visual Studio C# Windows Forms application.

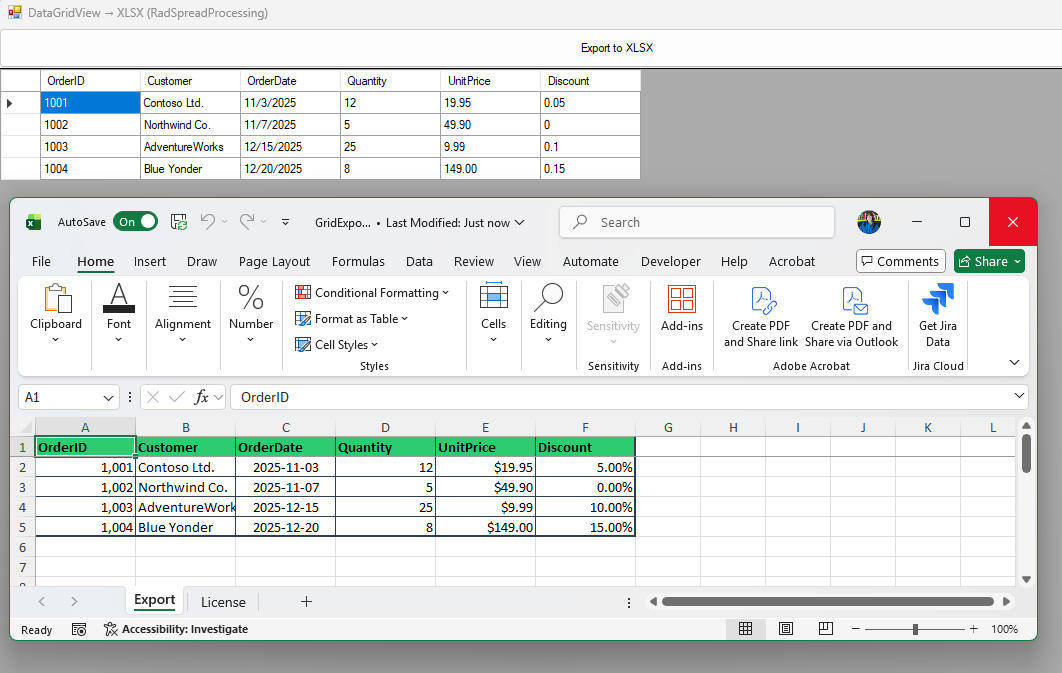

Example of DataGridView data exported to an Excel workbook.

Solution

Use Telerik Document Processing RadSpreadProcessing to create an Excel file programmatically. Follow these steps:

  1. Create a Windows Forms application and add a DataGridView control to display your data.
  2. Add a button to trigger the export functionality.
  3. Use RadSpreadProcessing to export data from the DataGridView to an Excel file.

The example is divided into consecutive parts of the same Form1 class. Combine the C# blocks in order. Individual blocks are not standalone examples. Navigate to the part you need:

Initializing the Form

The class fields and constructor create the grid and connect the export button to its handler:

csharp
    public partial class Form1 : Form
    {

        private DataGridView _grid;
        private System.Windows.Forms.Button _btnExport;

        public Form1()
        {
            InitializeComponent();


            this.Text = "DataGridView → XLSX (RadSpreadProcessing)";
            this.Width = 900;
            this.Height = 500;

            _grid = new DataGridView
            {
                Dock = DockStyle.Fill,
                AutoGenerateColumns = true,
                AllowUserToAddRows = false,
                ReadOnly = true
            };

            _btnExport = new System.Windows.Forms.Button
            {
                Text = "Export to XLSX",
                Dock = DockStyle.Top,
                Height = 40
            };
            _btnExport.Click += OnExportClick;

            this.Controls.Add(_grid);
            this.Controls.Add(_btnExport);

            LoadSampleData();

        }

Loading Sample Data

Continue the Form1 class with the method that populates the grid:

csharp
        private void LoadSampleData()
        {
            // Create a simple DataTable with mixed types
            var table = new DataTable("Orders");
            table.Columns.Add("OrderID", typeof(int));
            table.Columns.Add("Customer", typeof(string));
            table.Columns.Add("OrderDate", typeof(DateTime));
            table.Columns.Add("Quantity", typeof(int));
            table.Columns.Add("UnitPrice", typeof(decimal));
            table.Columns.Add("Discount", typeof(double));   // as percent (0.0 .. 1.0)

            // Sample rows
            table.Rows.Add(1001, "Contoso Ltd.", new DateTime(2025, 11, 3), 12, 19.95m, 0.05);
            table.Rows.Add(1002, "Northwind Co.", new DateTime(2025, 11, 7), 5, 49.90m, 0.00);
            table.Rows.Add(1003, "AdventureWorks", new DateTime(2025, 12, 15), 25, 9.99m, 0.10);
            table.Rows.Add(1004, "Blue Yonder", new DateTime(2025, 12, 20), 8, 149.00m, 0.15);

            _grid.DataSource = table;
        }

Handling the Export Button

Add the click handler to prompt for an output path, call the export method, and offer to open the result:

csharp
        private void OnExportClick(object sender, EventArgs e)
        {
            if (_grid.DataSource == null)
            {
                MessageBox.Show("No data to export.");
                return;
            }

            using (var sfd = new SaveFileDialog
            {
                Filter = "Excel Workbook (*.xlsx)|*.xlsx",
                FileName = "GridExport.xlsx",
                Title = "Save XLSX"
            })
            {
                if (sfd.ShowDialog(this) != DialogResult.OK)
                    return;

                try
                {
                    ExportGridToXlsx(sfd.FileName);
                    if (MessageBox.Show("Export complete. Open file?", "Export", MessageBoxButtons.YesNo, MessageBoxIcon.Information) == DialogResult.Yes)
                    {
                        System.Diagnostics.Process.Start(new System.Diagnostics.ProcessStartInfo
                        {
                            FileName = sfd.FileName,
                            UseShellExecute = true
                        });
                    }
                }
                catch (Exception ex)
                {
                    MessageBox.Show($"Export failed:\n{ex.Message}", "Error", MessageBoxButtons.OK, MessageBoxIcon.Error);
                }
            }
        }

Creating the Workbook and Headers

Begin ExportGridToXlsx by creating the workbook, setting up the page, and writing the column headers:

csharp
        private void ExportGridToXlsx(string filePath)
        {
            // Build a workbook in memory
            var workbook = new Workbook();

            var worksheet = workbook.Worksheets.Add();
            worksheet.Name = "Export";

            // Optional: page setup and margins if you later print or export to PDF
            var ps = worksheet.WorksheetPageSetup;
            ps.PageOrientation = PageOrientation.Portrait;
            ps.PaperType = PaperTypes.A4;
            ps.Margins = new PageMargins(20, 20, 20, 20); // points

            // Write headers (DataGridView columns)
            int colCount = _grid.Columns.Count;
            int rowCount = _grid.Rows.Count;

            // Set some column widths and write header text bold
            for (int c = 0; c < colCount; c++)
            {
                var headerText = _grid.Columns[c].HeaderText;
                var headerCell = worksheet.Cells[0, c];
                headerCell.SetValue(headerText);

                // Bold & fill color for header:
                var headerSel = worksheet.Cells[0, c];
                headerSel.SetIsBold(true);

                PatternFill solidPatternFill = new PatternFill(PatternType.Solid, System.Windows.Media.Color.FromArgb(255, 46, 204, 113), Colors.Transparent);
                headerSel.SetFill(solidPatternFill);
                headerSel.SetVerticalAlignment(RadVerticalAlignment.Center);

                // Auto width guess: you can adjust per your needs
                worksheet.Columns[c].SetWidth(new ColumnWidth(100, true)); // 100 pixels approx.
            }

Writing Data Rows

Continue inside ExportGridToXlsx to write the grid values and apply formats based on their types:

csharp
            // Write data rows
            for (int r = 0; r < rowCount; r++)
            {
                var gridRow = _grid.Rows[r];
                for (int c = 0; c < colCount; c++)
                {
                    var cell = worksheet.Cells[r + 1, c]; // +1 because row 0 is header
                    object value = gridRow.Cells[c].Value;

                    // Set value by type for proper Excel typing & formatting later
                    if (value is null || value == DBNull.Value)
                    {
                        cell.SetValue(string.Empty);
                        continue;
                    }

                    var type = value.GetType();

                    if (type == typeof(int))
                    {
                        cell.SetValue(Convert.ToInt32(value));
                        // Example: integer with thousands sep → "#,##0"
                        cell.SetFormat(new CellValueFormat("#,##0"));
                        cell.SetHorizontalAlignment(RadHorizontalAlignment.Right);
                    }
                    else if (type == typeof(decimal) || type == typeof(double) || type == typeof(float))
                    {
                        double d = Convert.ToDouble(value, CultureInfo.InvariantCulture);

                        // Detect if the column name looks like price/amount to apply currency-ish format,
                        // or if Discount/Percent → percentage format. Customize as needed:
                        string header = _grid.Columns[c].HeaderText?.ToLowerInvariant() ?? string.Empty;

                        if (header.Contains("price") || header.Contains("amount") || header.Contains("unit"))
                        {
                            cell.SetValue(d);
                            cell.SetFormat(new CellValueFormat("$#,##0.00")); // set currency symbol or use custom
                        }
                        else if (header.Contains("discount") || header.Contains("percent"))
                        {
                            cell.SetValue(d); // e.g., 0.15
                            cell.SetFormat(new CellValueFormat("0.00%")); // renders as 15.00%
                        }
                        else
                        {
                            cell.SetValue(d);
                            cell.SetFormat(new CellValueFormat("#,##0.00"));
                        }

                        cell.SetHorizontalAlignment(RadHorizontalAlignment.Right);
                    }
                    else if (type == typeof(DateTime))
                    {
                        cell.SetValue((DateTime)value);
                        // Excel-style date format (adjust to your locale)
                        cell.SetFormat(new CellValueFormat("yyyy-mm-dd")); // ISO-like
                        cell.SetHorizontalAlignment(RadHorizontalAlignment.Center);
                    }
                    else
                    {
                        // Treat as text
                        cell.SetValue(Convert.ToString(value, CultureInfo.CurrentCulture));
                    }
                }
            }

Saving the Workbook

Finish ExportGridToXlsx by adding borders, freezing the header row, and saving the XLSX file. This block also closes the Form1 class:

csharp
            // Add table borders (optional): apply thin border to used range
            var used = worksheet.UsedCellRange;
            if (used != null)
            {
                ThemableColor darkBlue = new ThemableColor(System.Windows.Media.Color.FromArgb(255, 44, 62, 80));
                CellBorders darkBlueBorders = new CellBorders(
                                new CellBorder(CellBorderStyle.Medium, darkBlue),   // Left border
                                new CellBorder(CellBorderStyle.Medium, darkBlue),   // Top border
                                new CellBorder(CellBorderStyle.Medium, darkBlue),   // Right border
                                new CellBorder(CellBorderStyle.Medium, darkBlue),   // Bottom border
                                new CellBorder(CellBorderStyle.Thin, darkBlue),       // Inside horizontal border
                                new CellBorder(CellBorderStyle.Thin, darkBlue),       // Inside vertical border
                                new CellBorder(CellBorderStyle.None, darkBlue),     // Diagonal up border
                                new CellBorder(CellBorderStyle.None, darkBlue));    // Diagonal down border

                worksheet.Cells[used.FromIndex.RowIndex, used.FromIndex.ColumnIndex, used.ToIndex.RowIndex, used.ToIndex.ColumnIndex]
                         .SetBorders(darkBlueBorders);
            }

            // Optional: freeze header row
            worksheet.ViewState.FreezePanes(1, 0);

            // Save to XLSX
            var xlsx = new XlsxFormatProvider();
            using (var fs = new FileStream(filePath, FileMode.Create, FileAccess.Write))
            {
                xlsx.Export(workbook, fs, TimeSpan.FromSeconds(10));
            }
        }

    }
