Custom Azure Maps Provider for the Azure Maps Services

Updated on Mar 26, 2026

The RadMap control does not provide an out-of-the-box provider for the Azure Maps services. This article will showcase how to implement a custom provider that works with these services. To do so, derive from the TiledProvider class and provide a custom TiledMapSource that will request tiled data from the Azure Maps services.

Creating a custom TiledProvider class

C#

public class CustomAzureMapProvider : TiledProvider, ICloneable
{
	/// <summary>
	/// Initializes a new instance of the MyMapProvider class.
	/// </summary>
	public CustomAzureMapProvider()
			: base()
	{
		CustomAzureMapSource source = new CustomAzureMapSource();
		this.MapSources.Add(source.UniqueId, source);
		this.SetMapSource(source.UniqueId);
	}

	/// <summary>
	/// Returns the SpatialReference for the map provider.
	/// </summary>
	public override ISpatialReference SpatialReference
	{
		get
		{
			return new MercatorProjection();
		}
	}

	public object Clone()
	{
		var newProvider = new CustomAzureMapProvider();

		return newProvider;
	}
}

public class CustomAzureMapSource : TiledMapSource
{
	internal const string UrlFormat = "https://atlas.microsoft.com/map/tile?subscription-key=<ApiKey>&api-version=2024-04-01&tilesetId=microsoft.base.road&zoom={zoom}&x={x}&y= {y}";

	/// <summary>
	/// Initializes a new instance of the MyMapSource class.
	/// </summary>
	public CustomAzureMapSource()
		  : base(1, 20, 256, 256)
	{
	}

	/// <summary>
	/// Initialize provider.
	/// </summary>
	public override void Initialize()
	{
		this.RaiseInitializeCompleted();
	}

	/// <summary>
	/// Gets the image URI.
	/// </summary>
	/// <param name="tileLevel">Tile level.</param>
	/// <param name="tilePositionX">Tile X.</param>
	/// <param name="tilePositionY">Tile Y.</param>
	/// <returns>URI of image.</returns>
	protected override Uri GetTile(int tileLevel, int tilePositionX, int tilePositionY)
	{
		int zoomLevel = ConvertTileToZoomLevel(tileLevel);
		string url = UrlFormat.Replace("{x}", tilePositionX.ToString());
		url = url.Replace("{y}", tilePositionY.ToString());
		url = url.Replace("<ApiKey>", MapHelper.AzureKey);
		url = url.Replace("{zoom}", zoomLevel.ToString());
		return new Uri(url);
	}
}

internal static class MapHelper
{
	public static string AzureKey = "Your Subscription Key";
}

Setting the CustomAzureMapProvider to the Provider property of RadMap

XAML

<telerik:RadMap x:Name="radMap">
	<telerik:RadMap.Provider>
		<local:CustomAzureMapProvider/>
	</telerik:RadMap.Provider>
</telerik:RadMap>

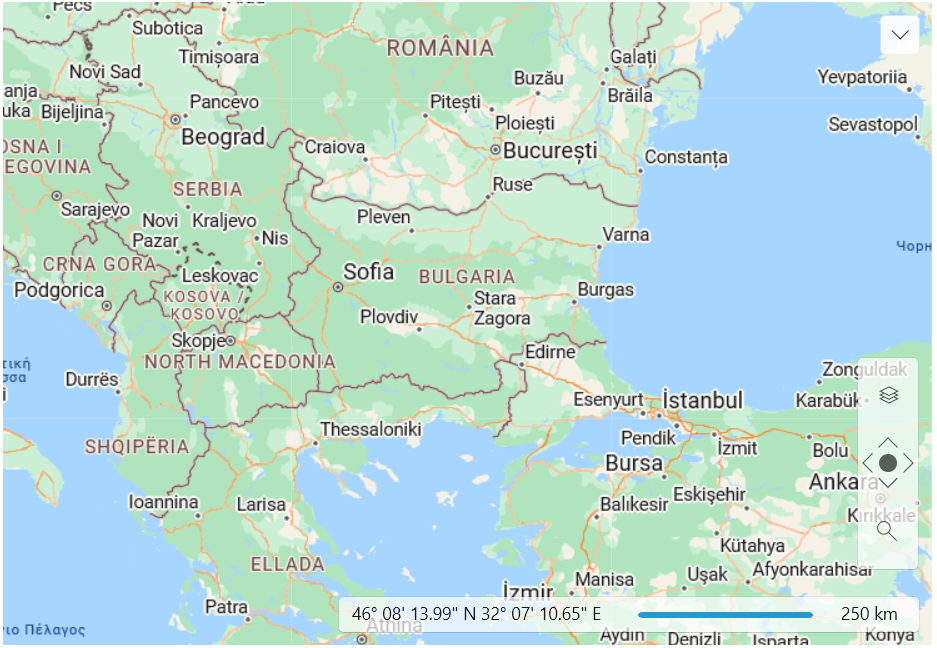

RadMap with custom provider for the Azure Maps services
