ZoomScrollSettingsY setting in ChartArea makes the index on Y-axis displayed twice

3 posts, 0 answers
  1. Sheetal
    Sheetal avatar
    6 posts
    Member since:
    Oct 2009

    Posted 29 Jun 2010 Link to this post

    I have created a Bar graph with two series. See below code. I am alos using the Zoom feature. I have set the ChartArea to

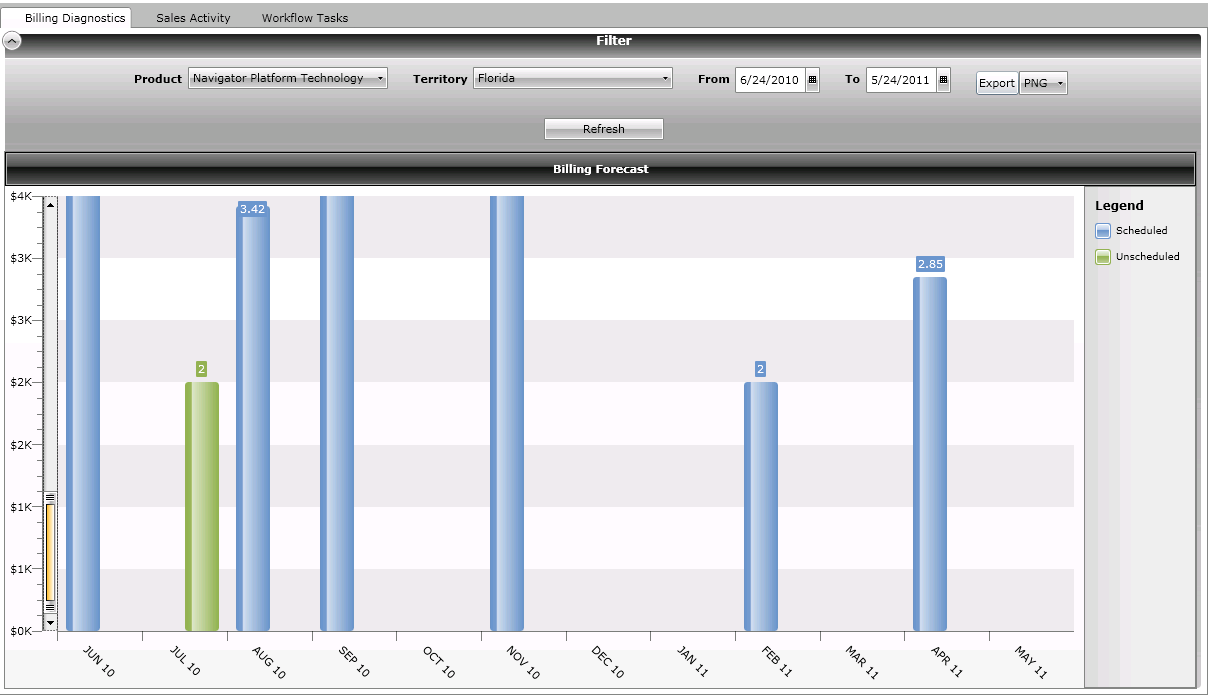

    ZoomScrollSettingsY and the ScrollMode to ScrollAndZoom. Under certain conditions when zooming in, the index on the Y-axis is repeated twice. Please see attached image. How can this be prevented?

    private





    void BindDataToChart()

    {

    RadChart1.DefaultView.ChartArea.DataSeries.Clear();



    DataSeries seriesCategory1 = new DataSeries();

    DataSeries seriesCategory2 = new DataSeries();

    int startIndx = 0;

    int endIndx = _ForecastViewModel.ForecastSummary[0].Count();

    int i = 0;

    int nIndx = 0;

    string category = "";

    for (nIndx = startIndx; nIndx < endIndx; nIndx++)

    {





    ForecastSummaryData data = (ForecastSummaryData)(_ForecastViewModel.ForecastSummary[0][nIndx]);

    DataPoint category1dataPoint = new DataPoint();

    DataPoint category2dataPoint = new DataPoint();

    category = data.category;



    string year = "";



    if (category == "1") {





    category1dataPoint.LegendLabel =

    "1";







    category1dataPoint.XValue =

    double.Parse(data.month);
    if (data.schedule_amount > 0)
    category1dataPoint.YValue = (
    double)(data.amount / 1000);
    category1dataPoint.XCategory =
    Convert.ToString(data.monthname.TrimEnd().Substring(0, 3) + " " + year);







    category1dataPoint.Tooltip =

    String.Format("{0} contracts/{1:C}", data.count, (double)(data.amount));





     seriesCategory1.Add(category1dataPoint);

    }

    else {





    category2dataPoint.LegendLabel =

    "2";







    category2dataPoint.XValue =

    double.Parse(data.month);





    if (data.schedule_amount > 0)
    category2dataPoint.YValue = (
    double)(data.amount / 1000);







    category2dataPoint.XCategory =

    Convert.ToString(data.monthname.TrimEnd().Substring(0, 3) + " " + year);







    category2dataPoint.Tooltip =

    String.Format("{0} contracts/{1:C}", data.count, (double)(data.amount));







    seriesCategory2.Add(category2dataPoint);

    }

    }







    // Set the bar chart properties



    RadChart1.DefaultView.ChartArea.DataSeries.Clear();

    RadChart1.DefaultView.ChartArea.LabelFormatBehavior =

    LabelFormatBehavior.HumanReadable;







    RadChart1.DefaultView.ChartArea.AxisY.DefaultLabelFormat = (

    "$0K");
    RadChart1.DefaultView.ChartArea.AxisX.LayoutMode =
    AxisLayoutMode.Between;
    RadChart1.DefaultView.ChartArea.AxisX.Step = 2;







    RadChart1.DefaultView.ChartArea.AxisX.LabelRotationAngle = 45;





    RadChart1.DefaultView.ChartLegend.HorizontalAlignment =

    HorizontalAlignment.Right;





    RadChart1.DefaultView.ChartLegend.FontSize = 10;

    seriesCategory1.LegendLabel =

    "Scheduled";
    seriesCategory1.Definition =
    new BarSeriesDefinition();







    seriesCategory2.LegendLabel =

    "Unscheduled";







    seriesCategory2.Definition =





    new BarSeriesDefinition();
    byte[] fillColor1 = { 255, 106, 148, 200 };
    byte[] strokeColor1 = { 255, 106, 148, 200 };





    SetBarLayout((

    BarSeriesDefinition)seriesCategory1.Definition,





    fillColor1,

    strokeColor1,

    4d,

    3);



    byte[] fillColor2 = { 255, 145, 178, 80 };
    byte[] strokeColor2 = { 255, 145, 178, 80 };
    SetBarLayout((
    BarSeriesDefinition)seriesCategory2.Definition, fillColor2,





    strokeColor2,

    4d,

    3);



    if (endIndx == 0) {







    RadChart1.ItemsSource = null;







    RadChart1.DefaultView.ChartArea.IsNoDataMessageEnabled =





    false;



    }



    else



    {

    RadChart1.DefaultView.ChartArea.ZoomScrollSettingsY.ScrollMode =

    ScrollMode.ScrollAndZoom; RadChart1.DefaultView.ChartArea.DataSeries.Add(seriesCategory1);





    RadChart1.DefaultView.ChartArea.DataSeries.Add(seriesCategory2);

    RadChart1.DefaultView.ChartArea.EnableAnimations =

    false;







    }



    this.Cursor = Cursors.Arrow;





    }



    )

  2. Ves
    Admin
    Ves avatar
    2926 posts

    Posted 02 Jul 2010 Link to this post

    Hello Sheetal,

    This is actually caused by the AxisY.DefaultLabelFormat setting. The format string you have used ("$0K") will not show any decimals. At the same time the automatic axis range algorithm has detected, that there is enough room to show the values like this: 0, 0.5, 1, 1.5, etc. So the first "$1K" is actually for 0.5, while the second is the correct one. You can set the DefaultLabelFormat like this: "$0.#K", so that the decimals are visible.

    Alternatively, you can set the AxisY.AutoRange property to false and call the AddRange method supplying the desired MinValue, MaxValue and Step as parameters.

    Best regards,
    Ves
    the Telerik team
    Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items
  3. Sheetal
    Sheetal avatar
    6 posts
    Member since:
    Oct 2009

    Posted 06 Jul 2010 Link to this post

    Thank you. Changing the DefaultLabelFormat to "$0.0k" worked.

    Sheetal.
