    I have RadPageView with a lot of items, which are organized by categories.


    I'd like that when I click on a category title (PageViewItemType.GroupHeaderItem?) I display the pages which are related to this GroupHeaderItem.



    Organisation (GroupHeaderItem)

     - Page1

     - Page 2


    Administration (GroupHeaderItem)

     - Admin 1

     - Admin 2


    I don't see how to accomplish that with RadPageView.

    I chose RadPageView over RadTreeView because the management of the forms that are shown are managed perfectly with RadPageView.


    Thank you for your help.




  2. Dess | Tech Support Engineer, Sr.
    Dess | Tech Support Engineer, Sr.  avatar
    4170 posts

    Posted 12 Mar 2018 Link to this post

    Hello, Laurence,

    Thank you for writing.
    Your question has already been answered in the other thread you have opened on the same topic. However, I am posting the reply here as well in order the community to benefit from it.

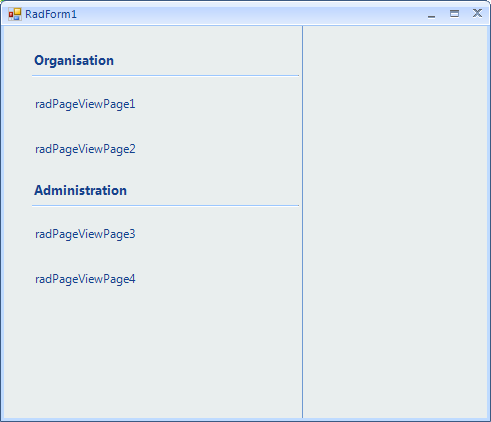

    RadPageView offers PageViewMode.Backstage which allows you grouping pages as below:

    You can handle the MouseDown event and detect whether you click a RadPageViewStripGroupItem. Then, you can perform the desired action, select a specific page etc.
    public RadForm1()
    private void radPageView1_MouseDown(object sender, MouseEventArgs e)
        RadPageViewStripGroupItem el = this.radPageView1.ElementTree.GetElementAtPoint(e.Location) as RadPageViewStripGroupItem;
        if (el!=null)

    I hope this information helps. Should you have further questions I would be glad to help.
