I am following the guide to create a PDF (First Steps | Telerik Document Processing)

I installed the UI for ASP.NET Core. I could find the three DLLs referenced in the example but the documentation states: for .NET Core/.NET 5+ project the additional DLLs are required:

• Telerik.Documents.Flow.FormatProviders.Docx.dll
• Telerik.Documents.Flow.FormatProviders.Pdf.dll

Where are these dll's located?

I would like to add a superscript to text I am adding to a block.  I tried adding the text to a block, and then a TextFragment to the block, but I can't seem to move the text up as a superscript.

block.InsertText(text ?? string.Empty);
var frag = new TextFragment(superscript);
frag.FontSize = fontSize - 2;
block.Insert(frag);

I tried using frag.TextRise but it doesn't seem to affect the vertical offset of the fragment no matter what values I use. I also tried using frag.Position, but that doesn't affect it either.   Clearly I am missing something.  Perhaps I should use another approach?

Thanks in advance,

Dudley Chapman

I am starting with the Telerik Document processing libraries.  I have a simple excel file that I would like to import into a list to work with in my program.

I have an imported workbook and worksheet that seems to work.  When I try to get the data from a test cell however:

string test;
test = sheet.Cells[0,0].GetValue().ToString();

instead of returning the value I put in the cell I get:

"Telerik.Windows.Documents.Spreadsheet.Model.RangePropertyValue`1[Telerik.Windows.Documents.Spreadsheet.Model.ICellValue]"

I have been reading the documentation and can't figure out what I am doing wrong.

(for the record:

test = sheet.Cells[0,0].GetValue().Value.ToString(); returns

"Telerik.Windows.Documents.Spreadsheet.Model.NumberCellValue"

so it isn't helpful either.)

Hi all,

Were using Telerik libraries for .Net Framework are trying to import an existing docx file and then export it as a PDF. While doing this we noticed that after importing the docx file using DocxFormatProvider the existing table on the docx file selects the wrong theme.

We want to use 'Grid Table 4 - Accent 5' but after the import, the table style gets converted to 'Grid Table 4 - Accent 1'. We can't really specify a direct table style since the document that will be imported and converted to a PDF can have different table styles.

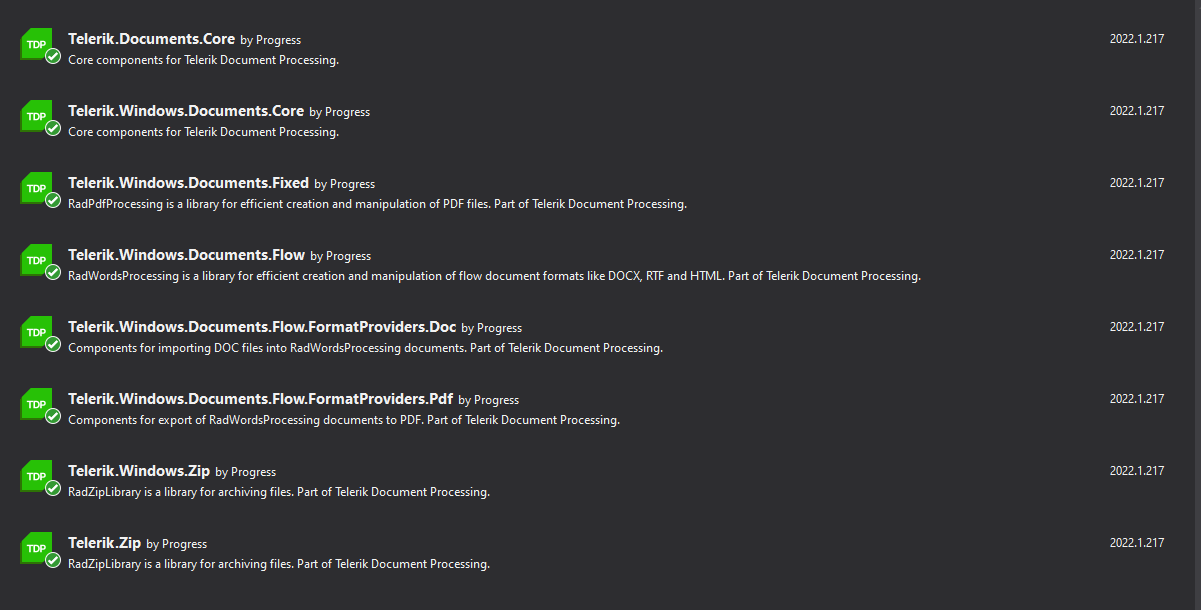

Is there a way to make this work with our current table style and other table styles? Here's the nuget packages we currently have installed to the project

And here's the code we are using

public static byte[] ConvertDocxToPdf(byte[] inputStream, Core.Models.Common.Document.Watermark watermark = null)
        {
            var docxFormatProvider = new DocxFormatProvider();
            var radFixedDocumentProvider = new Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider();

            var radFlowDocument = docxFormatProvider.Import(inputStream);
            var radFlowDocumentEditor = new RadFlowDocumentEditor(radFlowDocument);

            if (watermark != null)
            {
                var watermarkSettings = new TextWatermarkSettings()
                {
                    Text = watermark?.Text,
                    FontFamily = new System.Windows.Media.FontFamily(watermark.FontName),
                    Angle = watermark.Angle,
                    Height = watermark.FontHeight,
                    Width = watermark.FontWidth,
                    ForegroundColor = ToMediaColor(watermark.Color),
                    Opacity = watermark.Opacity
                };

                var textWatermark = new Telerik.Windows.Documents.Flow.Model.Watermarks.Watermark(watermarkSettings);
                for (int i = 0; i < radFlowDocumentEditor.Document.Sections.Count(); i++)
                {
                    var sectionToModify = radFlowDocumentEditor.Document.Sections[i];
                    var header = sectionToModify.Headers.Default;
                    var copyWatermark = textWatermark.Clone();

                    if (header == null)
                    {
                        header = sectionToModify.Headers.Add(HeaderFooterType.Default);
                    }

                    radFlowDocumentEditor.SetWatermark(copyWatermark, header);
                }
            }

            return radFixedDocumentProvider.Export(radFlowDocument);
        }

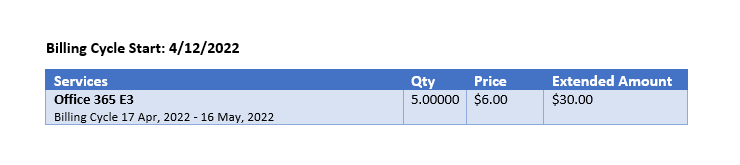

Also, here's the table we are importing

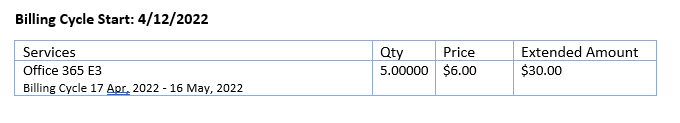

And after importing as a RadFlowDocument, if we do radFlowDocumentEditor.Export and then save the bytes as a docx file, this is the resulted table


Thanks in advance!

I am receiving an error when trying to convert a word doc to a PDF.

Here is the code:

var docxPRovider = new Telerik.Windows.Documents.Flow.FormatProviders.Docx.DocxFormatProvider();
var pdfProvider = new Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider();

var docBytes = File.ReadAllBytes(path);
var document = docxPRovider.Import(docBytes);

var testFile = Path.Combine(Environment.GetFolderPath(Environment.SpecialFolder.Desktop), "test.pdf");
var resultBytes = pdfProvider.Export(document);
File.WriteAllBytes(testFile, resultBytes);

Here is the error:

Could not load type 'System.Windows.Point' from assembly 'WindowsBase, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35'.
   at Telerik.Windows.Documents.Fixed.FormatProviders.Pdf.Export.PdfExportSettings..ctor()
   at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.Export.PdfExportSettings..ctor()
   at Telerik.Windows.Documents.Flow.FormatProviders.Pdf.PdfFormatProvider..ctor()

The line in bold is where the error occurs. I verified I have WindowsBase and System.Windows as references in my project.

Any help would be appreciated.

Hi everyone,

in my company we are using Telerik WordProcessing to handle some docx templates by replacing placeholder in there with values we took from DB. Everything works well when we use ReplaceText of RadFlowDocumentEditor except when we have a string that contains '\n' character.

Basically, for a string like "Ipsum\nDolor\nSit\nAmet" when we call ReplaceText on a particular placeholder, we got a situation like this

Ipsum

Dolor

Sit

Amet

which seems look ok, but unfortunately just the first row keeps the font style that placeholder has, the others instead doesn't and fallback to default style.

Any idea how to solve this?

Thank you very much for your attention

Hi

are there any experiences with using the DocumentProcessing libraries in a Linux / k8s cloud env?

A lot of .net libraries have issued with this because they have a system.drawing reference.

In the documentation, I didn't find anything about this.

I plan to u see the document processing library in a .net 6 / c# web API project running in a linux docker image .,

are there any pitfalls?

many thanks in advance

public static void AddLabel(TableRow quartersRow1, string Label, alignment.HorizontalAlignment LabelAlignment = alignment.HorizontalAlignment.Right,  double Labelpreferwidth = 0, int labelColSpan = 1, double LabelFontSize = 10, bool ShowBorder = false)
        {
            TableCell Labelcell = quartersRow1.Cells.AddTableCell();
            Labelcell.PreferredWidth = Labelpreferwidth;
            Labelcell.ColumnSpan = labelColSpan;
            if (ShowBorder) Labelcell.Borders = new TableCellBorders(border, border, border, border);
            Block Lblock = Labelcell.Blocks.AddBlock();
            Lblock.HorizontalAlignment = LabelAlignment;
            Lblock.TextProperties.FontSize = LabelFontSize;
            Lblock.InsertText(genericfontfamily, FontStyles.Normal, FontWeights.Bold, Label ?? "");

        }

We have recently migrated our application from .Net framework to .Net Core. Earlier the label we used to print in the PDF were bold, but now since we have migrated the application the bold font is showing as normal font.

The code mentioned above was giving the bold fonts for the labels in the PDF.

Can you please let me know what changes would be needed here for the desired output.
