Hi all,
This is a fragment from my code where I use tables in a RadFlowDocument to list some values. This all works fine for me, except one thing: between the text in a cell en the bottom border of that cell is some white space I can't get rid of. I want the bottom border of the cell to have the same distance to the text in the cell as between the text and the top border (border color set to blue for debugging..)
Tried playing with the row Height, cell padding, etc., but that doesn't change anything.
What am I missing?
var doc = new RadFlowDocument();
var tableStyle = new Style("TableStyle", StyleType.Table);
tableStyle.TableProperties.Borders.LocalValue = new TableBorders(new Border(1, BorderStyle.Single, new ThemableColor(Colors.Blue)));
tableStyle.TableProperties.Alignment.LocalValue = Alignment.Left;
tableStyle.TableCellProperties.VerticalAlignment.LocalValue = VerticalAlignment.Top;
tableStyle.TableCellProperties.Padding.LocalValue = new Padding(0, 0, 0, 0);
tableStyle.TableRowProperties.TableCellSpacing.LocalValue = 0;
tableStyle.CharacterProperties.FontSize.LocalValue = 12;
doc.StyleRepository.Add(tableStyle);
var section = new Section(doc)
{
PageMargins = new Padding(50, 50, 50, 50),
PageNumberingSettings =
{
StartingPageNumber = 1,
}
};
doc.Sections.Add(section);
var paragraph = new Paragraph(doc);
section.Blocks.Add(paragraph);
Table table = new Table(doc, 0, 2)// 0 rows, 2 columns.
{
LayoutType = TableLayoutType.FixedWidth,
PreferredWidth = new TableWidthUnit(700),
StyleId = "TableStyle"
};
// add 2 rows with 2 cells
TableRow row = table.Rows.AddTableRow();
TableCell cell = row.Cells.AddTableCell();
cell.PreferredWidth = new TableWidthUnit(100);
paragraph = cell.Blocks.AddParagraph();
paragraph.Inlines.AddRun($"Cell R1C1");
cell = row.Cells.AddTableCell();
cell.PreferredWidth = new TableWidthUnit(600);
paragraph = cell.Blocks.AddParagraph();
paragraph.Inlines.AddRun("Cell R1C2");
cell = row.Cells.AddTableCell();
cell.PreferredWidth = new TableWidthUnit(100);
paragraph = cell.Blocks.AddParagraph();
paragraph.Inlines.AddRun($"Cell R2C1");
cell = row.Cells.AddTableCell();
cell.PreferredWidth = new TableWidthUnit(600);
paragraph = cell.Blocks.AddParagraph();
paragraph.Inlines.AddRun("Cell R2C2");
Kind regards,
Kees Alderliesten

As the title says...
I've searched and searched and I cannot find any information around using Telerik.Documents.Fixed with PDF's that have XFA forms. Is this possible? And if so is there any sample code showing how to do it?
Thanks.
I do notice that the AutoFitHeight works fine when I'm dealing with only a single row without any merged cells.
I have a situation where I have a merged cell which is the combination of cells from the same row (i.e. B2-B5). When trying to use AutoFitHeight, there is no change to the row height.
Is there anything I could do?
We have a scenario where the client is wanting a combobox in a generated Word document to have the color of the combobox change depending on the option selected (these combo boxes are repeated many times in the document so the colour change is important to the client.
Screenshot shows the Combobox in use. Below is the snippet of my code. Is there a way to do what I am after?
RadFlowDocumentEditor editor = new RadFlowDocumentEditor(document);
// In my source (an html document that was converted to a Word Document higher in the code) "#ddlApplies" is where I need to place a ComboBox
// It is in a table cell.
ReadOnlyCollection<FindResult> findResults = editor.FindAll("#ddlApplies", matchCase: false, matchWholeWord: false);
foreach (var item in findResults)
{
string foundVal = item.Runs[0].Text.Replace("#", "");
// The full run name consists of "#ddl|Identifier". In Furture dev we will use the Identifier (which is put in as the alias) to identify which control this is so we can read in the document and update other datasets
//var ddlContentControl = editor.InsertStructuredDocumentTag(SdtType.ComboBox);
ComboBoxProperties properties = new ComboBoxProperties();
// Complies --- Green
// Does not Comply --- Red
// Minor Variation --- Orange
// N/A -- Grey
properties.Items.Add(new ListItem() { DisplayText = "Complies", Value = "Complies" });
properties.Items.Add(new ListItem() { DisplayText = "Does not Comply", Value = "Does not Comply" });
properties.Items.Add(new ListItem() { DisplayText = "Minor Variation", Value = "Minor Variation" });
properties.Items.Add(new ListItem() { DisplayText = "N/A", Value = "N/A" });
// Setting the alias with the identifier.
properties.Alias = foundVal.Split("|")[1];
properties.Lock = Lock.SdtLocked;
properties.Placeholder = new Placeholder() {
PlaceholderText = "Select",
ShowPlaceholder = true
};
properties.OutlineAppearance = OutlineAppearance.BoundingBoxes;
//setting the properties
properties.RunProperties.CopyPropertiesFrom(item.Runs[0].Properties);
/***
Here is where I think I need to set things. But not sure how. Client wants each option to have a different colour. They would prefer the whole cell to change, but happy if I can just get the ComboBox to change.
***/
//inserting the Tag and setting the default value
editor.MoveToInlineStart(item.Runs[0]);
editor.InsertStructuredDocumentTag(properties, item.Runs[0], item.Runs[0]);
item.Runs[0].Text = "Select";
}
How can I install the document library alone without installing a component UI library?
I just want to process PDF files
Hi all,
I got some problems when I try to read my Excel file as below:
1. It skipped the null cells, it only read data at the cells having value. For example in my case, after reading cell 2 at row 2, it jumped to cell 14.
2. It showed the error message "The given key '3' was not present in the dictionary." at cell 15
You can see my code, the Excel file I used, and the result in below
My code
@page "/testpage"
@using Telerik.Documents.SpreadsheetStreaming;
<div>
@((MarkupString)(str.ToString()))
</div>
@code {
private StringBuilder str = new StringBuilder();
protected override void OnInitialized()
{
str = ReadData();
}
private StringBuilder ReadData()
{
try
{
string filename = ".\\Template.xlsx";
using (FileStream fs = new FileStream(filename, FileMode.Open))
{
using (IWorkbookImporter workBookImporter = SpreadImporter.CreateWorkbookImporter(SpreadDocumentFormat.Xlsx, fs))
{
foreach (IWorksheetImporter worksheetImporter in workBookImporter.WorksheetImporters)
{
foreach (IRowImporter rowImporter in worksheetImporter.Rows)
{
foreach (ICellImporter cell in rowImporter.Cells)
{
if(cell.Value!= null)
{
str.Append(cell.Value.ToString());
}
else
{
str.Append("NULL");
}
str.Append(",");
}
str.Append("<br/>");
}
}
}
}
return str;
}
catch(Exception ex)
{
str.Append("<br/>");
str.Append(ex.Message);
return str;
}
}
}

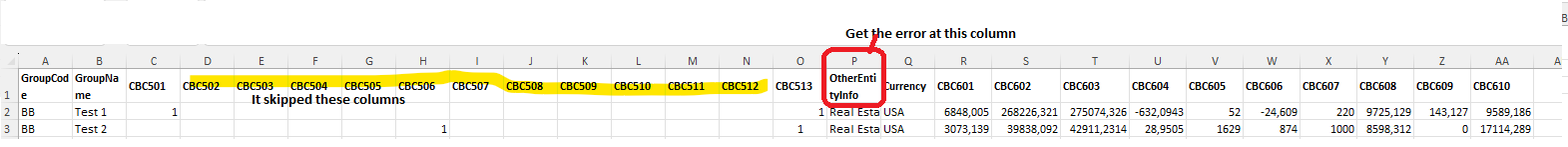

My Excel file as a picture below, I also attached my Excel in the question (Template.rar)
The result when I run
Everyone who know how to fix it, please help me.
Thank you
Hi all,
I would like to replace a temporary page content (a placeholder text) with an image in a Pdf. In order to do this, I use the telerik solution here.
My problem is that it doesn't work always : it often bugs because the placeholder text seems to be splitted in multiple text fragment.
Here is an example :
In my document : the placeholder text
The text fragments found in pdf :
And sometimes it works well:
Is there any solution to help me with this please?
Thank you,
Regards,
Adrian
