Hi,
I have a chart that displays the temperature over a period of time.
I have 12 data:
- The first 8 is 20 degrees
- The last 4 is 20.25 degrees

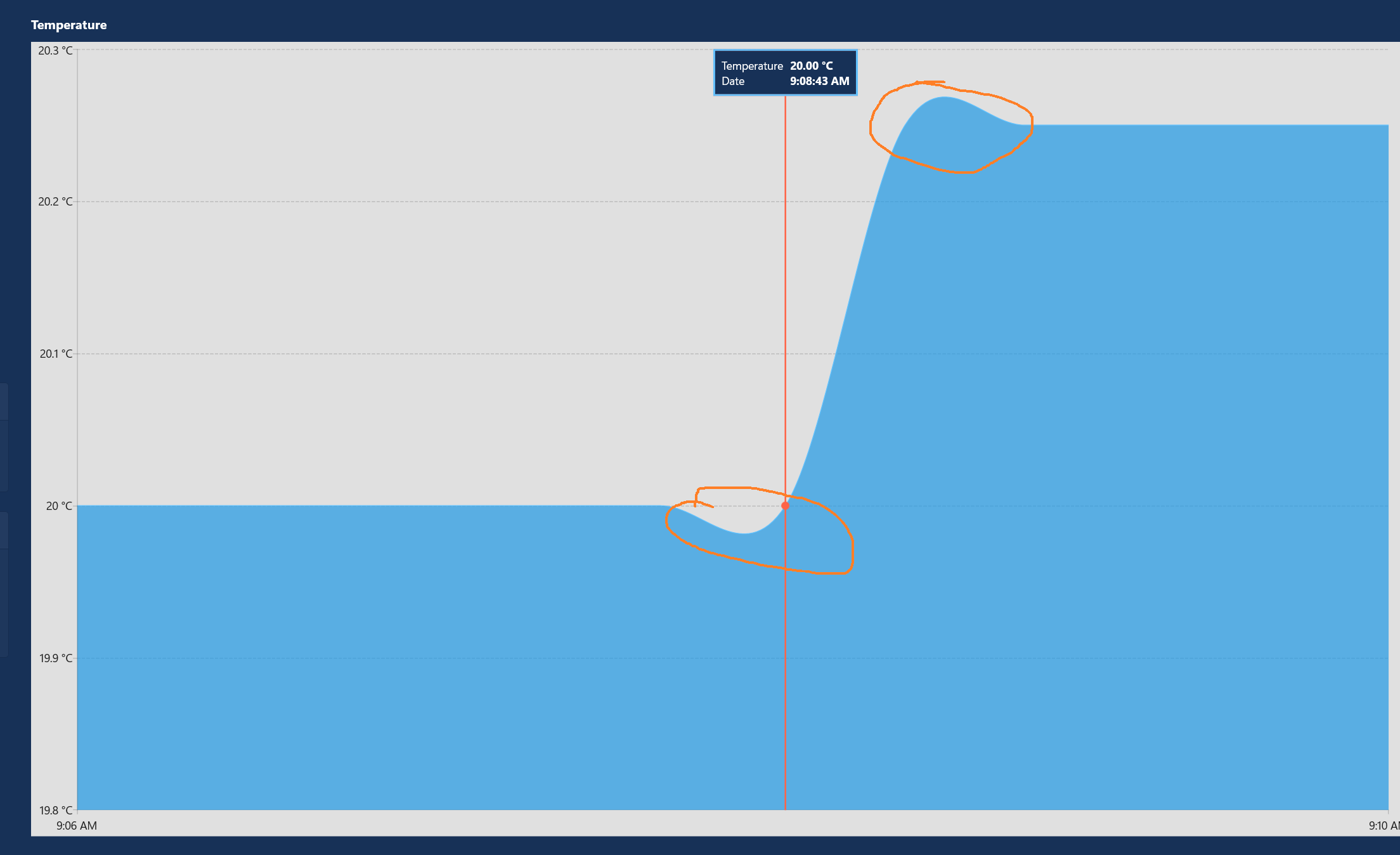

I use a SplineAreaSeries to have a smoother rendering, but as you see in the chart, it gives a misrepresentation of the reality. The chart shows a temperature under 20C and over 20.25C.

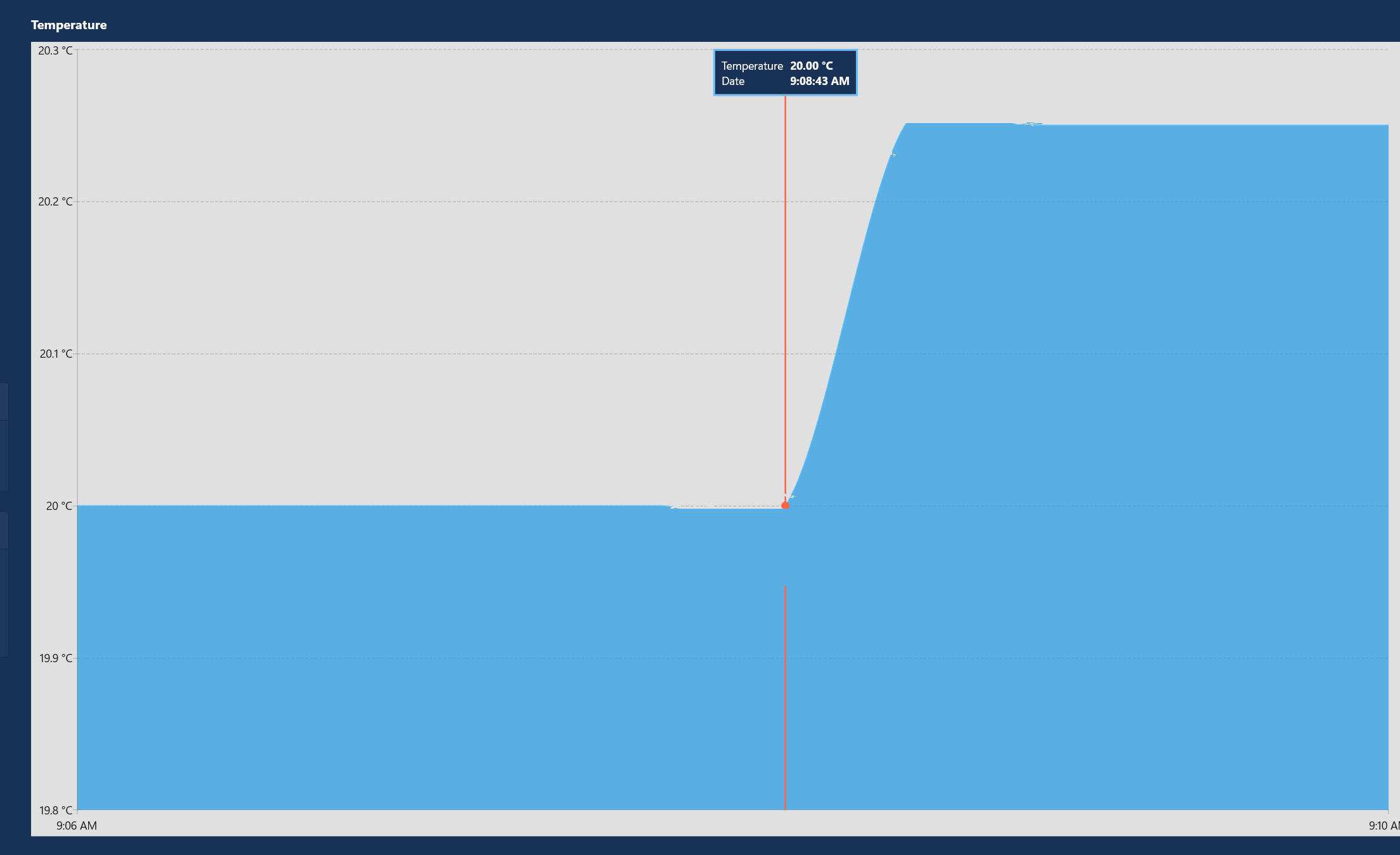

Is it by design? Please see my "Expected.png" image.
Sébastien
I have a chart that displays the temperature over a period of time.
I have 12 data:
- The first 8 is 20 degrees
- The last 4 is 20.25 degrees
I use a SplineAreaSeries to have a smoother rendering, but as you see in the chart, it gives a misrepresentation of the reality. The chart shows a temperature under 20C and over 20.25C.
Is it by design? Please see my "Expected.png" image.
Sébastien
1 Answer, 1 is accepted
0
Hello Sébastien,
The chart is using a specific algorithm for calculating its additional spline points. As any other algorithm this one has its limitations and corner cases. Probably, at some point there are data points that are very close one to another and the spline calculations are creating a bigger spline gap between them. You can control this behavior by setting the SplineTension of the series.
<telerikChart:SplineSeries SplineTension="0.4" /> Regards,
Martin Ivanov
Progress Telerik
