Chris Thierry
Top achievements
Rank 1
Rank 1
Chris Thierry
asked on 12 Jul 2011, 07:50 PM

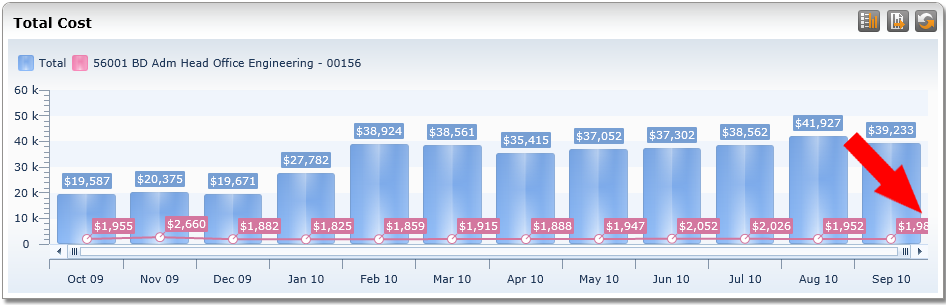

Hi, I try to use a RadChart with two series definition, one has a BarSeriesDefinition and the other one has a SplineSeriesDefinition, please take a look into the attached image, the last item for my SplineSeriesDefinition is always outside the chart, the real value is 1,982, but the chart shows always 1.98
In my code, I changed the SplineSeriesDefinition to a LineSeriesDefinition because I found an example that was using LabelSetting property, the problem is that I didn't find it in my SplineSeriesDefinition:
I tried with different ways but doesn't work. I also used this:
and I changed LayoutMode without sucess.
Any idea?
Thank you for the support!
In my code, I changed the SplineSeriesDefinition to a LineSeriesDefinition because I found an example that was using LabelSetting property, the problem is that I didn't find it in my SplineSeriesDefinition:
BarLabelSettings settings = new BarLabelSettings(); settings.Distance = 5; settings.ShowConnectors = true; settings.LabelDisplayMode = LabelDisplayMode.MidPoint; this.RadChart.DefaultView.ChartArea.SmartLabelsEnabled = true; SeriesMapping sm = new SeriesMapping(); //sm.SeriesDefinition = new SplineSeriesDefinition(); sm.SeriesDefinition = new LineSeriesDefinition(); ((LineSeriesDefinition)sm.SeriesDefinition).LabelSettings = settings; sm.SeriesDefinition.ShowItemToolTips = true; sm.SeriesDefinition.ItemToolTipFormat = "#VAL{c0}"; sm.SeriesDefinition.ItemLabelFormat = sm.SeriesDefinition.ItemToolTipFormat; sm.ItemMappings.Add(new ItemMapping("Period", DataPointMember.XCategory)); sm.ItemMappings.Add(new ItemMapping("TotalCostLine", DataPointMember.YValue)); this.RadChart.SeriesMappings.Add(sm);I tried with different ways but doesn't work. I also used this:
this.RadChartMonthlyCost.DefaultView.ChartArea.LabelFormatBehavior = LabelFormatBehavior.HumanReadable; this.RadChartMonthlyCost.DefaultView.ChartArea.AxisX.LayoutMode = AxisLayoutMode.Auto;and I changed LayoutMode without sucess.
Any idea?
Thank you for the support!
3 Answers, 1 is accepted
0
Hi Chris Thierry,
Unfortunately this is a specific scenario, in which we are aware an issue exists. Let me clarify about the specifics. When there is a rather flat Line or Spline series, as in your example, with long(ish) labels such a problem with clipping a part of a label may occur when the Width of the chart is not sufficient. Our developers are aware of this issue and will look into resolving it for the future versions of the control.
There are a couple of work-arounds that you may find applicable, though. Firstly, of course, increasing the width of the chart, if possible, so that there is enough space for all labels. Another one would be associating the Line/Spline series with a secondary axis ( which has a different Y axis range than the original Y axis ), so that the series would not be that flat and labels would have sufficient space.
Hope this helps. Please, excuse us for the inconvenience caused.
Kind regards,
Nikolay
the Telerik team
Unfortunately this is a specific scenario, in which we are aware an issue exists. Let me clarify about the specifics. When there is a rather flat Line or Spline series, as in your example, with long(ish) labels such a problem with clipping a part of a label may occur when the Width of the chart is not sufficient. Our developers are aware of this issue and will look into resolving it for the future versions of the control.
There are a couple of work-arounds that you may find applicable, though. Firstly, of course, increasing the width of the chart, if possible, so that there is enough space for all labels. Another one would be associating the Line/Spline series with a secondary axis ( which has a different Y axis range than the original Y axis ), so that the series would not be that flat and labels would have sufficient space.
Hope this helps. Please, excuse us for the inconvenience caused.
Kind regards,
Nikolay
the Telerik team
