This is a migrated thread and some comments may be shown as answers.

Show lines not working.

7 Answers 37 Views
TreeView
This is a migrated thread and some comments may be shown as answers.
This question is locked. New answers and comments are not allowed.
shilpa
Top achievements
Rank 1
shilpa asked on 31 Jan 2011, 08:36 AM
Hi,

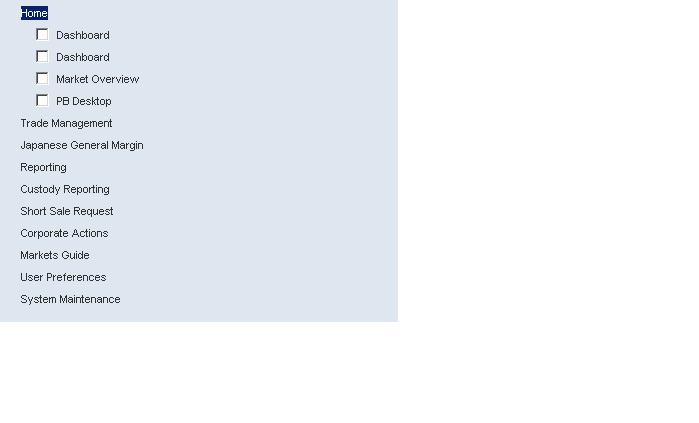

I have binded the treeview as following. Showlines() doesn't show any lines in treeview and expand\collapse image also dont come up. Please help

<%

= Html.Telerik().TreeView()
.Name(
"TreeView1")
.ShowLines(
true)
.ShowCheckBox(
true)
.ClientEvents(events => events
.OnChecked(
"onChecked")
.OnLoad(
"onLoad")
)
.BindTo(
SiteMap.Provider.RootNode.ChildNodes, mappings =>
{
mappings.For<
SiteMapNode>(binding => binding
.ItemDataBound((item, navitem) =>
{
item.Text = navitem.Title;
item.Value = navitem.Description;
if (item.Parent == null)
{
item.Checkable =
false;
}
if(ViewData["Fn_Id"] != null && item.Value.Contains(ViewData["Fn_Id"].ToString()))
{
item.Checked =
true;
item = item.Parent;
while(item!=null)
{
item.Expanded =
true;
item = item.Parent;
}
}
})
.Children(navitem => navitem.ChildNodes)
.Children(childitem => childitem.ChildNodes));
})
%>

7 Answers, 1 is accepted

Sort by
0
Lasse
Top achievements
Rank 1
answered on 25 Apr 2012, 02:25 PM
Any news on this?

Seems like documentation is wrong as well: TreeView Documentation.
0
Dimo
Telerik team
answered on 25 Apr 2012, 04:20 PM
Hello,

It looks like the skin images and / or the skin stylesheet are not loaded.

Greetings,
Dimo
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the Telerik Extensions for ASP.MET MVC, subscribe to their blog feed now.
0
Ross
Top achievements
Rank 1
answered on 28 May 2012, 05:55 PM
I believe there is a bug in the TreeView.  When I explicitly set ShowLines(false), I see that showLines:false is included in the jQuery initialization script.  However if I explicitly set ShowLines(true), then showLines:true is not included in the initialization script.

I can see that WriteInitializationScript() method does the following:

      if (!this.ShowLines)
        objectWriter.Append("showLines", this.ShowLines);


0
Dimo
Telerik team
answered on 29 May 2012, 07:51 AM
Hi Ross,

Properties with default values are not serialized, because this is not necessary. Is there a problem with the component functionality?

Regards,
Dimo
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the Telerik Extensions for ASP.MET MVC, subscribe to their blog feed now.
0
Ross
Top achievements
Rank 1
answered on 29 May 2012, 03:00 PM
Ah, I thought that the default behaviour was to not show lines, but it sounds like you are saying that the default is to show lines.  I can't get the lines to appear at all.  Furthermore the lines do not appear in any of the online demos:

http://demos.telerik.com/aspnet-mvc/treeview

Thanks,

Ross.
0
Dimo
Telerik team
answered on 29 May 2012, 04:06 PM
Hello Ross,

Some themes are designed to resemble other existing themes (e.g. Windows Vista operating system) and the TreeView does not have lines at all. However, you can use a skin that has them, for example:

http://demos.telerik.com/aspnet-mvc/treeview?theme=simple

All the best,
Dimo
the Telerik team
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the developers working on the Telerik Extensions for ASP.MET MVC, subscribe to their blog feed now.
0
Ross
Top achievements
Rank 1
answered on 30 May 2012, 02:54 PM
Thanks, it worked once I switched themes!
