Selector buttons out of screen

9 Answers 12 Views
DatePicker
This is a migrated thread and some comments may be shown as answers.
Miroslav
Top achievements
Rank 1
Miroslav asked on 23 Apr 2016, 06:49 PM

Hello,

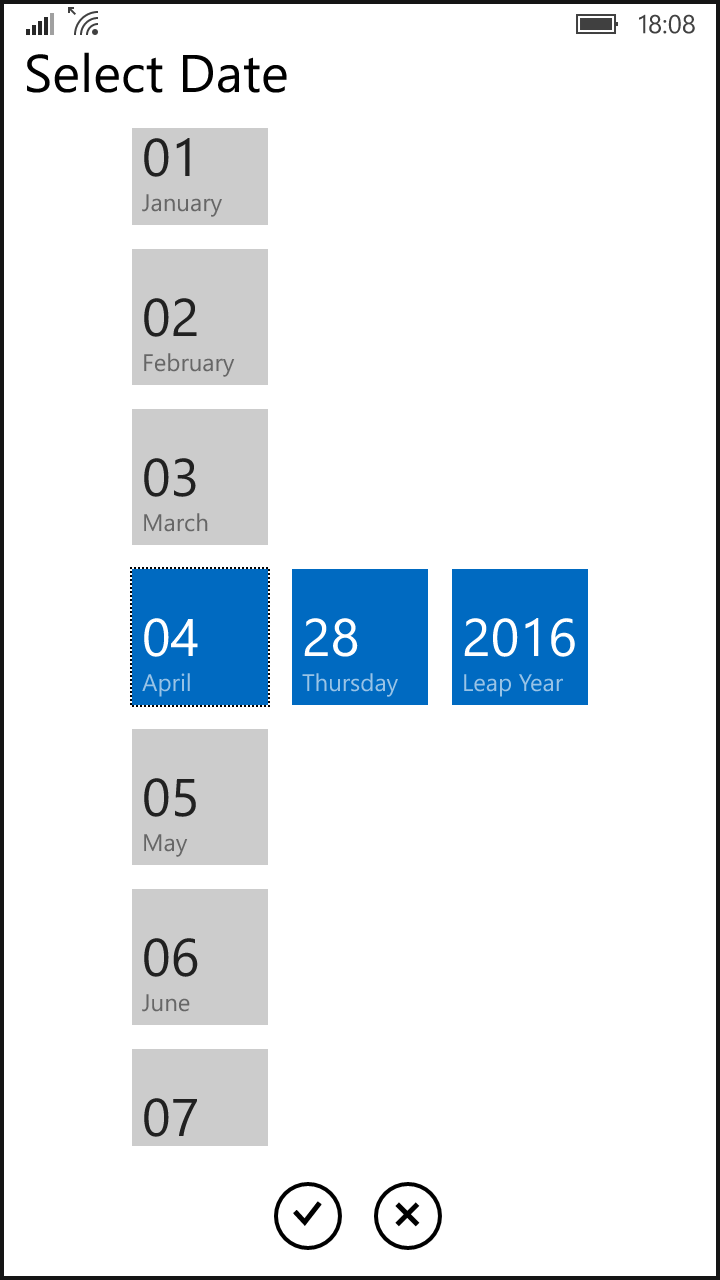

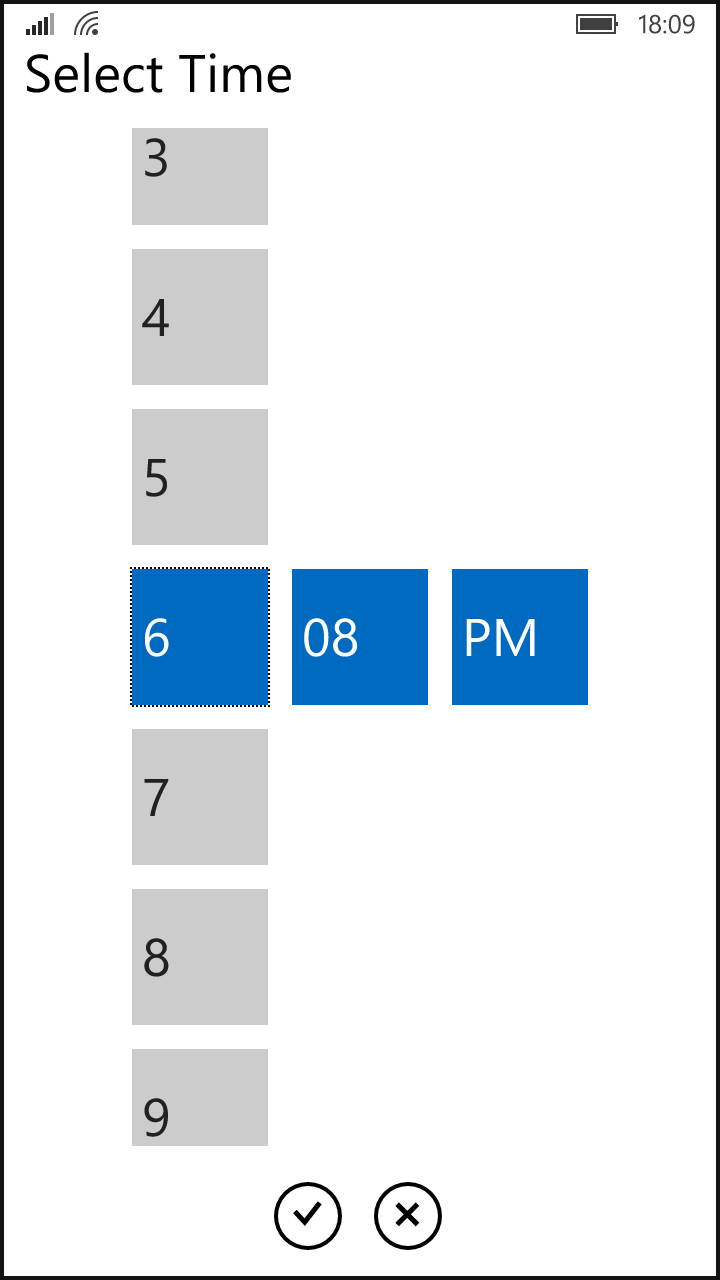

I have problem with accessing selector buttons in DatePicker and TimePicker too. When I'm running my app in emulator, than I see buttons. But when I run app on my test device (Lumia 550), buttons are hidden with navigation bar. How can I set DatePicker for soft navigation bar?

Best Regards

Miroslav Mareš

9 Answers, 1 is accepted

Sort by
0
Ivaylo Gergov
Telerik team
answered on 27 Apr 2016, 04:55 PM
Hi,

As I am not completely sure what exactly you are trying to achieve, could you please elaborate more or send me some project or screenshot with additional explanation?

I am looking forward to your reply.

Regards,
Ivaylo Gergov
Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
Miroslav
Top achievements
Rank 1
answered on 28 Apr 2016, 04:15 PM

Hello,

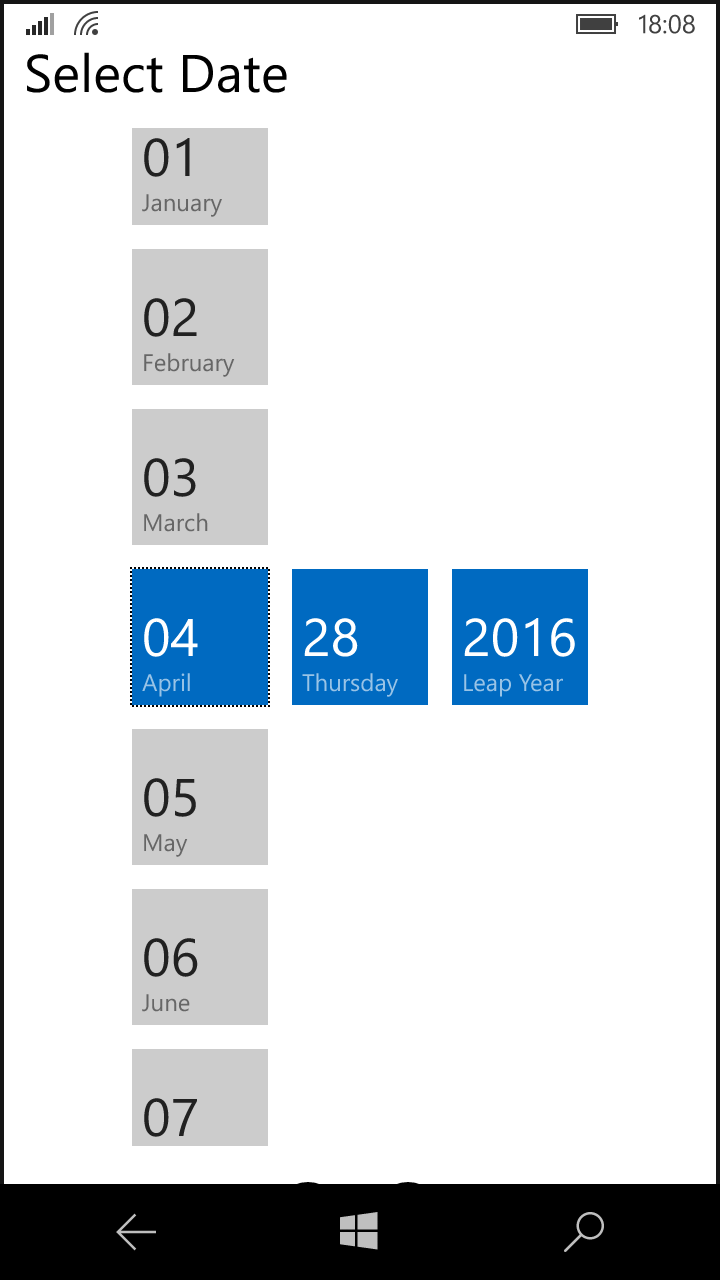

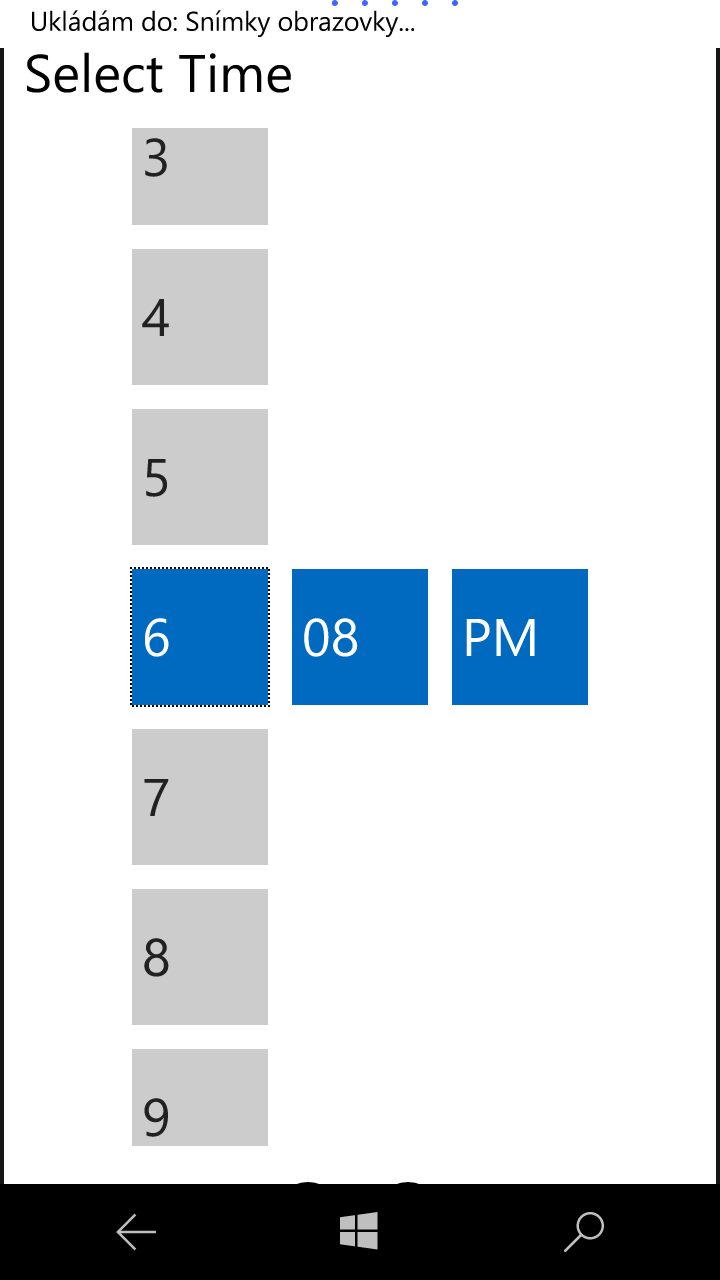

I send you screenshots from my phone Lumia 550.

Best Regards

Miroslav Mareš

0
Ves
Telerik team
answered on 03 May 2016, 12:16 PM
Hi Miroslav,

I am afraid we are not able to reproduce the issue at hand. Still, here is a suggestion -- you can attach to Opened event of RadDatePicker and use ApplicationView.PreferredLaunchWindowingMode property. Set it to ApplicationViewWindowingMode.FullScreen. In addition, you might want to set it back to Auto when RadDatePicker closes.

Best regards,
Ves
Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
Miroslav
Top achievements
Rank 1
answered on 04 May 2016, 06:44 PM

Hello,

this workaround not worked. Result is still same as on screens, what I posted before.

Best Regards

Miroslav Mareš

0
Ivaylo Gergov
Telerik team
answered on 10 May 2016, 07:40 AM
Hi Miroslav,

We will need some more time to investigate this and I will get back to you as soon as we have some resolution or a workaround.


Regards,
Ivaylo Gergov
Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
Trevor
Top achievements
Rank 1
answered on 22 Jul 2016, 02:07 PM

Any update on this?  I'm experiencing it on a Lumia 550 and have clients who are experiencing it too.

I have gotten around it by changing the entire app to full screen when running on Windows 10 Mobile like this:

if (Windows.System.Profile.AnalyticsInfo.VersionInfo.DeviceFamily == "Windows.Mobile")
{
ApplicationView.TryEnterFullScreenMode();
}

I don't think this is a great solution though.

Thanks,

Greg

0
Lance | Manager Technical Support
Telerik team
answered on 22 Jul 2016, 05:01 PM
Hi Greg,

This is unrelated to Telerik controls specifically, but rather it's a general Windows Mobile programming scenario you need to account for when your app is running on a device that does not use hardware buttons.

Fortunately, there is a way you can detect and manage this using a little logic (usually put within your root frame). Here is an example:

First, hook into the VisibleBoundsChanged event:

var appView = ApplicationView.GetForCurrentView();
appView.VisibleBoundsChanged += VisibleBoundsChanged;

Then in the event handler, detect if the on-screen buttons are visible, if they are determine the occulded rect and adjust the height of your UI. Here's an example:

private void VisibleBoundsChanged(ApplicationView sender, object args)
        {
            if (Windows.Foundation.Metadata.ApiInformation.IsTypePresent("Windows.UI.ViewManagement.StatusBar"))
            {
                var statusBar = StatusBar.GetForCurrentView();
                var appView = ApplicationView.GetForCurrentView();
                var inputPane = InputPane.GetForCurrentView();

                double newHeight;
                double newWidth;

                var orientation = DisplayInformation.GetForCurrentView().CurrentOrientation;

                Debug.WriteLine($"CurrentOrientation: {orientation}");

                switch (orientation)
                {
                    case DisplayOrientations.None:
                        break;
                    case DisplayOrientations.Landscape:
                        newWidth = appView.VisibleBounds.Width +
                            (statusBar?.OccludedRect.Width) ?? 0 +
                            (inputPane?.OccludedRect.Width) ?? 0;

                        if ((inputPane?.OccludedRect.Width ?? 0) <= 0 || newWidth < this.Width)
                            this.Width = newWidth;

                        //NOTE: If you see that the Frame is centered and there is space at the top and the bottom is still clipped, you may need to shift it over
                        this.HorizontalAlignment = Windows.UI.Xaml.HorizontalAlignment.Left;
                        this.VerticalAlignment = Windows.UI.Xaml.VerticalAlignment.Top;
                        break;
                    case DisplayOrientations.Portrait:
                        newHeight = appView.VisibleBounds.Height +
                            (statusBar?.OccludedRect.Height) ?? 0 +
                            (inputPane?.OccludedRect.Height) ?? 0;

                        if ((inputPane?.OccludedRect.Height ?? 0) <= 0 || newHeight < this.Height)
                            this.Height = newHeight;

                        this.VerticalAlignment = Windows.UI.Xaml.VerticalAlignment.Top;
                        this.HorizontalAlignment = Windows.UI.Xaml.HorizontalAlignment.Stretch;
                        break;
                    case DisplayOrientations.LandscapeFlipped:
                        newWidth = appView.VisibleBounds.Width +
                            (statusBar?.OccludedRect.Width) ?? 0 +
                            (inputPane?.OccludedRect.Width) ?? 0;

                        if ((inputPane?.OccludedRect.Width ?? 0) <= 0 || newWidth < this.Width)
                            this.Width = newWidth;

                        this.HorizontalAlignment = Windows.UI.Xaml.HorizontalAlignment.Right;
                        this.VerticalAlignment = Windows.UI.Xaml.VerticalAlignment.Top;
                        break;
                    case DisplayOrientations.PortraitFlipped:
                        newHeight = appView.VisibleBounds.Height +
                            (statusBar?.OccludedRect.Height) ?? 0 +
                            (inputPane?.OccludedRect.Height) ?? 0;

                        if ((inputPane?.OccludedRect.Height ?? 0) <= 0 || newHeight < this.Height)
                            this.Height = newHeight;

                        this.VerticalAlignment = Windows.UI.Xaml.VerticalAlignment.Bottom;
                        this.HorizontalAlignment = Windows.UI.Xaml.HorizontalAlignment.Stretch;
                        break;
                    default:
                        break;
                }
            }
        }



We are active investigating if this is something we can add into the product, however it is unlikely we will add  this approach affects the entire application, not just the modal for the picker.

Once the engineering team has completed the investigation into how we can mitigate this just for the UI for UWP pickers, they will come back and update this thread.

Thank you for your patience and understanding while we investigate this further.

Regards,
Lance | Tech Support Engineer, Sr.
Telerik by Progress
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
John Strever
Top achievements
Rank 1
answered on 23 Aug 2016, 12:16 AM

A suggestion to Telerik Engineering...(since it seems to be on all windows phones now)



Can you set a setting in the control that simply shortens the height of the control by 100px, and center it.... that would certainly do it and be a super fast super easy fix.

0
Tsvyatko
Telerik team
answered on 24 Aug 2016, 02:16 PM
Hi John,

Thank you for the suggestions. With the upcoming Beta (due in the the next couple of weeks) we have addressed this issue. Now, the DatePicker popup opens in the visible screen bounds.

Please excuse us for the delay on this issue.

Regards,
Tsvyatko
Telerik by Progress
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
