ScheduleView performance issue

1 Answer 79 Views
ScheduleView
This is a migrated thread and some comments may be shown as answers.
Vasiliy
Top achievements
Rank 1
Vasiliy asked on 02 Dec 2012, 11:39 AM
Dear Sir/Madam

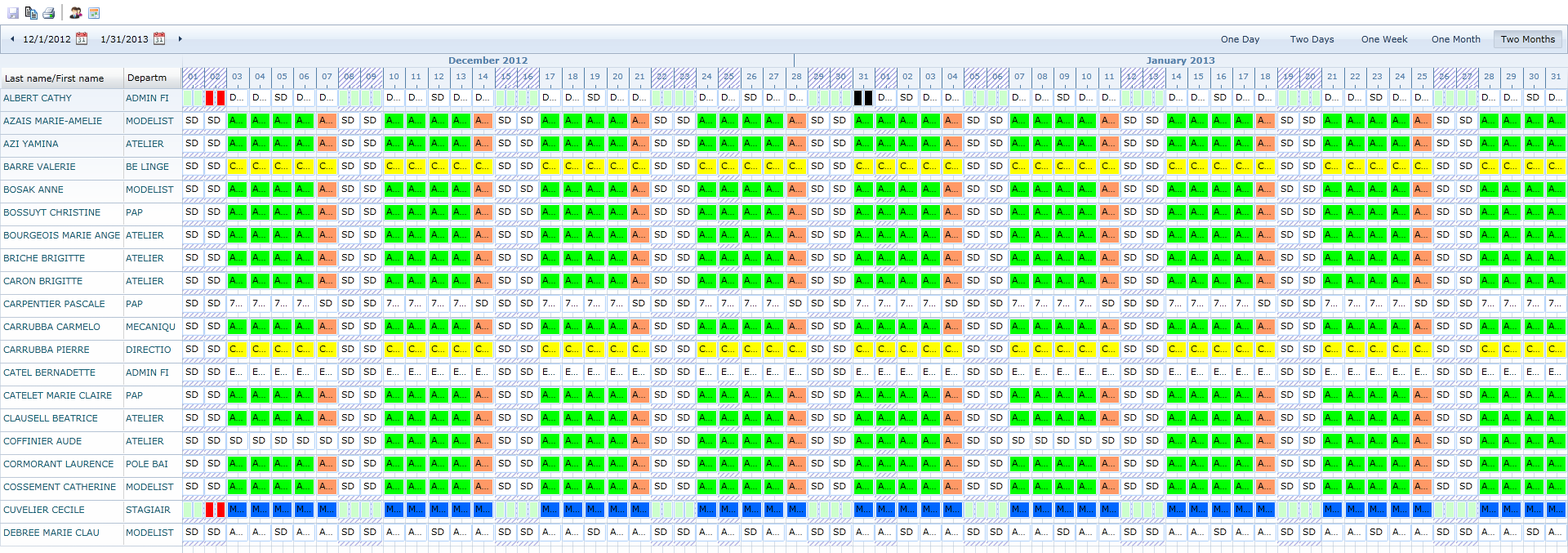

I have an issue with displaying longer periods in the scheduler control. The data is already paginated, so I don't have more than 50 records per screen (see GUI.png  attached)

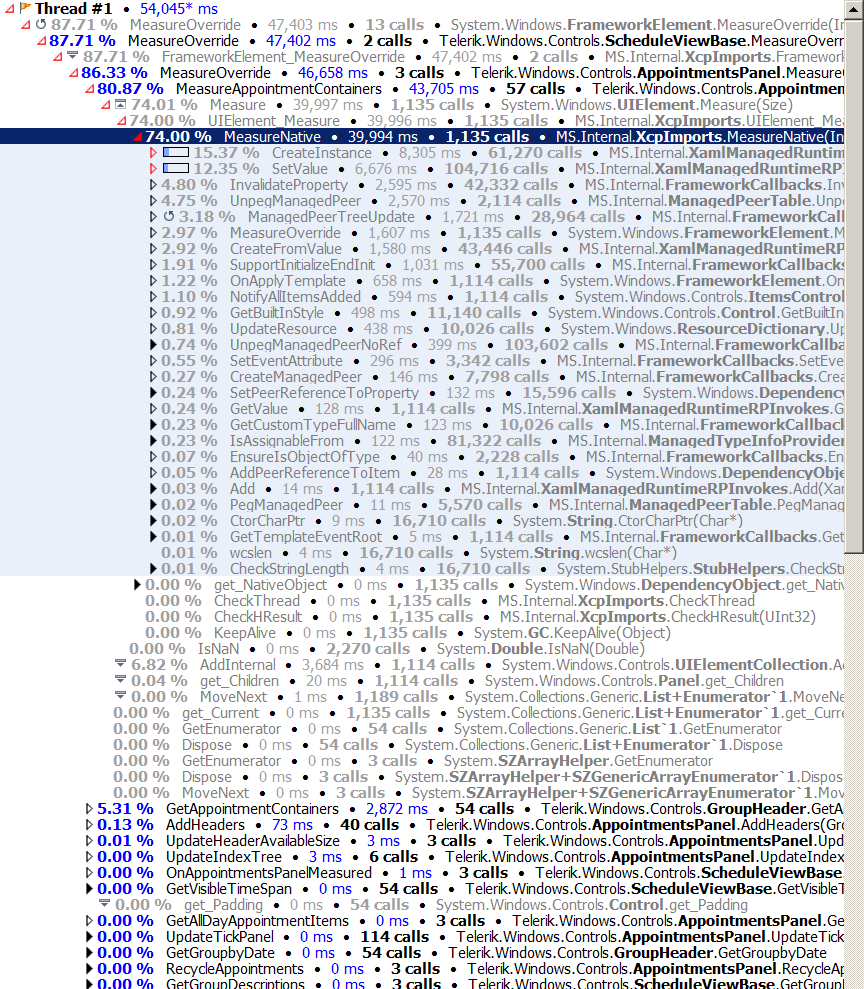

However selecting One month or Two month view is causing significant delays. I have profiled the application and I see that most of the time is taken by MS.Internal.XcpImports.MeasureNative(IntPtr, Single, Single) - please see profiling.png attached.

Please advice me on a potential cause of the issue. I can provide any kind of additional information if needed.
Thanks in advance.

1 Answer, 1 is accepted

Sort by
0
Miroslav Nedyalkov
Telerik team
answered on 05 Dec 2012, 09:07 AM
Hello Vasiliy,

From the screenshot you provided it seems you have a lot of appointments visible at the same time - I counted about 1200 appointments. This generates a lot of visual elements and so many elements in the VisualTree makes the layout really slow. The only thing I would suggest you is to change the MinTimeRulerExtent to some value big enough to show a horizontal scroll bar. This will activate the ScheduleView UI virtualization and will greatly improve the performance. I would advise you to keep the appointments visible at the same time to not exceed 300.

Hope this helps.

Regards,
Miroslav Nedyalkov
the Telerik team
